• Model NO.：DXJ
• Condition：New
• Max Lifting Tons：15t
• Max Working Stroke：630mm
• Using Way：Pit Use
• Transport Package：Export Plywood Case
• Specification：ISO9001
• Trademark：Haolida
• Origin：Shandong, China
• HS Code：8425429000
• Production Capacity：200sets Per Year

Basic Info.

Model NO. DXJ Condition New Max Lifting Tons 15t Max Working Stroke 630mm Using Way Pit Use Transport Package Export Plywood Case Specification ISO9001 Trademark Haolida Origin Shandong, China HS Code 8425429000 Production Capacity 200sets Per Year

Product Description

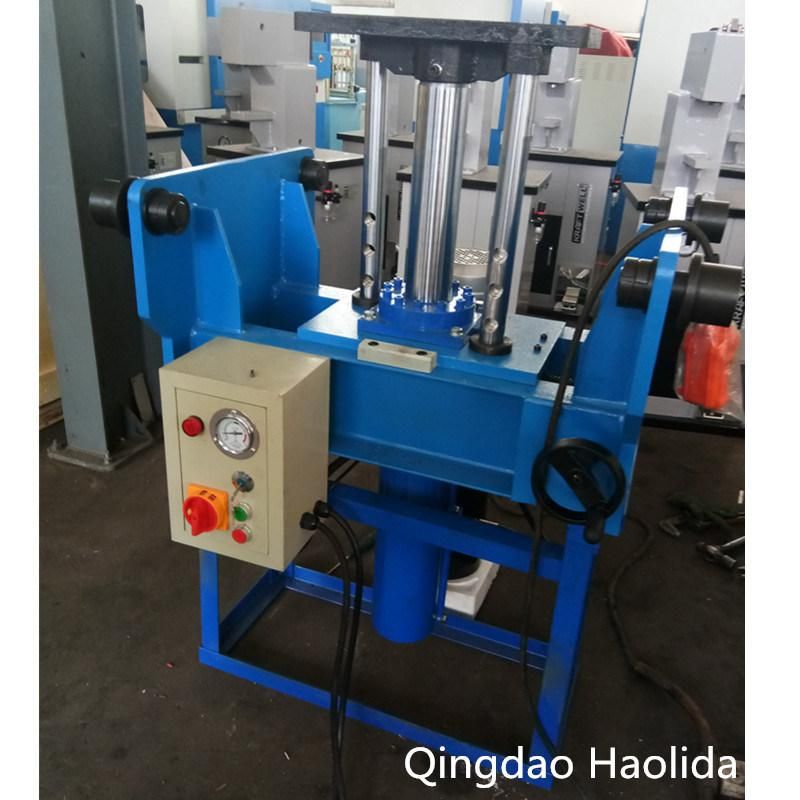

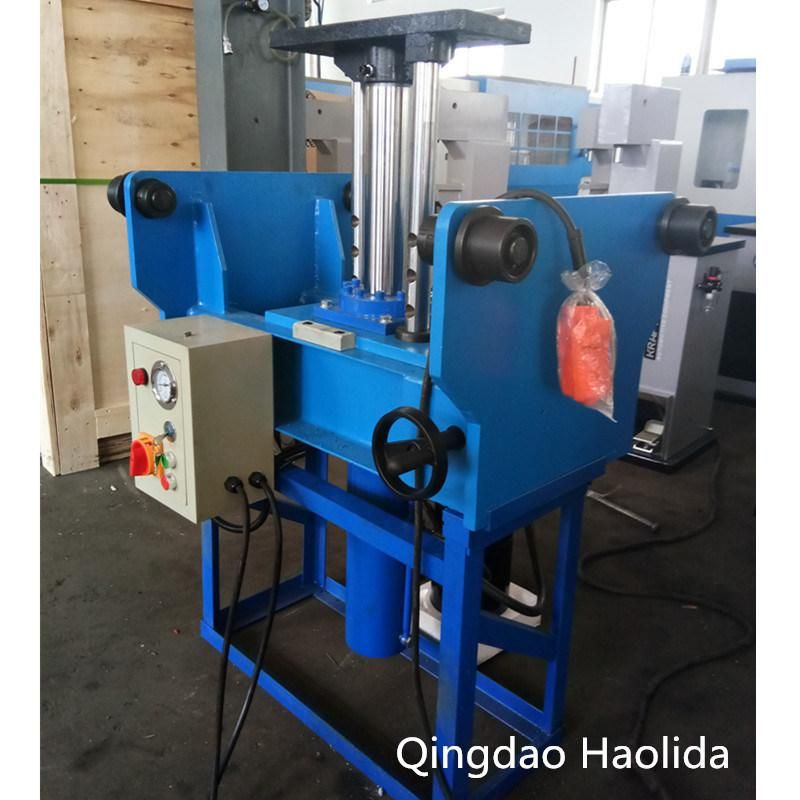

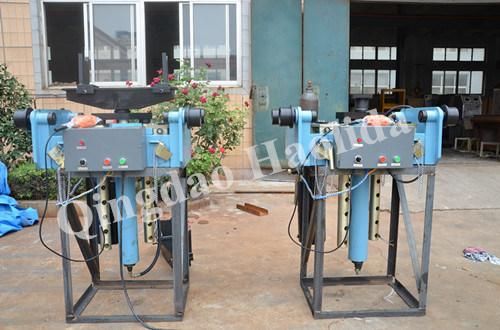

                                         Electric suspension pit lift

1.Function Introduction
Hydraulic drive and stable lift;
Insured pin;
With quick falling handle;
Longitudinally move the cushion for positioning; Lateral movement with manual locking positioning;
Equipped with all special brackets according to the requirements of users;

2. Technical Parameter
Maximum lifting weight:150KN
Maximum lifting height: 800mm
Minimum height (away from the surface of guide ways): 170mm
Working stroke: 630mm
Applicable clearance (Inner distance of guide ways):   950~1050mm

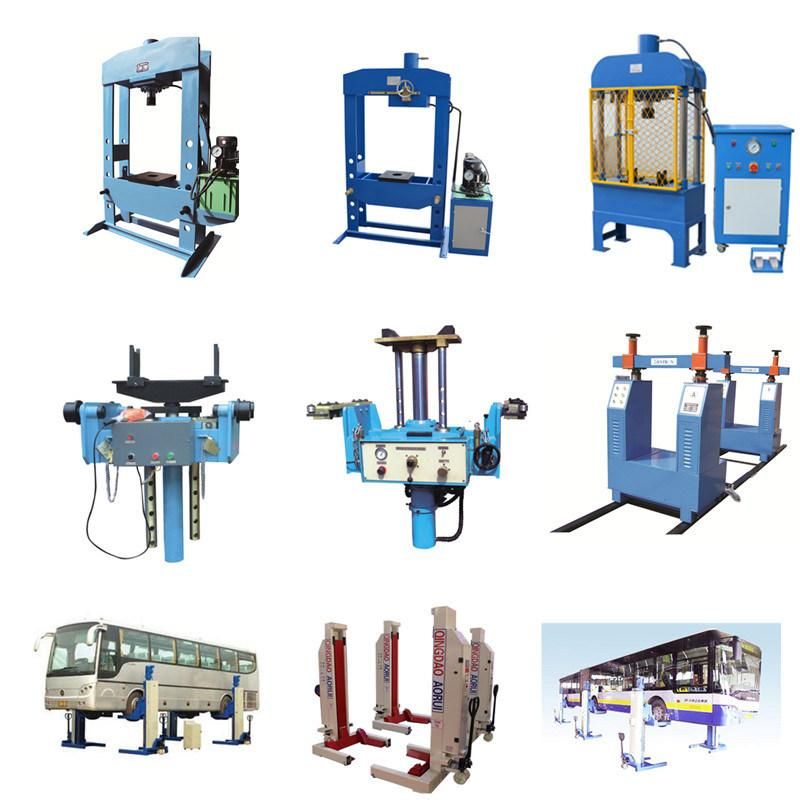

other kinds of lift:
