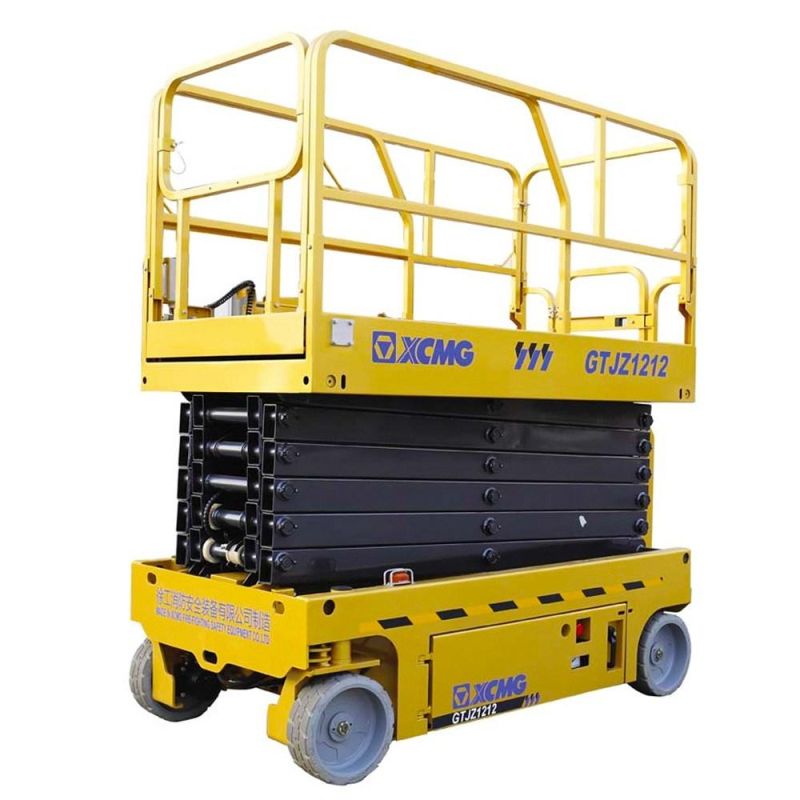

Hydraulic Drive Self Propelled 12m Scissor Lift Gtjz1212
XCMG E-Commerce Inc.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：320kg
- Moves：Self-propelled
- Driven Type：AC
- Running Mode：Moving
Base Info
- Model NO.：Gtjz1212
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Type：Telescoping Lift
- Trademark：XCMG
- Origin：Jiangsu, China
- Production Capacity：10000 Unit,Units Per Month
Description
ItemUnit Parameters Overall length mm 2485 Overall width mm 1190 Overall height mm 2600 Maximum platform height m 11.8 Size of platform mm 2276×1120×1254 Platform extension length mm 900 Minimum turning radius m 0 Wheel base mm 1871 Minimum ground clearance (pot hole protector rising/falling) mm 101/20 The total mass in driving state kg 3150 Rated load kg 320 Load of extension platform kg 115 Lifting speed of working platform s 61~71 Falling speed of working platform s 43~58 Driving speed (high) km/h 3.2 Driving speed (low) km/h 0.8 Maximum driving platform height m 11.8 Maximum gradeability 25% Battery V/(Ah) 4×12(300) Charger A 30 Incline alarming angle 1.5° (both sides) 3° (front and back)
