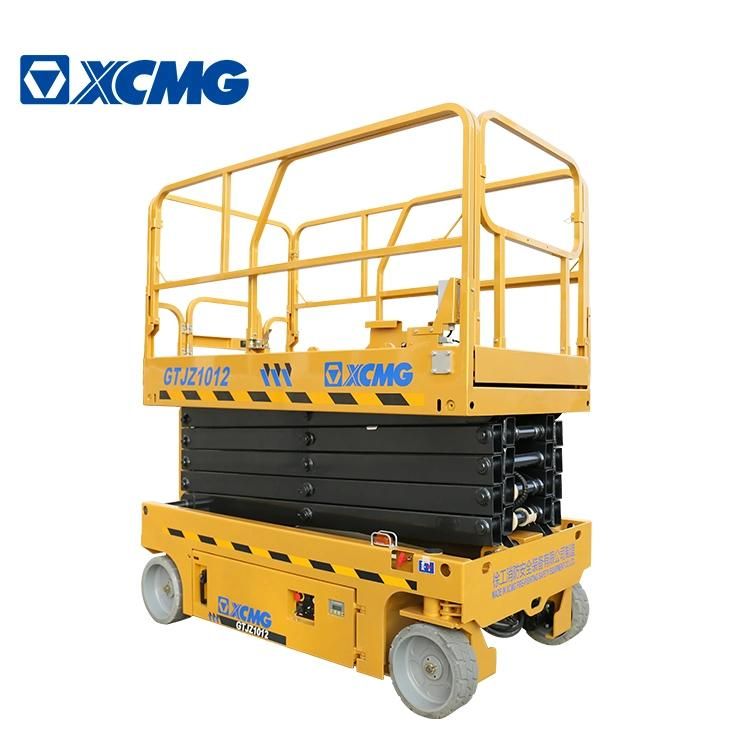

XCMG Gtjz1012 10m Mobile Electric Remote Aerial Work Platform Scissor Lift Table
XCMG E-Commerce Inc.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Self-propelled
- Driven Type：Hydraulic
- Running Mode：Moving
Base Info
- Model NO.：GTJZ1012
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Applicable Industries：Construction Works
- Table Size：2276*1120*1254(mm)
- Weight：3000kg
- Warranty：2 Years
- After-Sales Service Provided：Online Support
- Specification：2485*1170*2472(mm)
- Trademark：XCMG
- Origin：Jiangsu, China
- Production Capacity：10000,Year
Description
ItemUnit Parameters Overall length mm 2485 Overall width mm 1170 Overall height mm 2472 Maximum platform height m 10 Size of platform mm 2276×1120×1254 Platform extension length mm 900 Minimum turning radius m 0 Wheel base mm 1871 Minimum ground clearance mm 101/20 (pot hole protector rising/falling) The total mass in driving state kg 3000 Rated load kg 320 Load of extension platform kg 115 Lifting speed of working platform s 56~66 Falling speed of working platform s 43~58 Driving speed (high) km/h 3.5 Driving speed (low) km/h 0.8 Maximum driving platform height m 10 Maximum gradeability 25% Battery V/(Ah) 4×6(240) Charger A 30 Tyre specification Traceless solid core 38.1cm×12.7cm Incline alarming angle 1.5° (both sides) 3° (front and back)

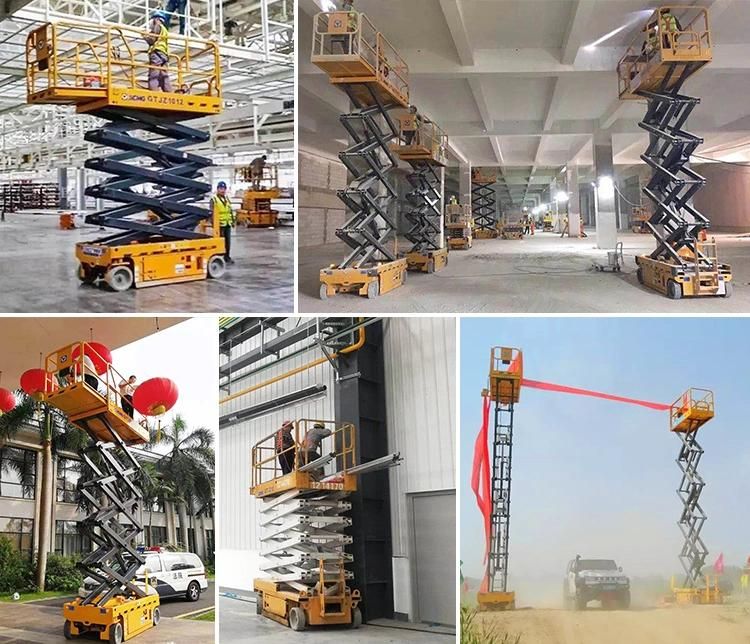

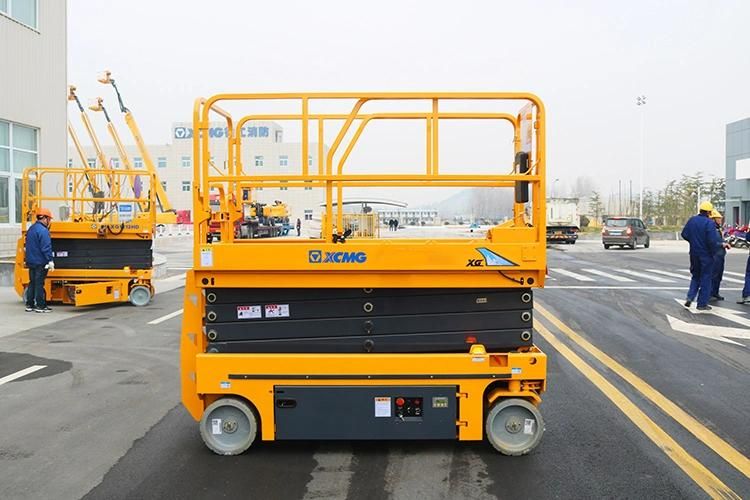

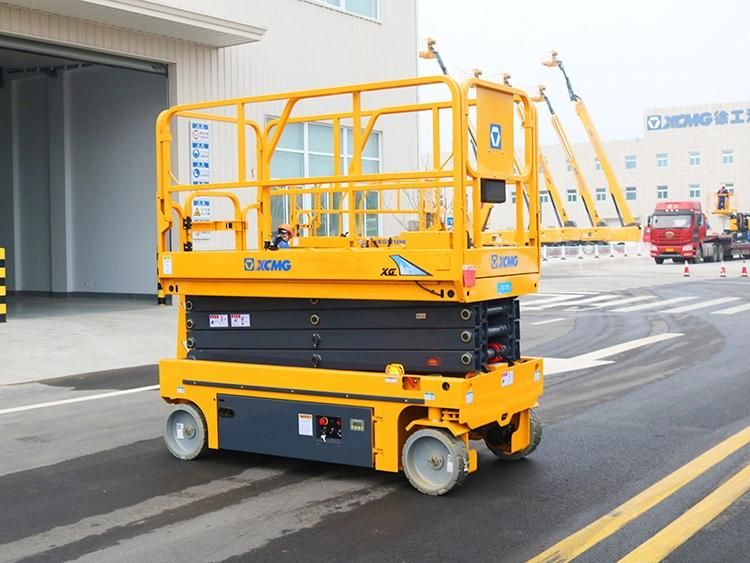

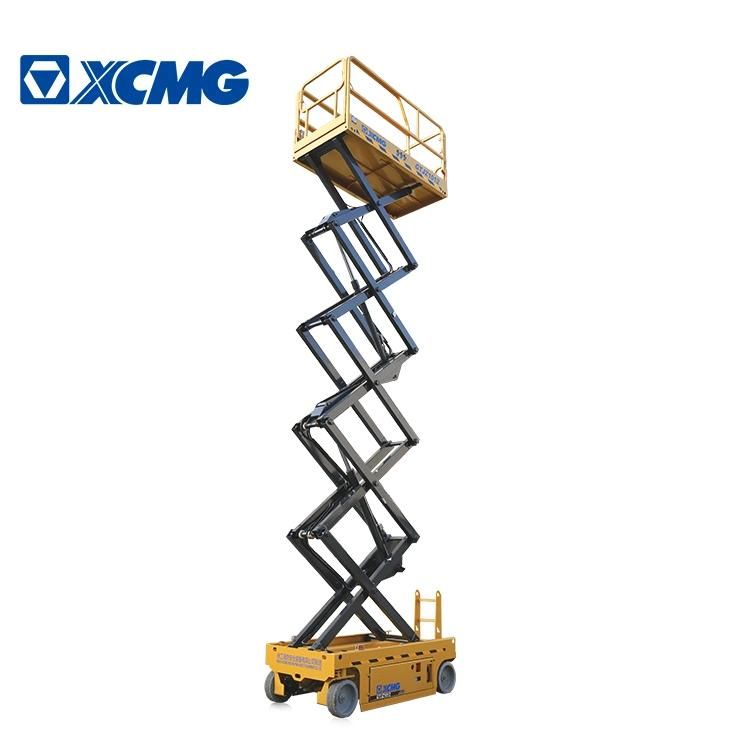

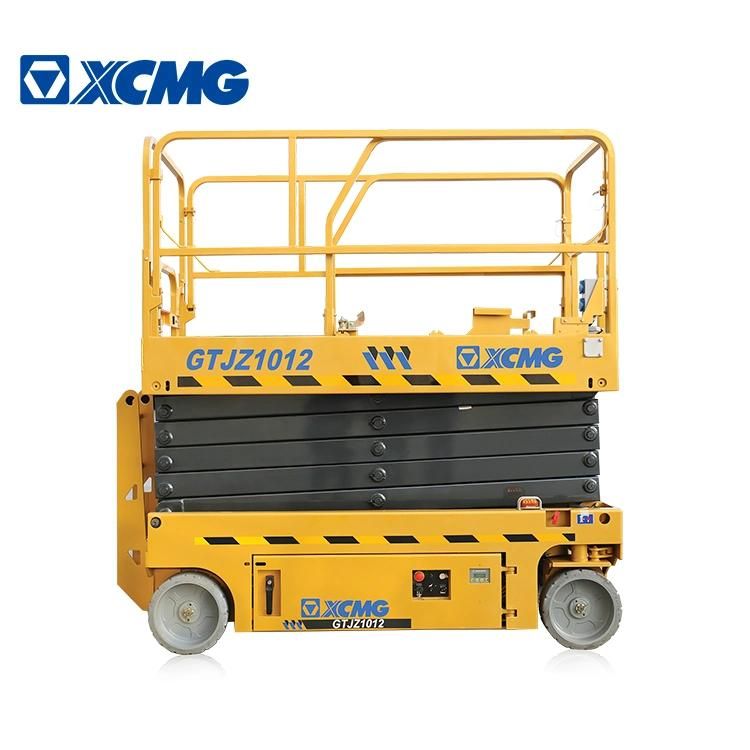

product show
