• Model NO.：ATB0.2-16
• Feature：Explosion-Proof
• Certification：GS, CE, ISO 9001
• Power：2.2kw
• Min. Lifting Height：2.1m
• Max.Lifting Height：16m
• Max.Working Height：18m
• Outreach：9m
• Lift Power：AC,Battery, or Petrol Engin or Bi-Engi
• Platform Size：900*700mm
• Load Capacity：200kg
• Moving：by Car or Truck Tow
• Package：Film Packed and Load in Container
• Transport Package：Stretch Film & Plywood Case
• Specification：7200*1800*2400mm
• Trademark：MORN LIFT
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：10 Units, Month

Basic Info.

Model NO. ATB0.2-16 Feature Explosion-Proof Certification GS, CE, ISO 9001 Power 2.2kw Min. Lifting Height 2.1m Max.Lifting Height 16m Max.Working Height 18m Outreach 9m Lift Power AC,Battery, or Petrol Engin or Bi-Engi Platform Size 900*700mm Load Capacity 200kg Moving by Car or Truck Tow Package Film Packed and Load in Container Transport Package Stretch Film & Plywood Case Specification 7200*1800*2400mm Trademark MORN LIFT Origin Shandong, China HS Code 842890 Production Capacity 10 Units/ Month

Product Description

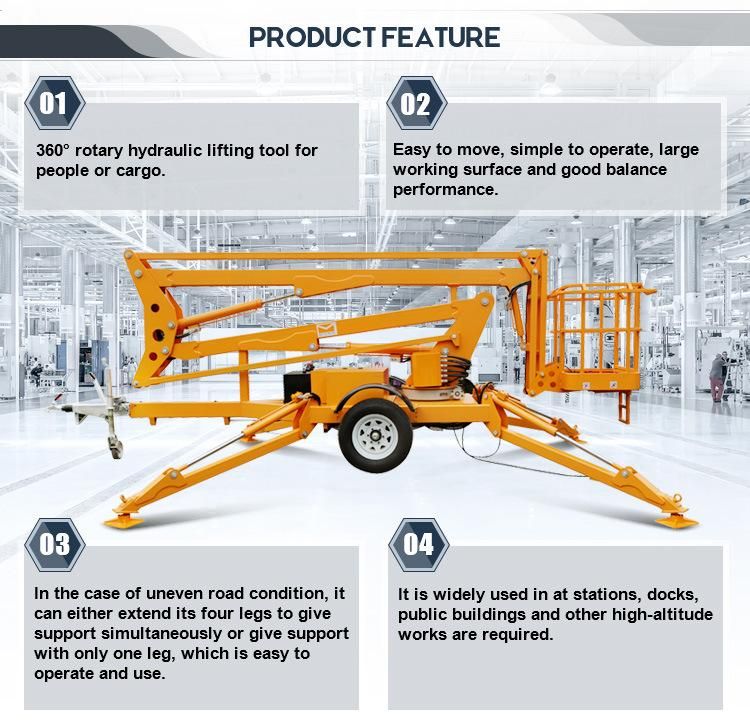

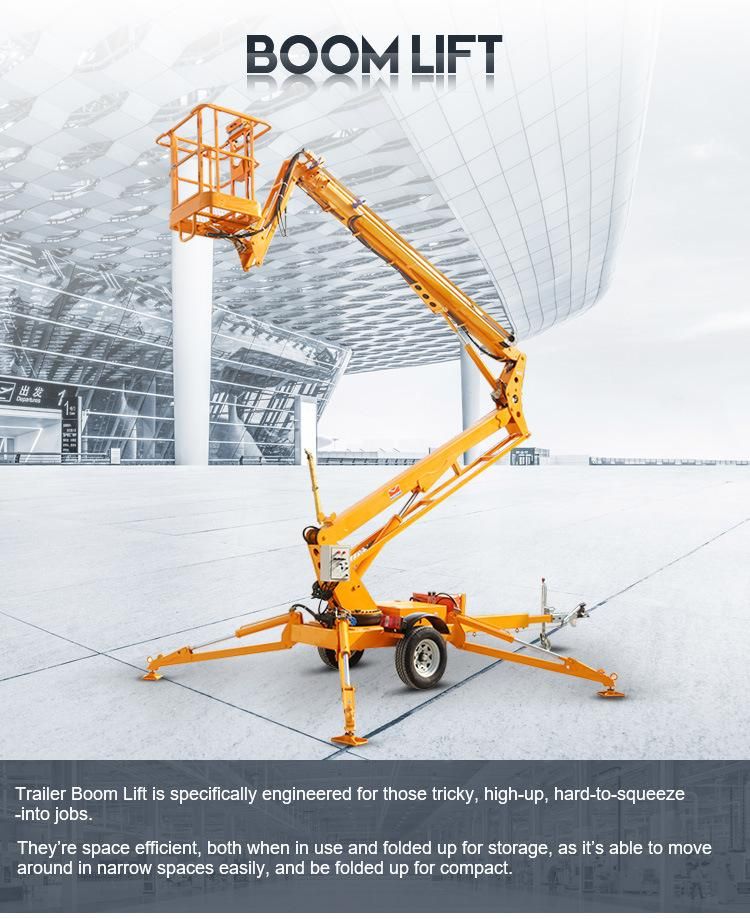

Trailer Boom Lift is specifically engineered for those tricky, high-up, hard-to-squeeze-into jobs.
They're space efficient, both when in use and folded up for storage, as it's able to move around in narrow spaces easily, and be folded up for compact storage.

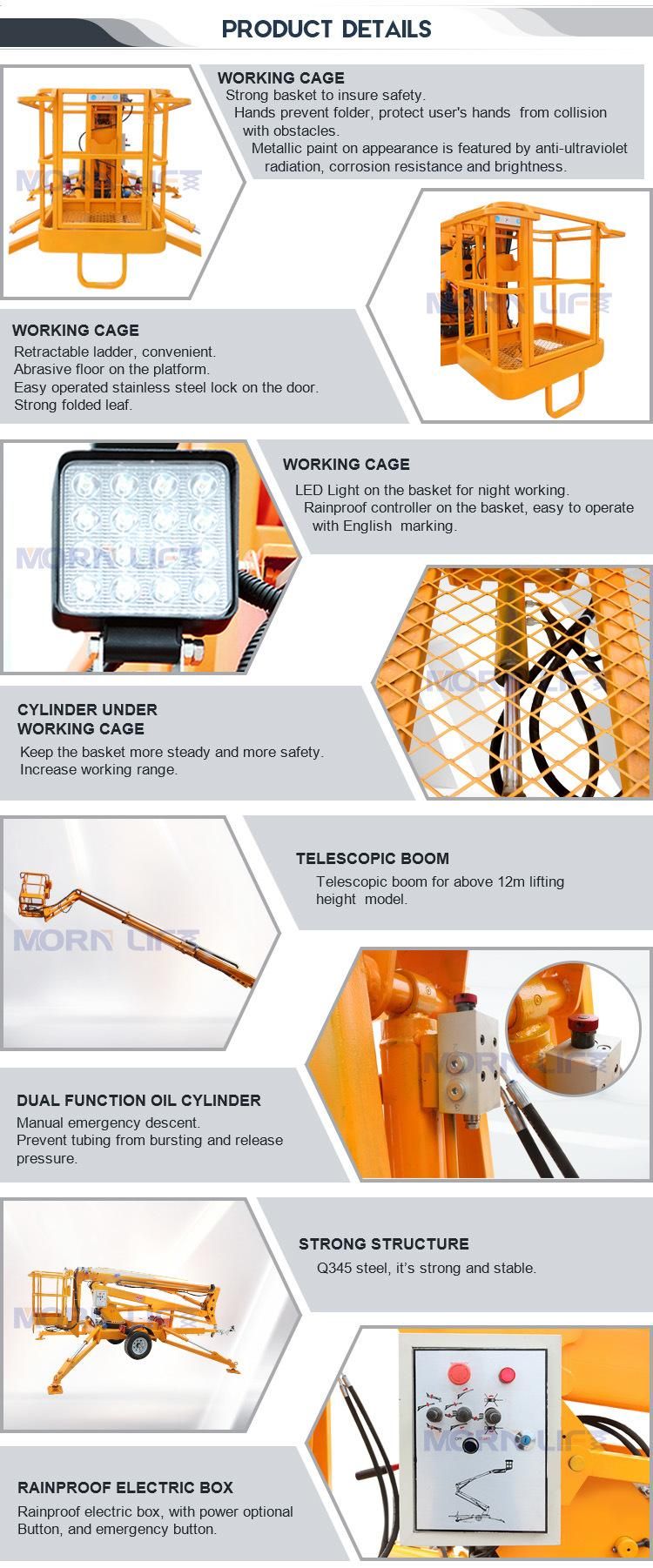

1, WORKING CAGE

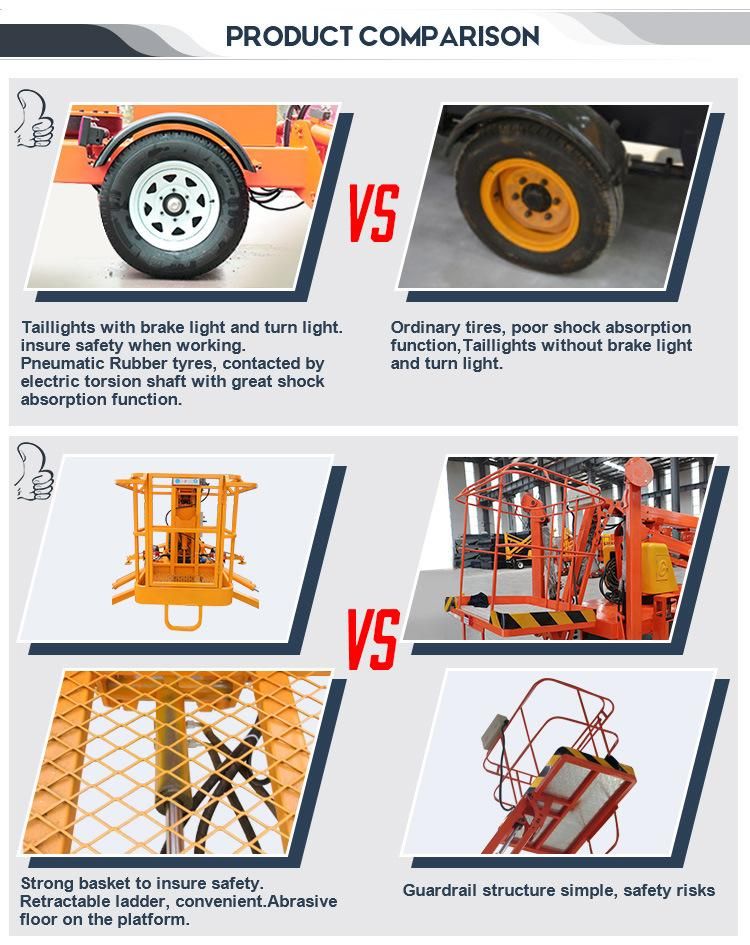

Strong basket to insure safety.
Hands prevent folder, protect user's hands from collision with obstacles.
Metallic paint on appearance is featured by anti-ultraviolet radiation, corrosion resistance and brightness.
2, KEY PARTS WORKING CAGE
Retractable ladder, convenient.
Abrasive floor on the platform.
Easy operated stainless steel lock on the door.
Strong folded leaf.
3, KEY PARTS WORKING CAGE
LED Light on the basket for night working.
Rainproof controller on the basket, easy to operate with English marking.
4, CYLINDER UNDER WORKING CAGE
Keep the basket more steady and more safety.
Increase working range.

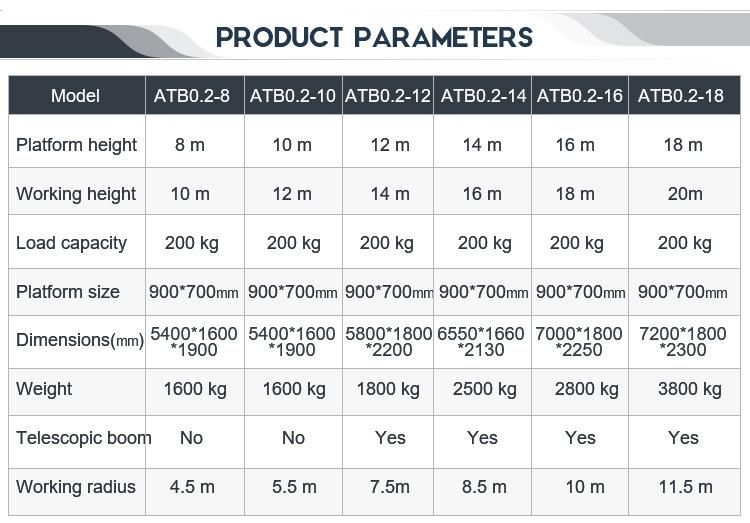

Model	ATB0.2-8	ATB0.2-10	ATB0.2-12	ATB0.2-14	ATB0.2-16	ATB0.2-18
Platform height	8 m	10 m	12 m	14 m	16 m	18 m
Working height	10 m	12 m	14 m	16 m	18 m	20 m
Load capacity	200 kg	200 kg	200 kg	200 kg	200 kg	200 kg
Platform size	900*700 mm	900*700 mm	900*700 mm	900*700 mm	900*700 mm	900*700 mm
Dimensions(mm)	5400*1600*1900	5400*1600*1900	5800*1800*2200	6550*1660*2130	7000*1800*2250	7200*1800*2300
Weight	1600 kg	1600 kg	1800 kg	2500 kg	2800 kg	3800 kg
Working radius	4.5 m	4.5 m	7 m	7 m	8 m	8 m
Wind level	<=5	<=5	<=5	<=5	<=5	<=5
Units for 40GP	3 units	3 units	3 units	3 units	2 units	1 units
