• Model NO.：ATB0.2-12
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Power：2.2kw
• Min. Lifting Height：2.1m
• Max.Lifting Height：12m
• Max.Working Height：14m
• Outreach：7.5m
• Lift Power：AC,Battery, or Petrol Engin or Bi-Engi
• Platform Size：900*700mm
• Load Capacity：200kg
• Moving：by Car or Truck Tow
• Package：Film Packed and Load in Container
• Transport Package：Stretch Film & Plywood Case
• Specification：5800*1800*2200mm
• Trademark：MORN LIFT
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：10 Units, Month

Basic Info.

Model NO. ATB0.2-12 Feature Explosion-Proof Certification CE, ISO 9001 Power 2.2kw Min. Lifting Height 2.1m Max.Lifting Height 12m Max.Working Height 14m Outreach 7.5m Lift Power AC,Battery, or Petrol Engin or Bi-Engi Platform Size 900*700mm Load Capacity 200kg Moving by Car or Truck Tow Package Film Packed and Load in Container Transport Package Stretch Film & Plywood Case Specification 5800*1800*2200mm Trademark MORN LIFT Origin Shandong, China HS Code 842890 Production Capacity 10 Units/ Month

Product Description

Electric Drive Articulated Towable Boom Lift
Towable boom lifts are convenient, easy and reliable models for accessing whatever height needed.
Most towable boom lift models have a maximum capacity of 200kg, and with bespoke options available, they can easily lift user for carrying out aerial work. The boom lift options are all built with safety and durability in mind. Users will feel safe and secure in the knowledge that our models will carry them to and from locations with ease, stability and security.

Model	ATB0.2-10
Platform size	900*700mm
Lift height	10m
Max. work height	11.8m
Load capacity	200kg
Working Radius	4.5m
Dimension	5.4*1.6*1.9m
Anti-wind grade	≤5
Self-weight	1600kg
Lift power	petrol, diesel, storage battery, AC, or double power engine

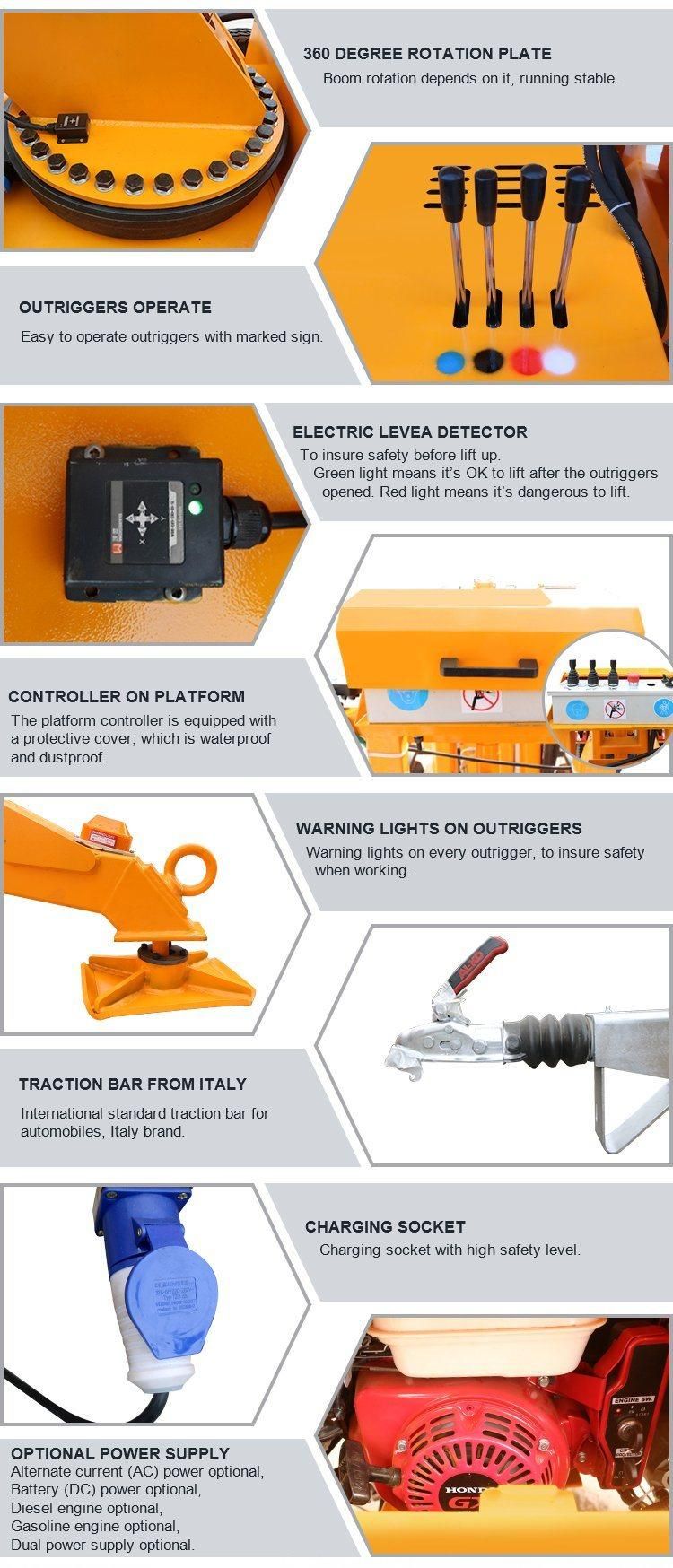

Safety and Advantage1.Hydraulic pipe and hydraulic lock on the cylinder
Its function is to prevent hydraulic oil backflow when the oil pipe accidental break and decompression. Better protect user's safety.

2.Outriggers legs and balance sensor
Function: the 4 outriggers legs keep the tire from the ground and moving, keep the boom lift and human stable and safety.
The balance sensor could auto test whether 4 sets outrigger legs are on the same level or not. If on the same level, it would show a green light, or the red light would be shown and the tow-able boom lift would not start work.

3. The alarm on the towable boom lift keeps ringing when the machine is working, warning people around to be careful.

4. The rotary table is water-proof, IP65
The rotary table is big and water-proof, dust-proof, it ensures the boom lift's rotation.

5.Guardrail outside the platform
Function: protect the hand from nipped when hand holds the platform near an obstacle.

6.Lock in the front on the boom
Function: to keep the booms stable when moving the machine in case of damage

7.Trailing system
The trailing system Morn used is imported from Italy.

8. Emergency stop
The boom lift will be stopped in case of any emergency

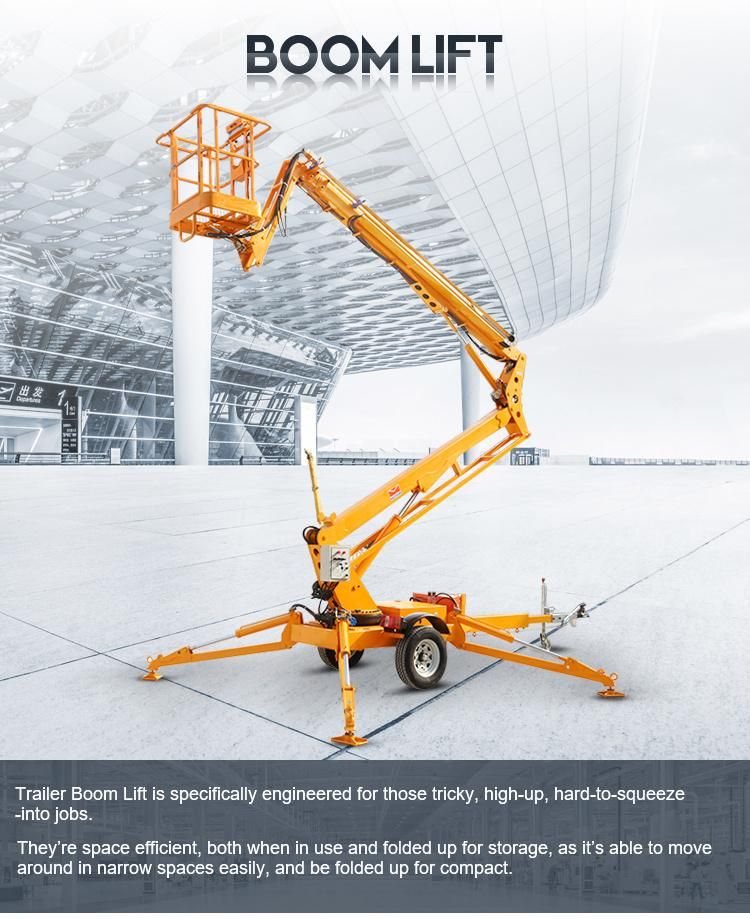

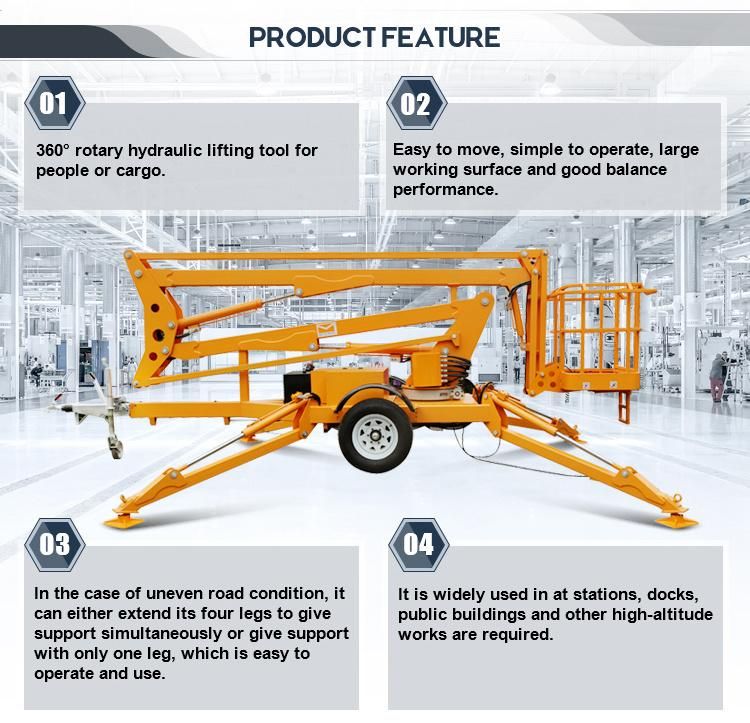

Trailer Boom Lift is specifically engineered for those tricky, high-up, hard-to-squeeze-into jobs.
They're space efficient, both when in use and folded up for storage, as it's able to move around in narrow spaces easily, and be folded up for compact storage.

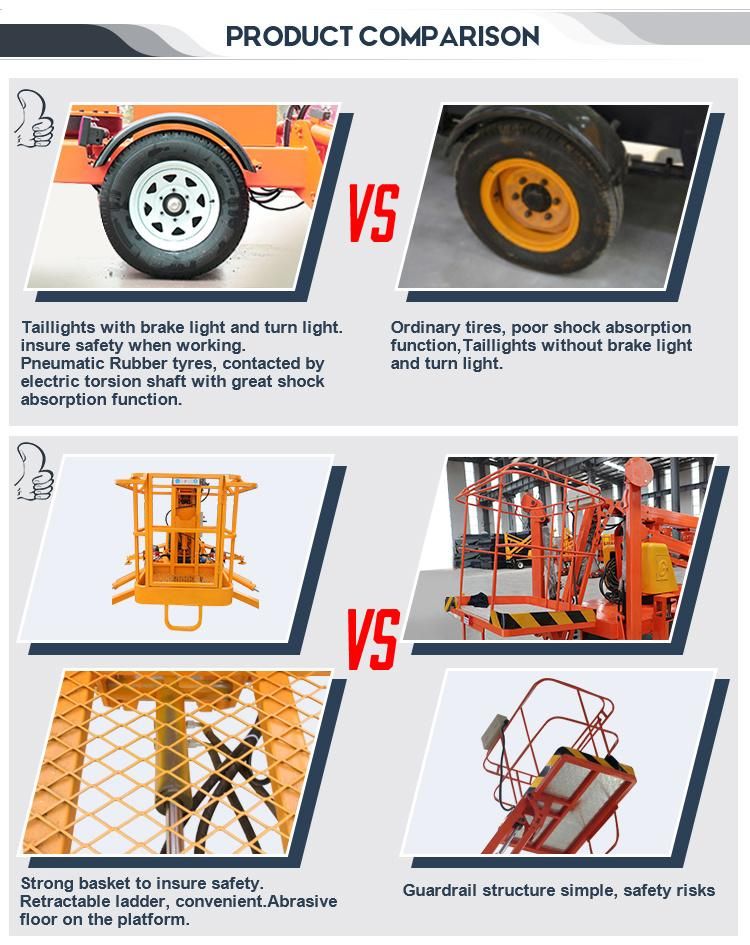

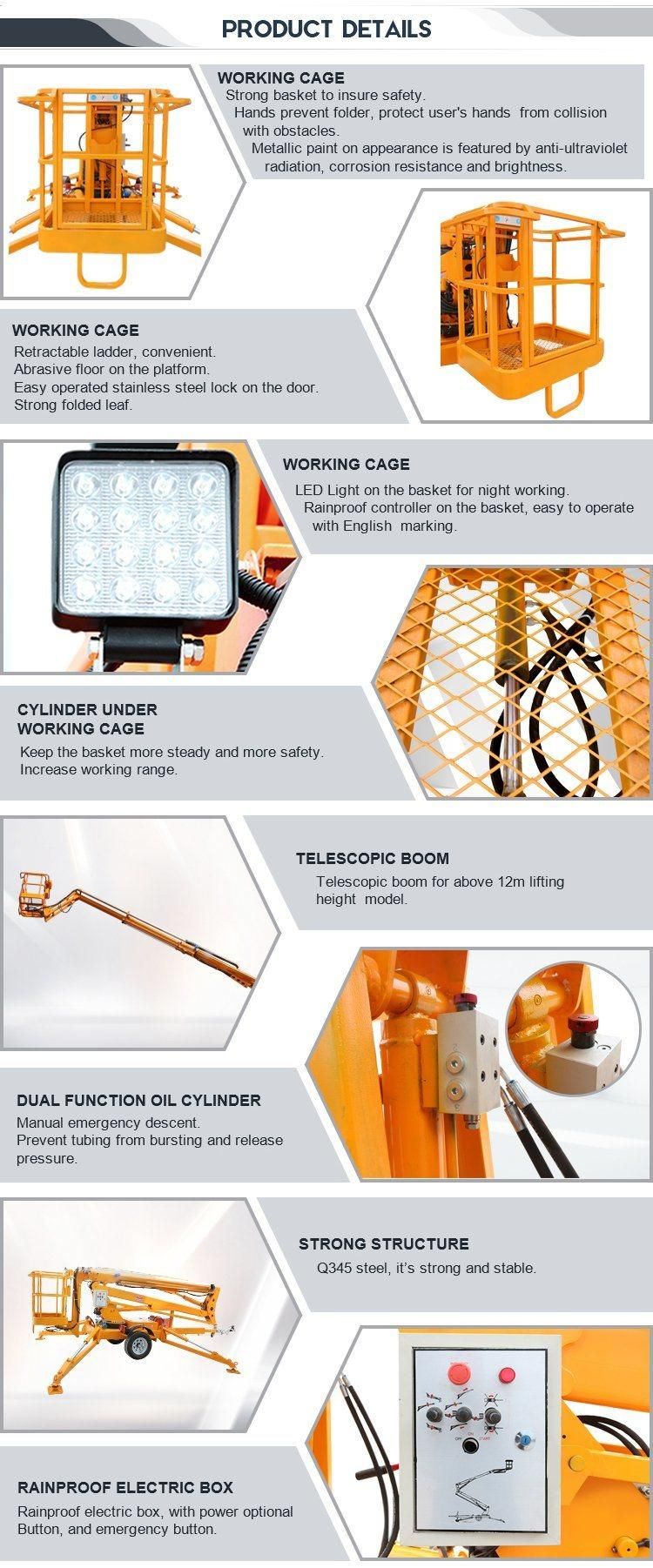

1, WORKING CAGE
Strong basket to insure safety.
Hands prevent folder, protect user's hands from collision with obstacles.
Metallic paint on appearance is featured by anti-ultraviolet radiation, corrosion resistance and brightness.
2, KEY PARTS WORKING CAGE
Retractable ladder, convenient.
Abrasive floor on the platform.
Easy operated stainless steel lock on the door.
Strong folded leaf.
3, KEY PARTS WORKING CAGE
LED Light on the basket for night working.
Rainproof controller on the basket, easy to operate with English marking.
4, CYLINDER UNDER WORKING CAGE
Keep the basket more steady and more safety.
Increase working range.

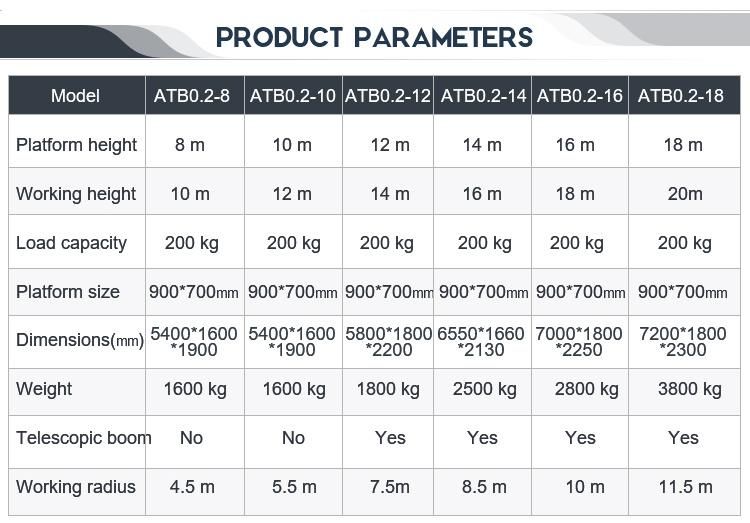

Model	ATB0.2-8	ATB0.2-10	ATB0.2-12	ATB0.2-14	ATB0.2-16	ATB0.2-18
Platform height	8 m	10 m	12 m	14 m	16 m	18 m
Working height	10 m	12 m	14 m	16 m	18 m	20 m
Load capacity	200 kg	200 kg	200 kg	200 kg	200 kg	200 kg
Platform size	900*700 mm	900*700 mm	900*700 mm	900*700 mm	900*700 mm	900*700 mm
Dimensions(mm)	5400*1600*1900	5400*1600*1900	5800*1800*2200	6550*1660*2130	7000*1800*2250	7200*1800*2300
Weight	1600 kg	1600 kg	1800 kg	2500 kg	2800 kg	3800 kg

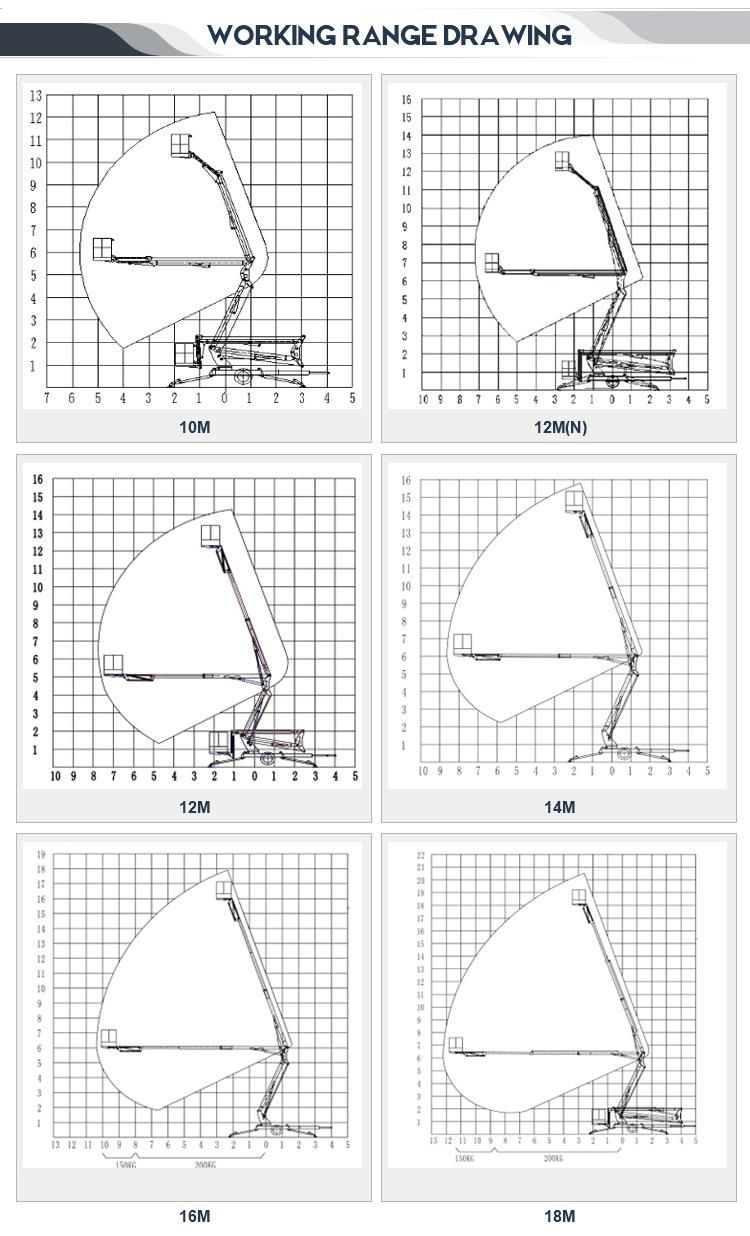

Working radius	4.5 m	4.5 m	7 m	7 m	8 m	8 m
Wind level	<=5	<=5	<=5	<=5	<=5	<=5
Units for 40GP	3 units	3 units	3 units	3 units	2 units	1 units
