• Model NO.：WL0.25-3.2
• Feature：Explosion-Proof, Insulating
• Certification：CE
• Platform Size：1400*900
• Load Capacity：250kg
• Lifting Height：3.2m
• Color：White
• Ramp：Fixed,Automatic
• Voltage：220V,240V,380V,415V
• Transport Package：Container
• Specification：aluminum alloy
• Trademark：MORN
• Origin：China Shandong
• HS Code：842890
• Production Capacity：50,Month

Basic Info.

Model NO. WL0.25-3.2 Feature Explosion-Proof, Insulating Certification CE Platform Size 1400*900 Load Capacity 250kg Lifting Height 3.2m Color White Ramp Fixed/Automatic Voltage 220V/240V/380V/415V Transport Package Container Specification aluminum alloy Trademark MORN Origin China Shandong HS Code 842890 Production Capacity 50/Month

Product Description

Product Description:

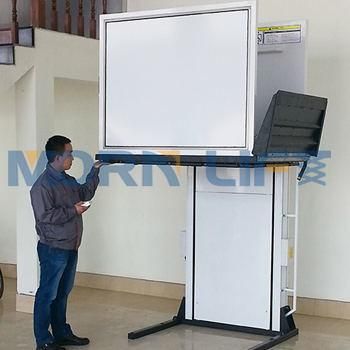

Home elevator lift provides convenient access for elder or other people needed. Characterized by novel design, perfect stability and safety, nice appearance, low noise and so on, with 1.0-6.0m working range, 150-350kg carrying capacity. Ideal for indoor and outdoor applications.

Safety measures:

1.Safety sensor on the platform bottomThe lift will be stopped at once if it touches any obstacles when going down, especially to protect the children if he enter accidentally.

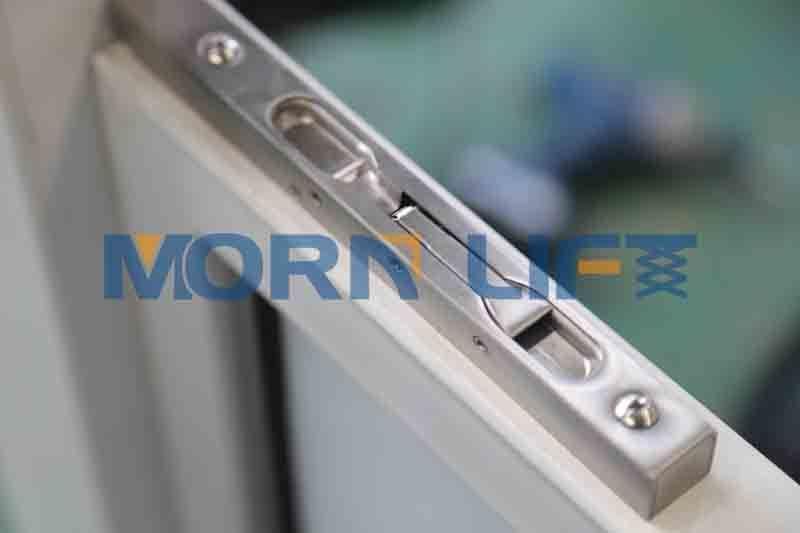

2.Electromagnetic lock of the platform doorInterlock: The lift won't work if the door is open, it can only work when the door is completely closed.
Electromagnetic lock: The door won't be opened during the lift works.
 3.Mechanical platform lockIt is a double safe design to protect people on platform

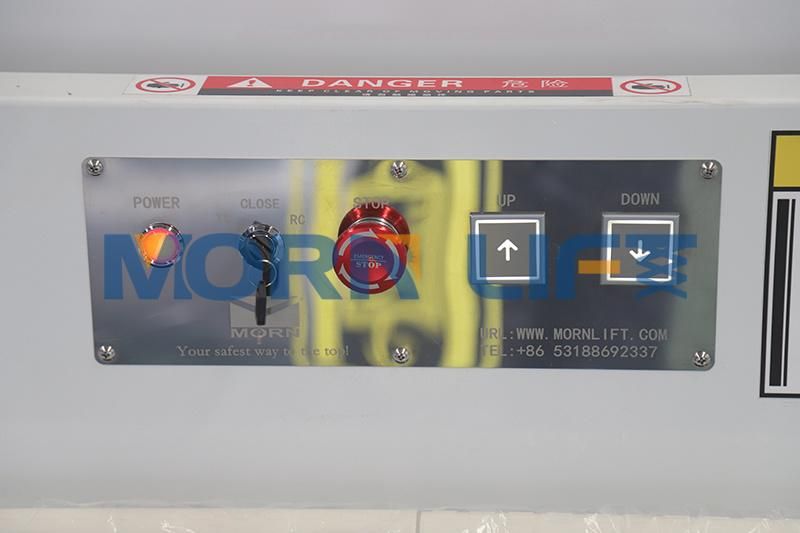

4.Switch keyFirst you can lock the lift if you do not use it, in case of any mis-operation by the children or strangers.

5.Emergency stop on platform

The lift can be stopped immediately in case of any emergency when up or down.

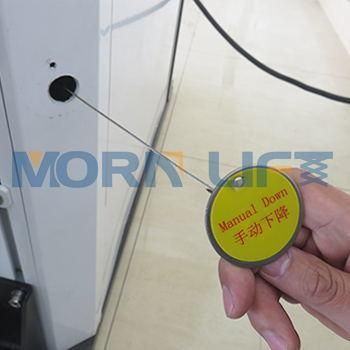

6. Emergency down button

The platform can be lowered by manual down button in case of power failure

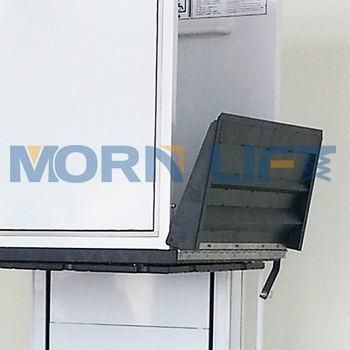

7.Automatic ramp with protection function.

It can turn up to max 75°when lifting and prevent the wheelchair from going out.And also used for ramp where the wheelchair goes in and out.

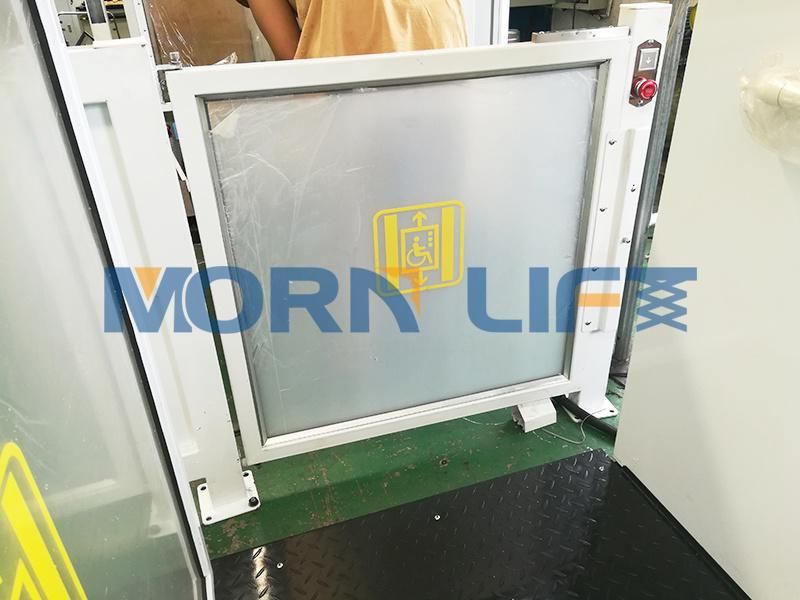

8.Landing door(Optional)

Prevent the elderly and children from falling into well while waiting for the lift.And prevent walker from accidental fall.



9.Mesa of antiskid

It prevents the old man or child from slipping and falling.
Aluminum alloy structure with powder coating:
1.The lift used T6030 aluminum alloy, it has good mechanical intensity and corrosion resistance and weather resistance, which ensure the lift 15years structural warranty at least.
2.Hardness > 2h, it is not easy to be scratched
3. We make it white powder coating, it looks more beautiful, it can match with all kinds of buildings;

Model

Model	Loading Capacity	Lifting Height	Platform Size	Dimension
WL0.25-1.2	250kg	1.2m	1400x900mm	1430x1500x2050mm
WL0.25-1.6	250kg	1.6m	1400x900mm	1430x1500x2450mm
WL0.25-2.0	250kg	2.0m	1400x900mm	1430x1500x2850mm
WL0.25-2.4	250kg	2.4m	1400x900mm	1430x1500x3250mm
WL0.25-2.8	250kg	2.8m	1400x900mm	1430x1500x3650mm
WL0.25-3.2	250kg	3.2m	1400x900mm	1430x1500x4050mm
WL0.25-3.6	250kg	3.6m	1400x900mm	1430x1500x4450mm
WL0.25-4.0	250kg	4.0m	1400x900mm	1430x1500x4850mm
WL0.25-4.4	250kg	4.4m	1400x900mm	1430x1500x5250mm
WL0.25-4.8	250kg	4.8m	1400x900mm	1430x1500x5650mm
WL0.25-5.2	250kg	5.2m	1400x900mm	1430x1500x6050mm
WL0.25-5.6	250kg	5.6m	1400x900mm	1430x1500x6450mm
WL0.25-6.0	250kg	6.0m	1400x900mm	1430x1500x6850mm
