Diesel Anchor Windlass 10ton Lifting Capacity, Drum Can Free
Pingyang Construction Hoisting Machinery Co.- Type：Construction Winch
- Driven Type：Diesel Engine
- Speed：Slow
- Carrying Capacity：Middle-Level
- Tonnage：10T
- Reel Number：1
Base Info
- Model NO.：JMD10
- Running Mode：Stationary
- Feature：4 Cylinder
- Certification：ISO 9001
- Standard：Nonstandard
- Rope Capacity：200m
- Engine Power：36kw
- Transport Package：Wooden Case
- Specification：10Ton
- Trademark：CH
- Origin：Wenzhou, China
- HS Code：8425399000
- Production Capacity：1000PCS,Year
Description
Basic Info.
Model NO. JMD10 Running Mode Stationary Feature 4 Cylinder Certification ISO 9001 Standard Nonstandard Rope Capacity 200m Engine Power 36kw Transport Package Wooden Case Specification 10Ton Trademark CH Origin Wenzhou, China HS Code 8425399000 Production Capacity 1000PCS/YearProduct Description
DIESEL ENGINE POWERED WINCH1. Capacity 10Ton
2. Rope capacity 200m
3. key start, hand brake
4. Speed: 10m/min

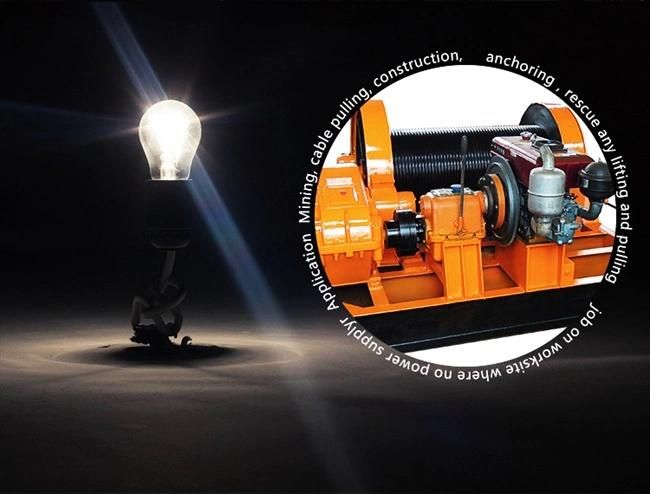

APPLICATION: PULLING, and wind steel wire rope or cable
FORWARD AND REVERSING by GEAR LEVER
Brake: One handle brake
SPEED CONTROLLED THROUGH THE ENGINE THROTTLE
Key starter
The winches are made by order, please supply the capacity and rope length requirment to us via email.
