CE Electrical & Hydraulic Wheelchair Lift (WL-STEP-800)
Changzhou Xinder-Tech Electronics Co., Ltd.- Application:Bus
- Lift Mechanism:Electrical and Hydraulic
- Carrying Capacity:350kg
- Moves:Stationary
- Driven Type:Electrical and Hydraulic
- Running Mode:Stationary
Base Info
- Model NO.:WL-STEP-800)
- Certification:CE
- Motor Power:0.8kw
- Pressure:2500psi
- Voltage:12V,24V
- Platform Size:1152mm*819mm
- Max Lifting Height:800mm
- Required Door Net Width:Over 1100
- Cylinder Diameter&Stroke:45*600 Unidirectional Action
- Transport Package:Wooden Case
- Specification:CE
- Trademark:Xinder
- Origin:Changzhou Jiangsu China
- HS Code:8428909090
- Production Capacity:500 Sets Per Month
Description
Basic Info.
Model NO. WL-STEP-800) Certification CE Motor Power 0.8kw Pressure 2500psi Voltage 12V/24V Platform Size 1152mm*819mm Max Lifting Height 800mm Required Door Net Width Over 1100 Cylinder Diameter&Stroke 45*600 Unidirectional Action Transport Package Wooden Case Specification CE Trademark Xinder Origin Changzhou Jiangsu China HS Code 8428909090 Production Capacity 500 Sets Per MonthProduct Description
Introductions:

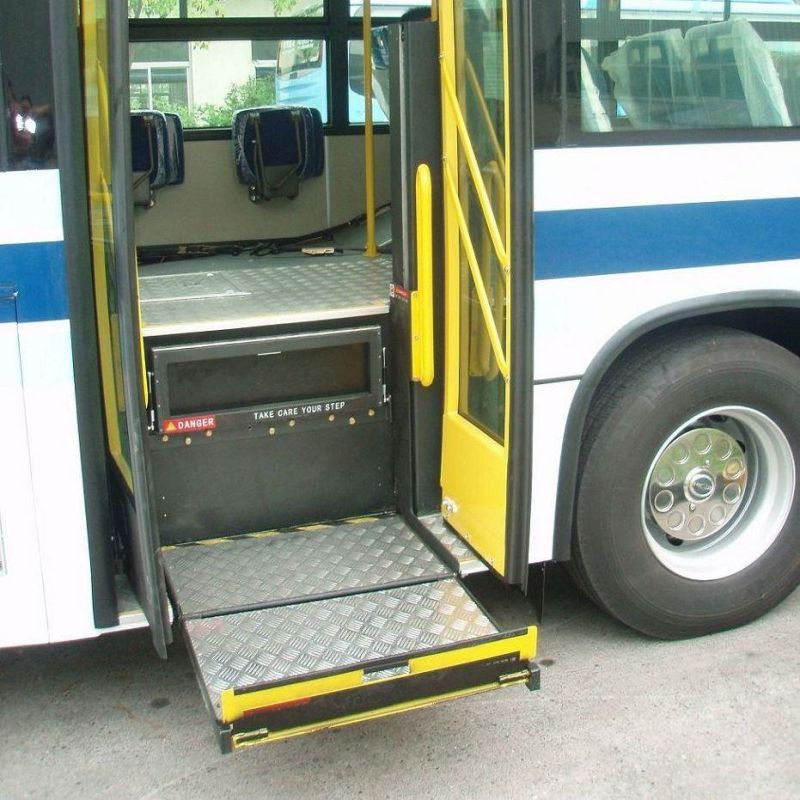

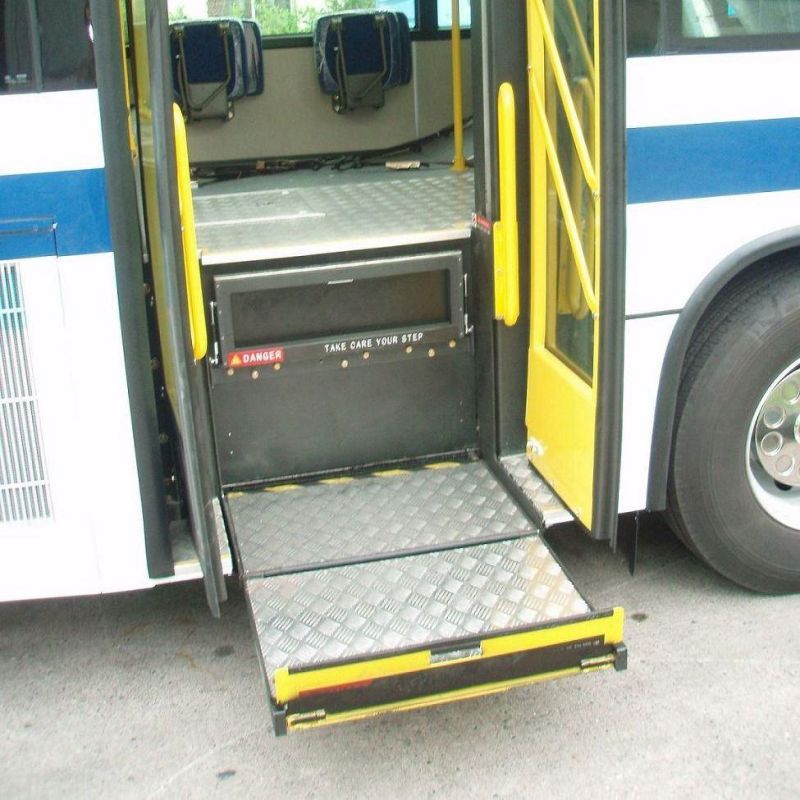

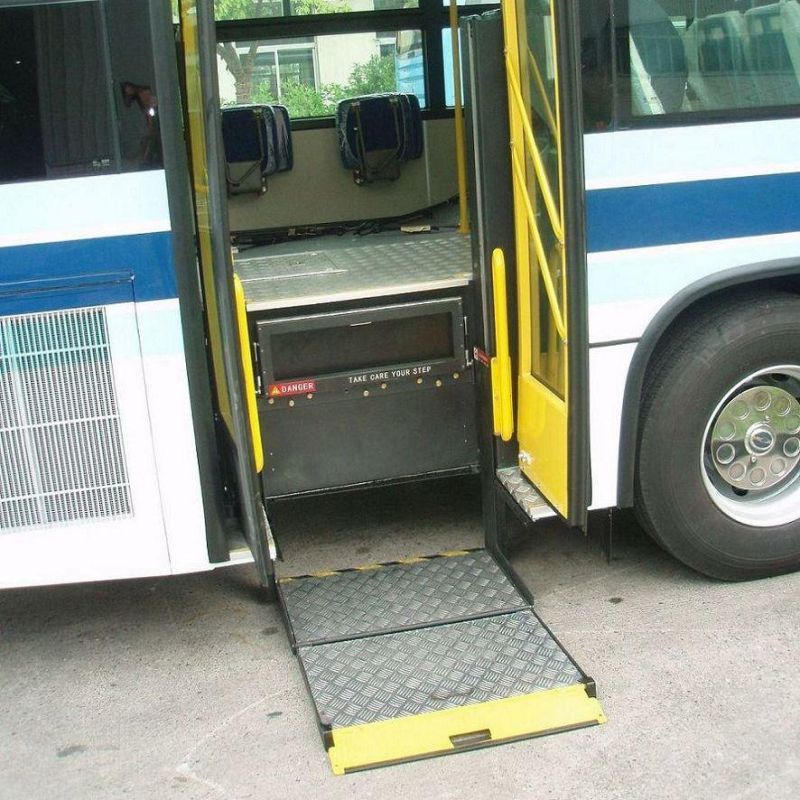

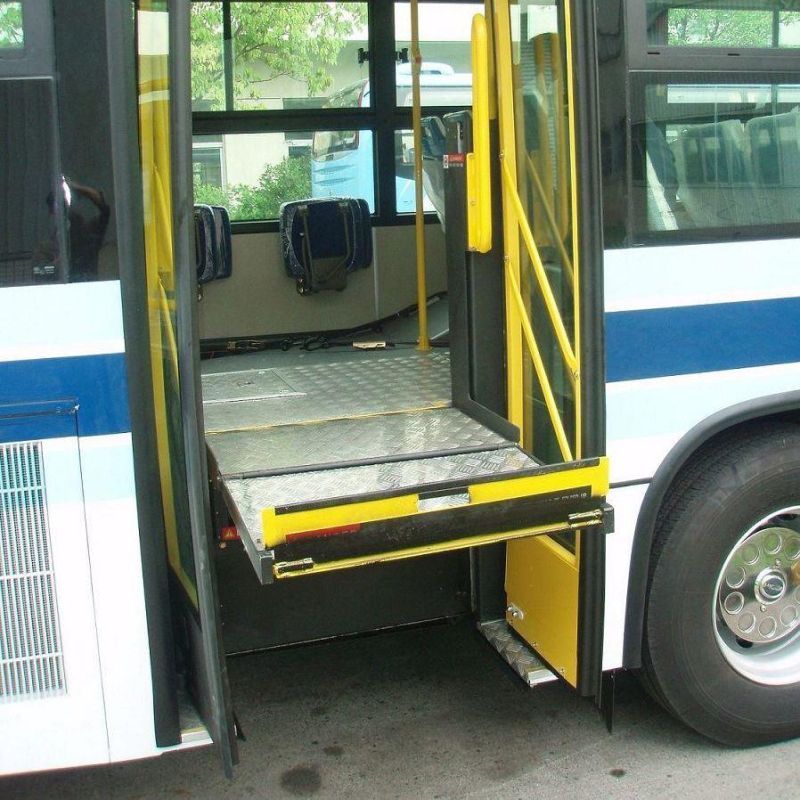

This wheelchair lift is installed in bus step area.
It can be used as bus steps when not in use.
It is designed to help a person to get on bus easily and comfortably while seated in a wheelchair.
It is a kind of semi-automatic wheelchair lift.
Open platform manually, but movements of lifting and lowering is automatic.
Max lifting height can reach 850mm.
Advantages:
Used as bus steps when not in use;
Doesn't obstruct view, access and emergency exit when stowed;
Warning sound during working;
Manual backup function for emergency;
Door interlock function;
Anti-skid platform;
Powerful hydraulic pump ensures smooth and stable movement;
Side handrails to increase comfort and security;
Technical Specification
Voltage: 12Vdc or 24Vdc;
Power: 800W;
Loading capacity: 350KG;
