• Model NO.：WL-UVL-700
• Certification：CE
• Motor Power：0.8kw
• Pressure：2500psi
• Voltage：12V,24V
• Max Lifting Height：700mm
• Max. up/Down Stroke：505mm,500mm
• Len & Width of Platform：751mm*1220mm
• Length Required to Install Liftt：1940mm
• Height of Lift Front/Rear End：167mm,133mm
• Cylinder Diameter&Stroke：60X70 Unidirectional Operation
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Xinder
• Origin：Changzhou Jiangsu China
• HS Code：8428909090
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. WL-UVL-700 Certification CE Motor Power 0.8kw Pressure 2500psi Voltage 12V/24V Max Lifting Height 700mm Max. up/Down Stroke 505mm/500mm Len & Width of Platform 751mm*1220mm Length Required to Install Liftt 1940mm Height of Lift Front/Rear End 167mm/133mm Cylinder Diameter&Stroke 60X70 Unidirectional Operation Transport Package Wooden Case Specification CE Trademark Xinder Origin Changzhou Jiangsu China HS Code 8428909090 Production Capacity 500 Sets Per Month

Product Description

Introductions:

• Model: UVL-700-S, UVL-1300-S

• Platform width: 750mm or 800mm;

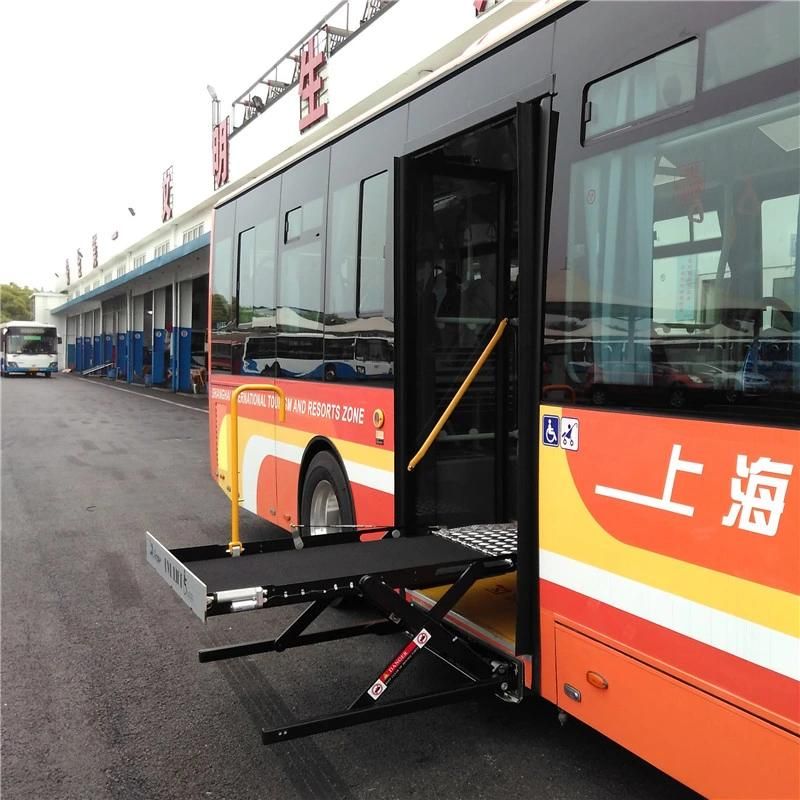

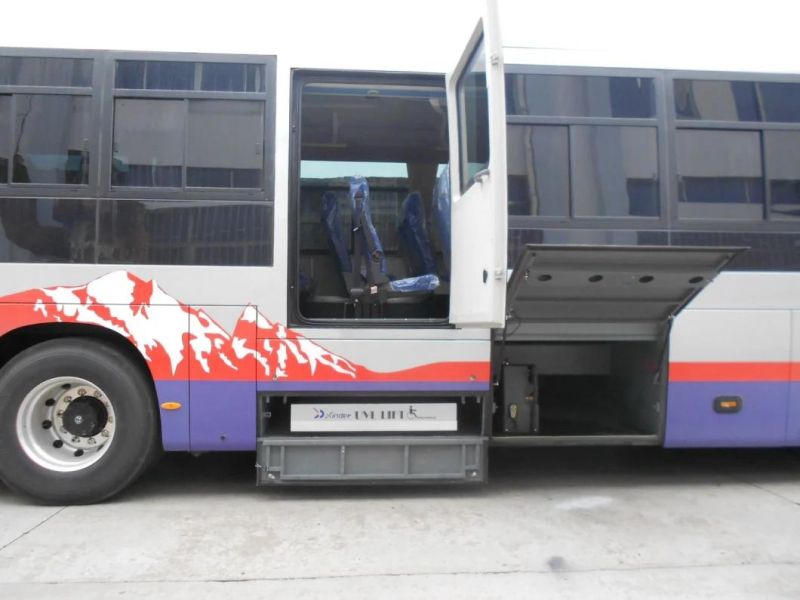

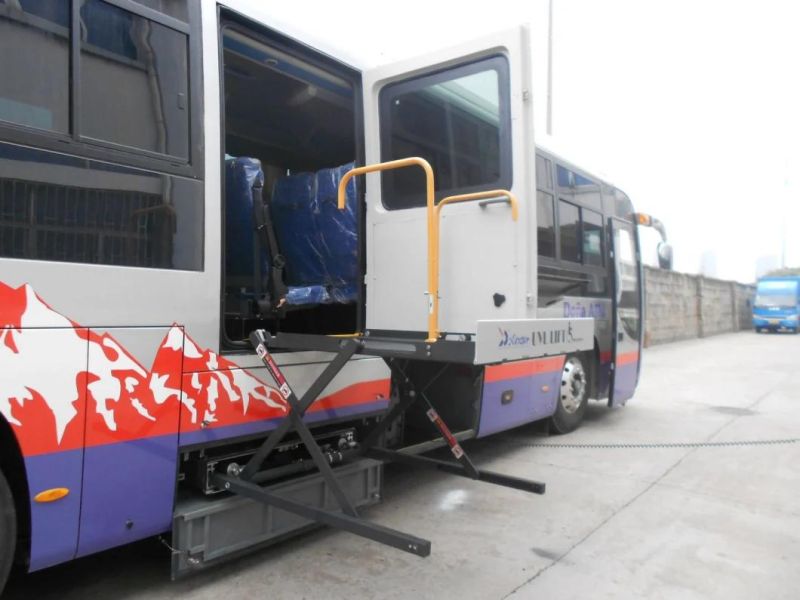

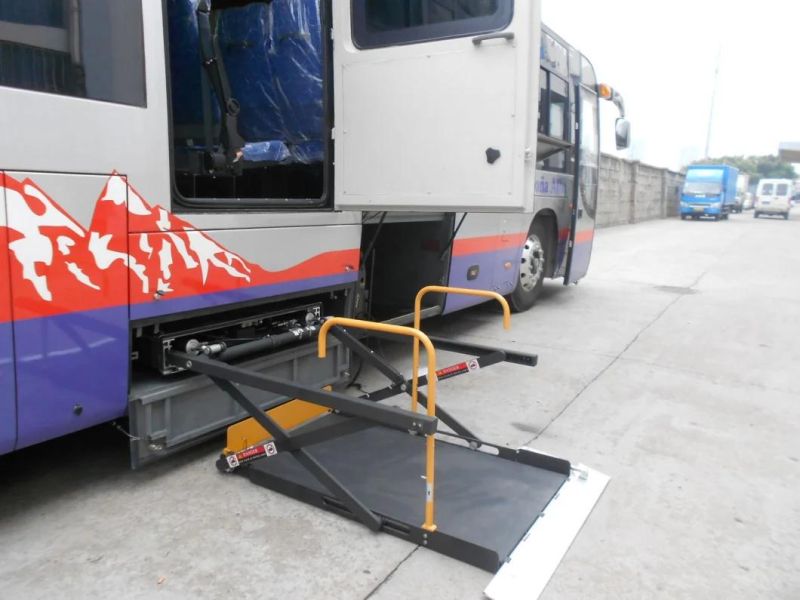

• It is installed under vehicle chassis, so it stays out of sight and out of the way when not in use.

• It is operated by the wired remote control which is easy, safe and reliable.

• Powered by the hydraulic system, the movement is stable.

• Loading capacity is 350kg.

• This lift has been CE certified.



Advantages:

• Stays out of sight and out of way when not in use;

• Doesn't obstruct view, access and emergency exit when stowed;

• Warning sound during working;

• Manual backup function for emergency;

• Door interlock function;

• Inside safety locking device;

• Mechanical automatic roll stops;

• Anti-skid platform;

• Powerful hydraulic pump ensures smooth and stable movement;

• Side handrails (Option) to increase comfort and security;



Technical Specifications:

• Voltage: 12Vdc or 24Vdc;

• Power: 800W;

• Loading capacity: 350kg;
