• Model NO.：VC-B
• Certification：CE, ISO9001:2000, SGS
• Condition：New
• Color：Optional
• Hook：2.0 Manganese Steel
• Chain：80 Grade
• Power：Hand
• Max Lifting Weight：1 T
• Warranty：1 Year
• Port of Loading：Tianjin Shanghai
• Demand Lifting Height and Weight：Avaliable
• Delivery Time：3-15 Days
• Transport Package：Standard Wooden Case or Colour Paper Box
• Specification：Packing size: 25*19*16cm
• Trademark：HUGO
• Origin：Shanghai, China
• HS Code：8425190000
• Production Capacity：30000PCS,Year

Basic Info.

Model NO. VC-B Certification CE, ISO9001:2000, SGS Condition New Color Optional Hook 2.0 Manganese Steel Chain 80 Grade Power Hand Max Lifting Weight 1 T Warranty 1 Year Port of Loading Tianjin Shanghai Demand Lifting Height and Weight Avaliable Delivery Time 3-15 Days Transport Package Standard Wooden Case or Colour Paper Box Specification Packing size: 25*19*16cm Trademark HUGO Origin Shanghai, China HS Code 8425190000 Production Capacity 30000PCS/Year

Product Description

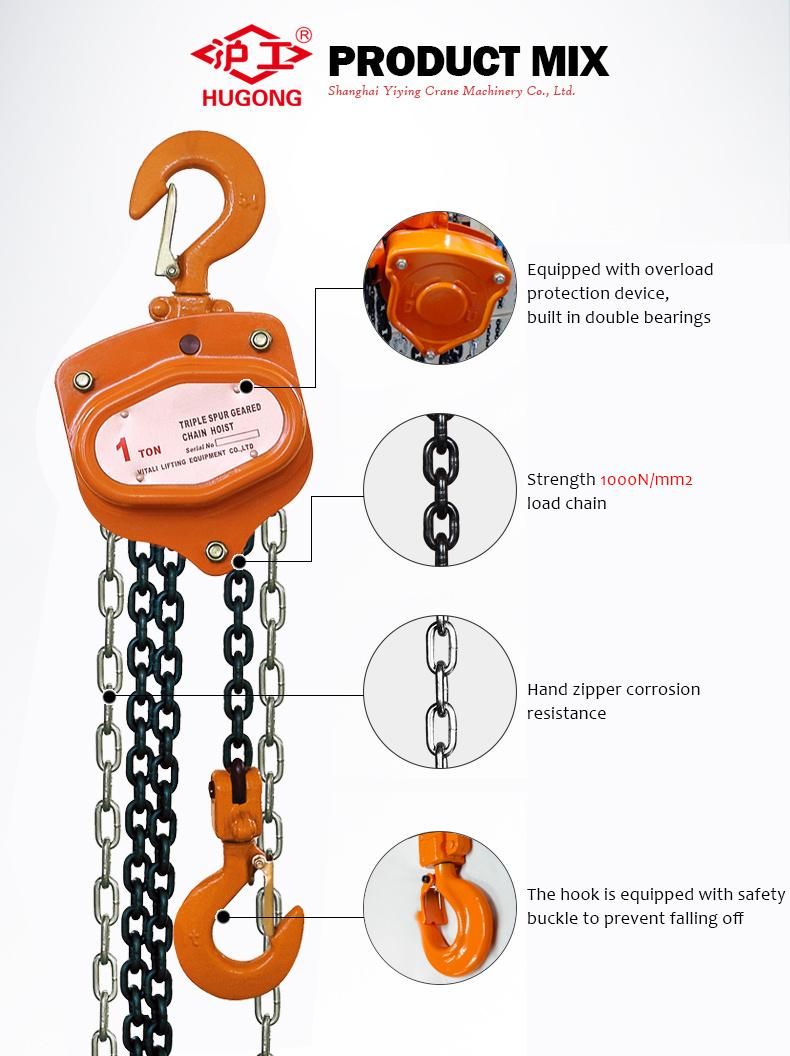

1. Introduction

Gear: Symmetrical arrayed high speed synchronous gears, international standard gear steel

Chain: Adopts high strength chain and high precision welding technology, fits for gusty overload work

Conditions; Multi-angle operation(with 45 degree).

Hook: Made of high-class alloy steel, strength and security

Switch: Limit switch to protect chain and ensure security.

Components: Main components are all made of high-class alloy steel, with high precision and security.

Plastic Plating: Advanced plastic plating technology inside and outside,

Encloser: Made of high-classed steel, more firmly and dexterous


2. Features
1)Heat treated low-wear, 80 grade chain

2)Forged upper and lower hooks

3)Ratchet type brake warrants, safe and dependable operation

4) 100% test before assembling and loading

Model	VC-A 0.5	VC-A 1	VC-A 1.5	VC-A 2	VC-A 3	VC-A 5	VC-A 10	VC-A 20	VC-A 30	VC-A 50
Capacity(t)	0.5	1	1.5	2	3	5	10	20	30	50
Standard lift(m)	2.5	2.5	2.5	3	3	3	3	3	3	3
Running test load(t)	0.75	1.5	2.25	3	4.5	7.5	15	30	45	75
No.of falls of load chain	1	1	1	1	2	2	4	8	12	24
Load chain diameter(mm)	5	6.3	7.1	8	7.1	9	9	9	9	9
Dimension(mm) A	129	151	150.5	161.5	150.5	161.5	207	215	350	410
B	136	145	164.5	187	164.5	211	398	650	680	965
C	270	317	399	414	465	636	798	890	1380	1950
Net weight(kg)	8.4	12	16.2	20	24	41	79	193	220	1092
Packing(L*W*H)(cm)	22*14*15	25*19*16	33*24*16	33*24*19	34.5*24*16	40*30*19	48*42*18.5	78*68*20	85*67*30	110*100*130
