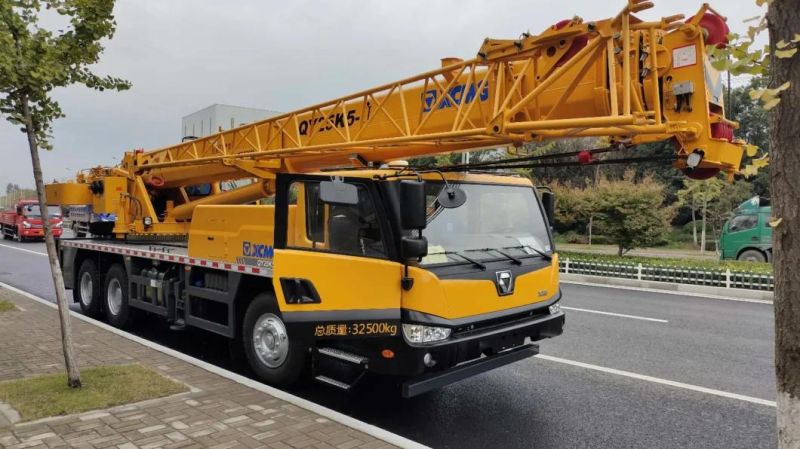

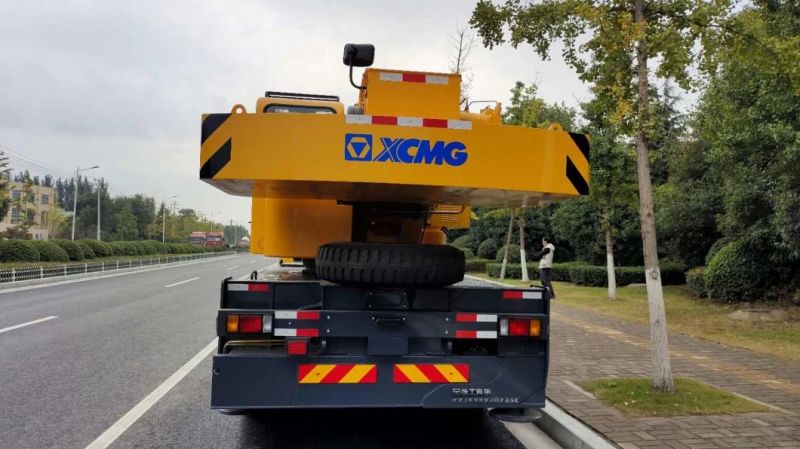

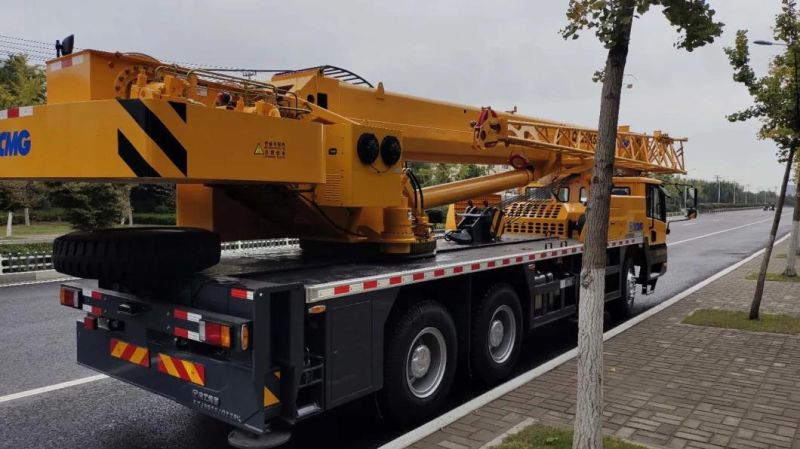

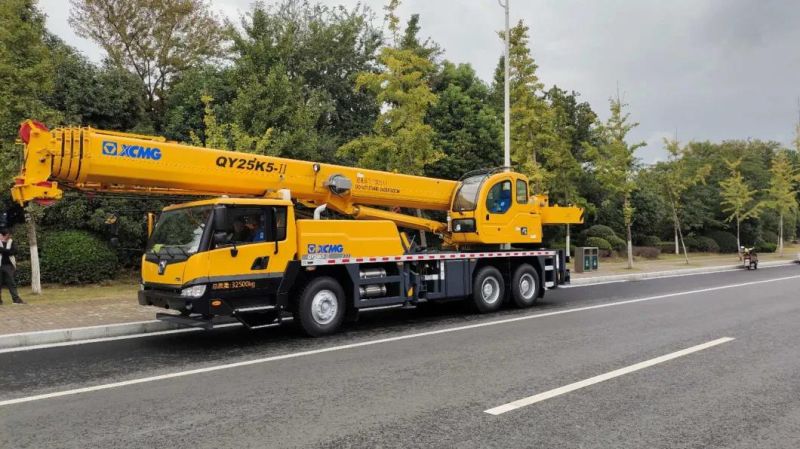

Construction Machinery Hydraulic Mobile Truck Crane 25ton (Qy25K-II)
Evangel Industrial (Shanghai) Co., Ltd.- Max. Lifting Capacity：25 Tons
- Weight：26400kgs
- Condition：New
- Color：Yellow
- Transport Package：Suitable Package for Shipment
- Specification：CE, ISO9001
Base Info
- Model NO.：QY25K-II
- Trademark：EVANGEL
- Origin：Jiangsu, China
- Production Capacity：100sets, Month
Description
Item
Unit
Parameter
Engine
Model
D6114ZLQ5B
Outline dimension
Overall length
mm
12380
Overall width
mm
≤2500
Overall height
mm
3500
Wheel base
Axle 1, Axle 2
mm
4025
Axle 2, Axle 3
mm
1350
Mass
Total mass in travel state
kg
26400
Axle load
Axle 1
kg
6530
Axle 2, Axle 3
kg
19870
Travel performance
Travel speed
Max. travel speed
km/h
≥63
Min. stable travel speed
km/h
≤4
Turning diameter
Min. turning diameter
m
≤19
Min. turning diameter at boom tip
m
≤22
Min. ground clearance
mm
≥273
Approach angle
(°)
≥21
Departure angle
(°)
≥10
Braking distance (at 30km/h with full load)
m
≤9.5
Max. grade-ability
%
≥23
Fuel consumption for 100km
L
36
