• Model NO.：CD1
• Lift Speed：2~8m,min
• Maximum Lifting Height：>20m
• Chain Falls：1
• Certification：CE
• Condition：New
• Color：Customized

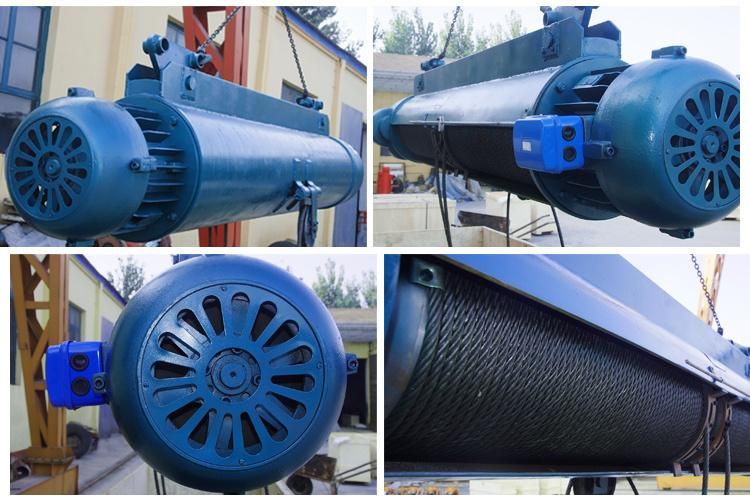

• Product Name：High Durability 10ton CD1 Electric Wire Rope Hoist
• Running Speed：20-30m,Min
• Standard Capacity：0.25ton-10ton
• Warranty：2 Years
• Lifting Height：3-30m
• Motor：Two
• Voltage：380V
• Power：50Hz
• Phase：3 Phase
• Transport Package：Wooden Box
• Specification：ISO,CE
• Trademark：hugong, yiying
• Origin：Shanghai, China
• HS Code：8425110000
• Production Capacity：5000PCS,Year
• Package size per unit product：50.00cm * 49.00cm * 72.00cm
• Gross weight per unit product：97.000kg

 Product parameters

1.Reducer: adopt third-class dead axel helical gear transmission structure gear

and geaaxel are made of heat treated alloy steel

2.Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.3.Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.4.Protection grade: IP54, work grade: M35.Over load limit is available. Hook is widen and thicken 6.Power-Off protection, Emergency stop system.
20/30
Wire Rope type
6*19-3.6
6*37-4.8-180
6*37-7.4-180
6*37-11-155
6*37-13-170
6*37-15-200
6*37-15-200
I beam track type
16-22b
16-28b
16-28b
20a-32c
20a-32c
25a-63c
28a-63c
Loop track minimum Radius  m
0.8
1.5
1.5-4
2-4
2-4
2.5-5
3.5-9
Voltage V
380
380
380
380
380
380
380
Frequency HZ
50
50
50
50
50
50
50
Phase
3
3
3
3
3
3
3
