• Model NO.：GCL
• Standard Color：Yellow & Black
• Factory：Yes
• Safety Factor：1.5times
• Transport Package：Wooden Boxes, Carton
• Specification：Net Weight 25kgs for capacity 3000kgs
• Trademark：HUGO
• Origin：Shanghai, China
• HS Code：8425190000
• Production Capacity：40000PCS,Year

Basic Info.

Model NO. GCL Standard Color Yellow & Black Factory Yes Safety Factor 1.5times Transport Package Wooden Boxes/ Carton Specification Net Weight 25kgs for capacity 3000kgs Trademark HUGO Origin Shanghai, China HS Code 8425190000 Production Capacity 40000PCS/Year

Product Description

1. Introduction

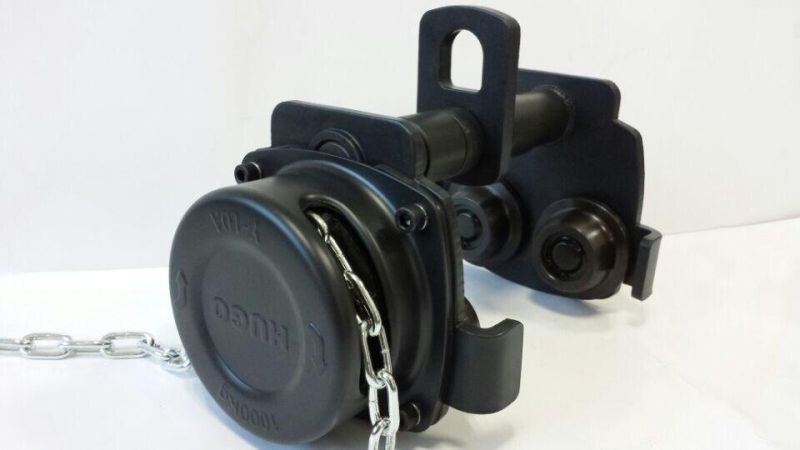

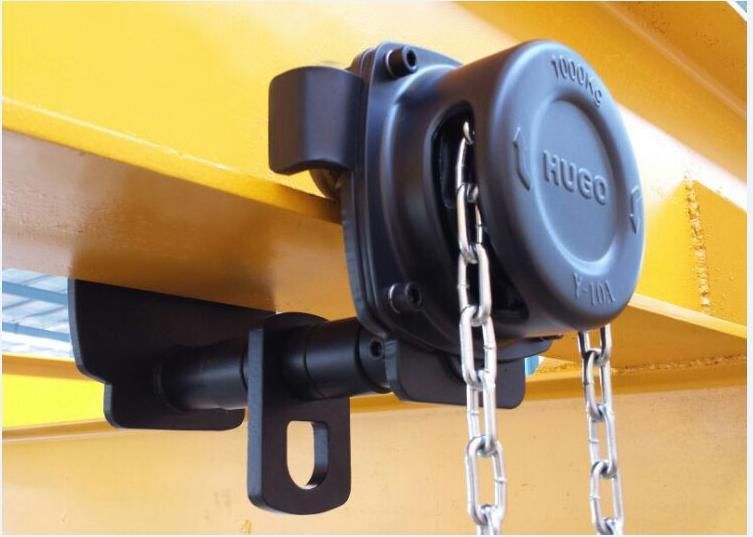

Monorail trolley is a kind of lifting equipment with simple structure, easy-operate and portble characters. It can be used with hand chain hoists, electric hoists together to consist as a hoist-transportation machines, travelling on the brige of all kinds of I beam.

2. Features
Easy operate, simple structure, easy maintain
100% Test before loading

model		GCL1	GCL2	GCL3	GCL5	GCL10
capcaity	(Kg)	1000Kg	2000Kg	3000Kg	5000Kg	10000Kg
test load	(Kg)	1500Kg	3000Kg	4500Kg	7500Kg	15000Kg
I -Beam	(mm)	64-203	88-203	100-203	114-203	125-204
hand chain	(Kg)	4.8x25	4.8x25	4.8x25	4.8x25	4.8x25
Net weight	(Kg)	11.9	16.3	25.7	37.9	62
Gross Weight	(Kg)	12.3	16.8	26.3	41	72
Diameter	A	195	229	276	317	382
	B	210	245	285	330	402
	C	30	35	40	45	60
	D	35	45	50	60.5	85
	E	317	343	355	362	393
	F	34	28	32	32	32
	G	190	203	203	203	204
