TUV Approved 380V 2 Ton Wire Rope Cheap Electric Hoist

Shanghai Yiying Crane Machinery Co., Ltd.
  • Application：Double Beam Crane, Single Grinder Crane
  • Type：Electric Hoist
  • Sling Type：Wire Rope
  • Lift Speed：2~8m,min
  • Maximum Lifting Height：12m
  • Chain Falls：Wire Rope 1 or 2

Base Info

  • Model NO.：R
  • Certification：CE, ISO9001:2000
  • Condition：New
  • Color：Gray
  • Product Name：R Wire Rope Hoist
  • Capacity：1-3t
  • Lifting Height：6,12m
  • Speed：6m,Min
  • Voltage：220,380,440
  • Hz：50Hz,60Hz
  • Phase：3 Phase
  • Hook：Forged
  • Brand Name：Hugo
  • Company：Shanghai Yiying Crane Machinery Co., Ltd
  • Transport Package：Wooden Case
  • Specification：1T 2T 3T
  • Trademark：HUGO
  • Origin：China
  • HS Code：8425110000
  • Production Capacity：500000 Pieces,Year

Description

Poles2 falls4 falls50Hz60Hz50Hz60Hz50Hz60Hz50Hz60Hz50Hz60Hz50Hz60HzR16Dia.8Dia.6.36xW(19)           B class                JIS-G35256.781.21.4421250.220.264-----R26Dia.10Dia.86xFi(29)          B class                JIS-G352567.22.22.6421250.50.64-----R3 single rail6Dia.12.5Dia.96xFi(29)          B class                JIS-G352567.233.6421250.50.6421250.50.64R3 double rail6Dia.12.5Dia.96xFi(29)          B class                JIS-G352567.233.6421250.50.6421250.50.64

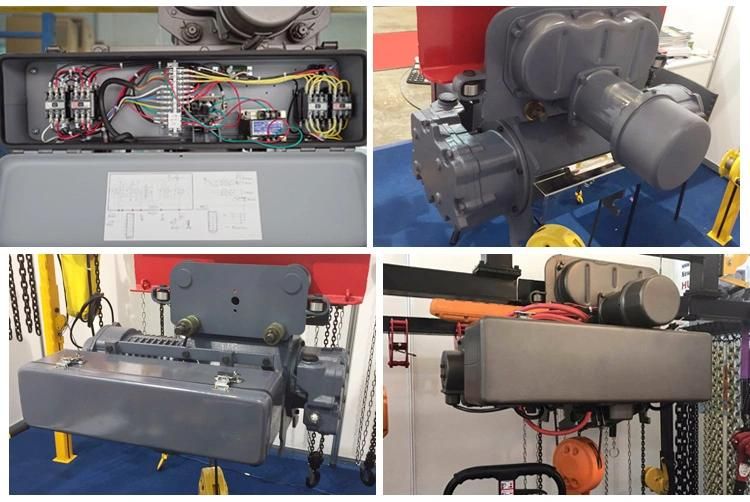

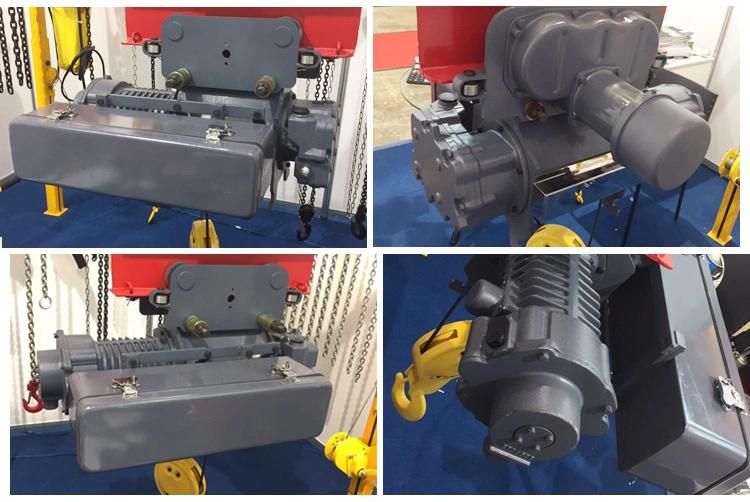

Different side for the electric wire rope hoist
TUV Approved 380V 2 Ton Wire Rope Cheap Electric Hoist
TUV Approved 380V 2 Ton Wire Rope Cheap Electric Hoist

Package for the electric wire rope hoist
TUV Approved 380V 2 Ton Wire Rope Cheap Electric Hoist

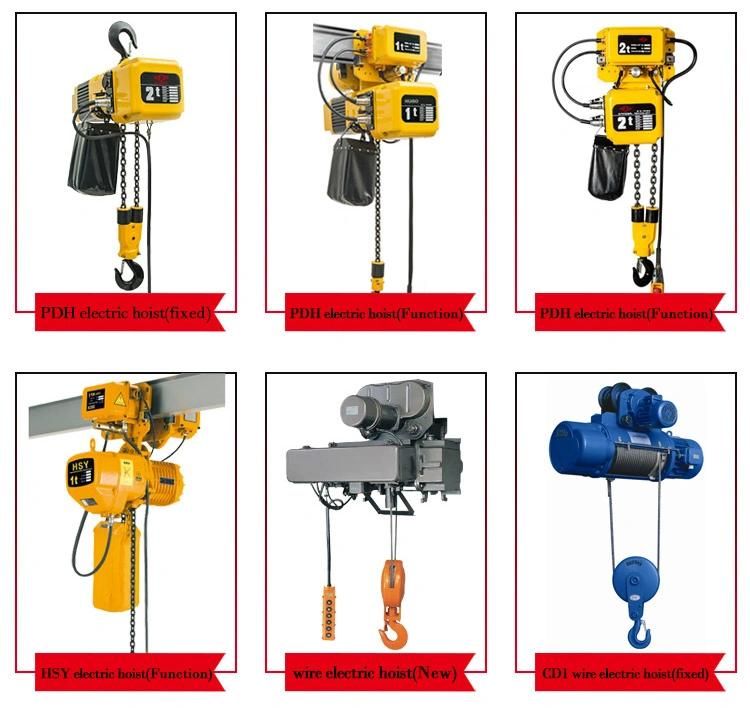

Related product for the electric wire rope hoist
