Hj10 Railway Heavy Rail Lifting Hydraulic Jack
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Type：Rail Lifting Jack
- Structure：Pneumatic Jack
- Capacity (Load)：1-10T
- Power Source：Pneumatic
- Max Height：100-150mm
- Certification：CE, ISO 9001:2000
Base Info
- Model NO.：HJ10
- Condition：New
- Hydraulic Jack：Hj10
- Max. Lifting Capacity of The Top：10tons
- Max. Lifting Capacity：5tons
- Max. Lifting Stroke：148mm
- Mini.Hook Height：20mm
- Size (mm)：260*200*283
- Weight：24kg
- Keywords：Rail Lifting Jack
- Used for：Rail and Mine
- Advantage：Reasonable Structure
- Transport Package：Wooden Case or as Your Requirement
- Specification：CE, SGS
- Trademark：China Coal
- Origin：Shandong, China
- HS Code：8425421000
- Production Capacity：110 Set,Sets Per Day
Description
Basic Info.
Model NO. HJ10 Condition New Hydraulic Jack Hj10 Max. Lifting Capacity of The Top 10tons Max. Lifting Capacity 5tons Max. Lifting Stroke 148mm Mini.Hook Height 20mm Size (mm) 260*200*283 Weight 24kg Keywords Rail Lifting Jack Used for Rail and Mine Advantage Reasonable Structure Transport Package Wooden Case or as Your Requirement Specification CE, SGS Trademark China Coal Origin Shandong, China HS Code 8425421000 Production Capacity 110 Set/Sets Per DayProduct Description

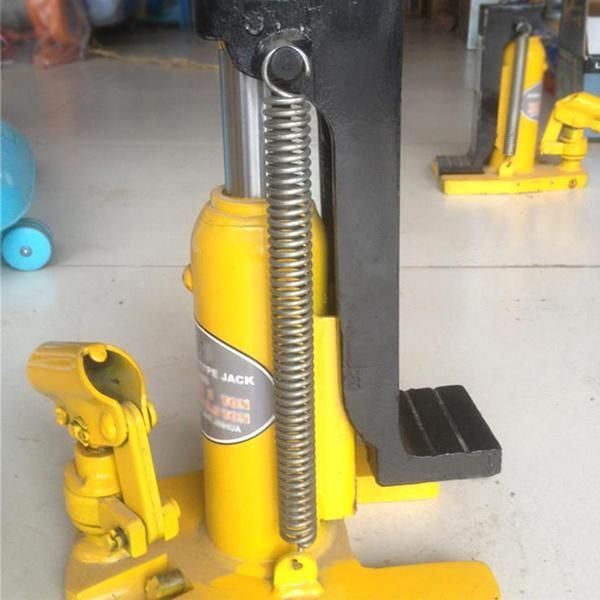

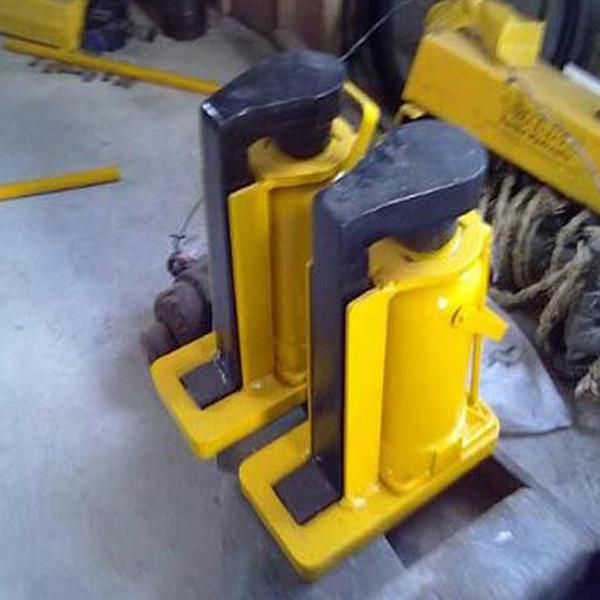

Introduction Of HJ 10 Railway Heavy Rail Lifting Hydraulic Jack
HJ Railway Heavy Rail Lifting Hydraulic Jack is a essential ideal tool for road on the mining service suitable for rail transposition operation.The machine is mainly composed of hydraulic transmission parts and leverage.
Features Of HJ 10 Railway Heavy Rail Lifting Hydraulic Jack
HJ Railway Heavy Rail Lifting Hydraulic Jack adopts manual operation do not need other power consumption, is mainly by manual lever to hydraulic drive the machine upper hooks for lifting movement, which has played a role, reasonable structure, easy to carry, is a practical machine.
Parameter Of HJ 10 Railway Heavy Rail Lifting Hydraulic Jack
| Hydraulic jack | HJ5 | HJ10 | HJ20 | HJ30 | HJ50 |
| Max. lifting capacity of the top | 5 tons | 10tons | 20 tons | 30tons | 50tons |
| Max. lifting capacity of the hook | 2.5tons | 5tons | 10tons | 15tons | 25tons |
| Max. lifting stroke | 115mm | 148mm | 158mm | 158mm | 158mm |
| Mini.Hook Height | 16mm | 20mm | 25mm | 30mm | 50mm |
| Size (mm) | 210X140X232 | 260X200X283 | 295X220X322 | 305X255X350 | 340X285X350 |
| Weight | 11kgs | 24kgs | 36kgs | 55kgs | 75kgs |
