• Model NO.：JD-0.5
• Running Mode：Moving
• Feature：Antiseptic, Insulating, Explosion-Proof
• Standard：National Standards
• Model：Jd- 1.6
• Traction Force Kn：17.6
• Average Speed M/S：1.40
• Dia of Wire Rope mm：15
• Drum Size mm：310 400
• Rope Capacity M：440
• Total Reduction Ratio：32.5
• Motor Type：Ybj40-4
• Motor Power Kw：40
• Motor Rev Rev/Min：1470
• Transport Package：Carton Box, Plastic Bagsor as Your Payment
• Specification：CE, SGS
• Trademark：China Coal
• Origin：China
• HS Code：8529109029
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. JD-0.5 Running Mode Moving Feature Antiseptic, Insulating, Explosion-Proof Standard National Standards Model Jd- 1.6 Traction Force Kn 17.6 Average Speed M/S 1.40 Dia of Wire Rope mm 15 Drum Size mm 310 400 Rope Capacity M 440 Total Reduction Ratio 32.5 Motor Type Ybj40-4 Motor Power Kw 40 Motor Rev Rev/Min 1470 Transport Package Carton Box, Plastic Bagsor as Your Payment Specification CE, SGS Trademark China Coal Origin China HS Code 8529109029 Production Capacity 1000 Sets Per Month

Product Description

Introduction of JD-0.5 Explosion-Proof Dispatching Winch

JD explosion-proof dispatching winch is widely used to pull the tramcar underground.The explosion-proof electric device can be applicable for the colliery and other mine with gas danger.
JD Dispatching Winch are all explosion-proof for mine or surface mine car loading operation grouping and hauling carts in the middle of roadways and other supporting transport purpose.
JD Dispatching Winch are used plantary gear drive, have following features:compact structure, good rigidity, high efficiency, conveniency for installing and moving, flexible operation, smooth braking, low noise.

Parameter of JD-0.5 Explosion-Proof Dispatching Winch


Model	JD-0.5	JD-0.75	JD-1	JD-1.6	JD-4
Traction Force KN	7.5	7.5	10	17.6	30
Average Speed m/s	0.71	0.71	0.78	1.40	1.44
Dia of Wire Rope mm	9.3	9.3	12.5	15	20
Drum Size mm	200 300	200 300	224 304	310 400	620 580
Rope Capacity m	250	250	400	440	480
Total Reduction Ratio	34.81	34.81	41	32.5	31.8
Motor Type	YB132S-4-B5	YBJ-11.4	YBJ45-4	YBJ40-4	YB2-132S-4
Motor Power KW	5.5	11.4	25	40	5.5
Motor Rev Rev/min	1440	1460	1470	1470	1440
Motor Voltage V	380/660	380/660V	380/660V	380/660V	380/660V
Di mention  mm L W H	1085 730 697	1085 730 697	1073 766 727	1448 1255 1260	1900 2350 1370
Weight KG	400	400	578	1370	2800

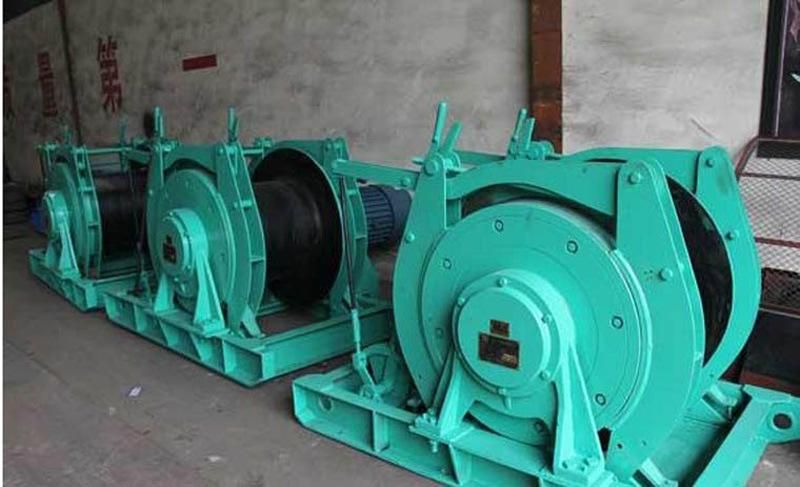

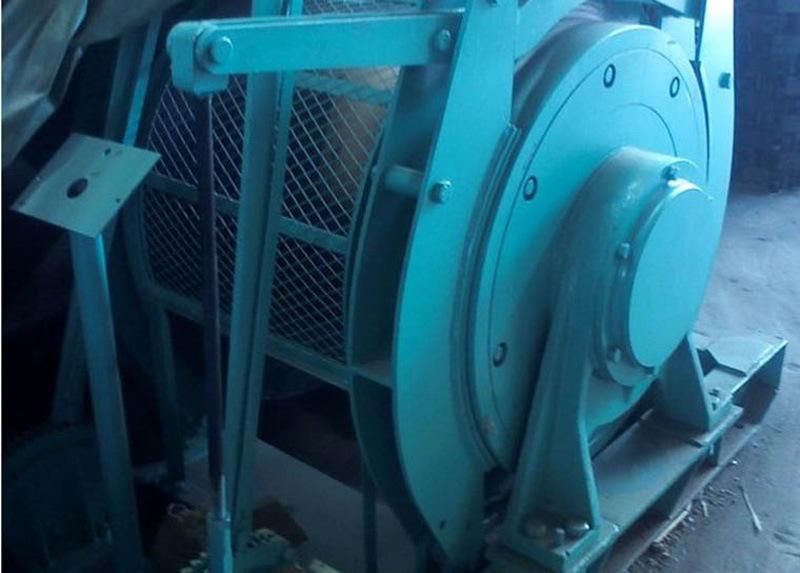

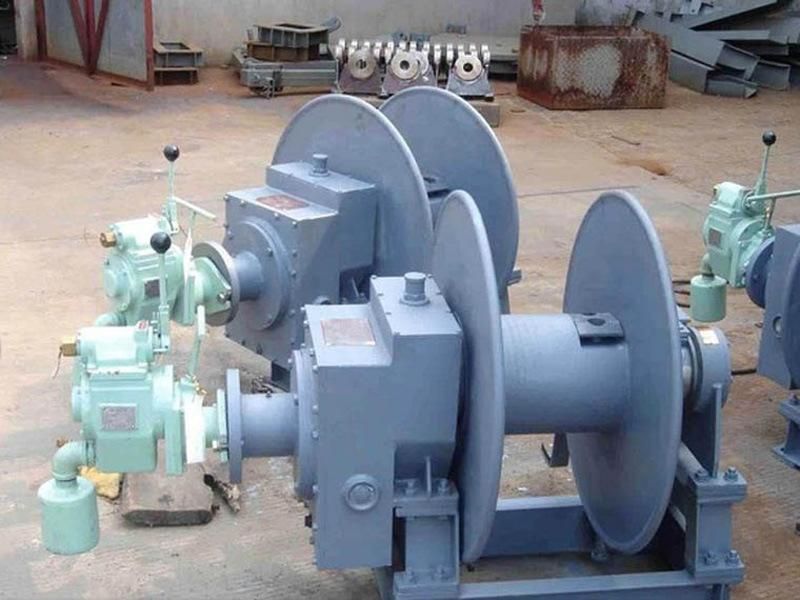

Photos of JD-0.5 Explosion-Proof Dispatching Winch
