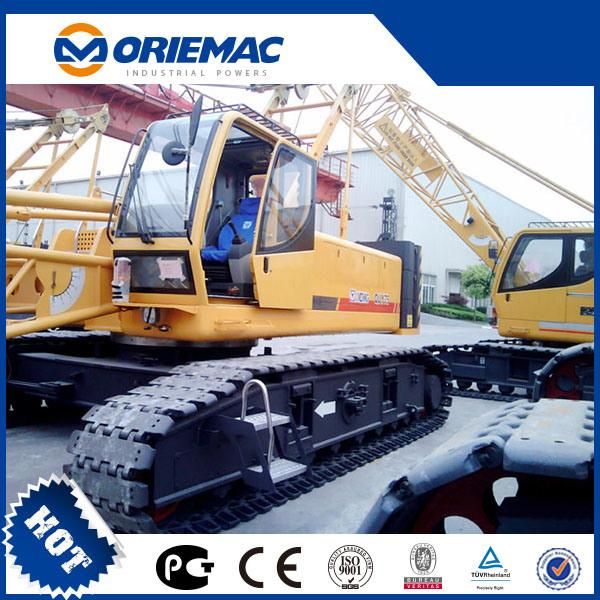

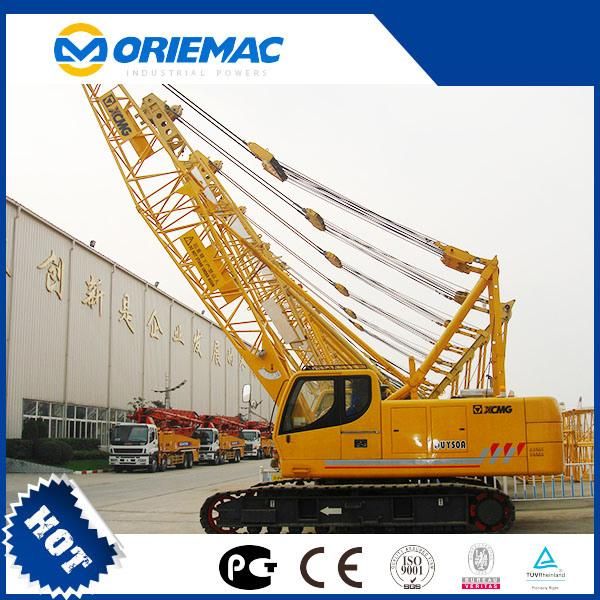

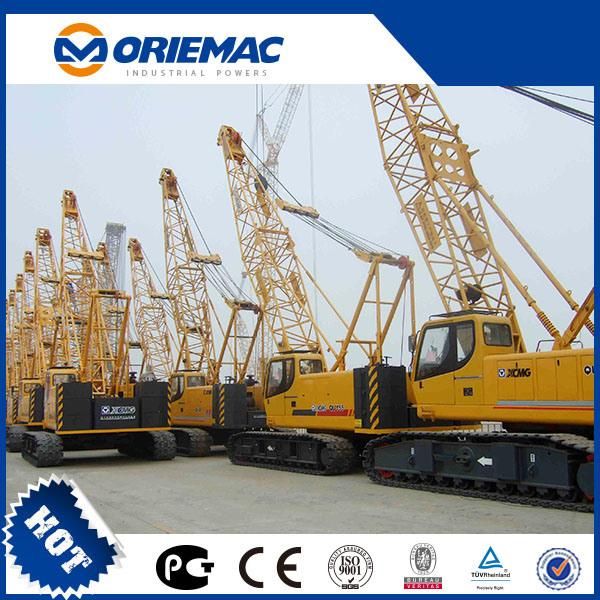

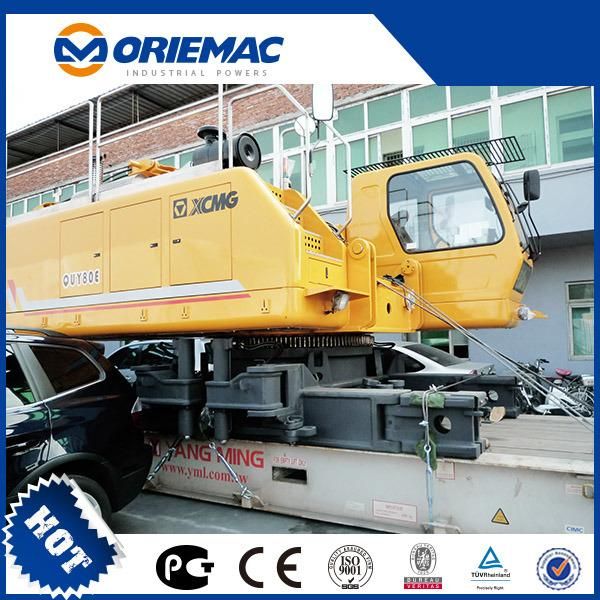

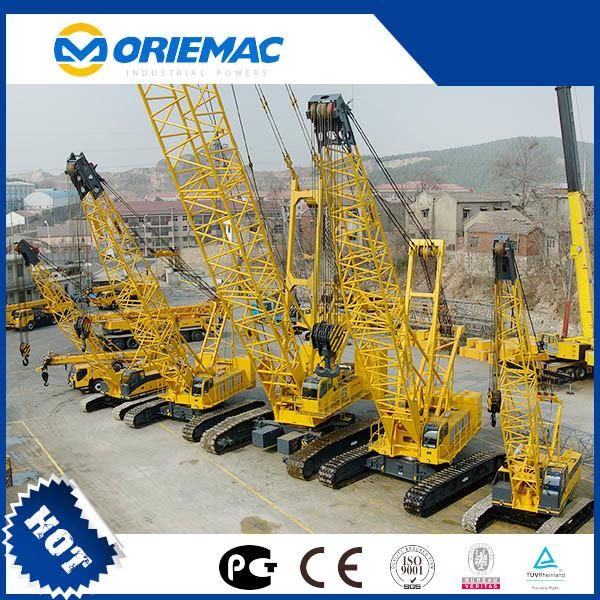

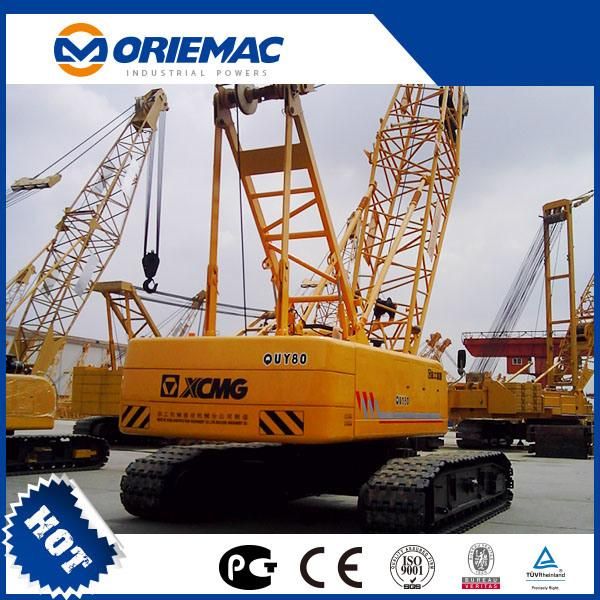

Brand New 80 Tons Crawler Crane Quy80
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Rated Loading Capacity：80ton
- Rated Lifting Moment：337kn.M
- Warranty：1 Year
- Engine Power：200kw
- Transport Package：Nude, Suitable for Shiping
- Specification：RoRo
Base Info
- Model NO.：QUY80
- Trademark：Oriemac
- Origin：Shanghai, China
- HS Code：84295100
- Production Capacity：500sets,Month
Description
Items Unit Parameters Max.rated hoisting capacity t 80 Max. hoisting torque kN.m 3375 Length of boom frame m 13~58 Luffing angle of boom ° -3~80 Single line speed Main hoisting system m/min 0-120 Auxiliary hoisting system m/min 0-120 Luffing system m/min 0-57 Gradeability % 30 Swing speed r/min 0-2 Travel speed km/h 0-1.2 Ground pressure MPa 0.087 Max.engine power kW 200 Length of jib m 9-18 Installation angle of jib ° 10/30 Overall weight (Main lifting hook, 13m boom) t 78 Max.weight of base machine for transport t 28 Max.dimension (of main machine) for transport (L×W×H) m 6.5×3.3×3.5
