• Model NO.：GTBZ42
• Feature：Boom Lift
• Certification：CE, ISO 9001
• Structure：Boom Lift
• Working Height Maximum：43.7m
• Horizontal Reach Maximum：23m
• Below Ground Reach：6.2m
• Platform Length：0.91m
• Platform Width：2.44m
• Wheelbase：3.96m
• Lift Capacity：340kg
• Hydraulic Tank Capacity：265L
• Fuel Tank Capacity：150L
• Transport Package：Bulk
• Specification：SGS CE
• Trademark：KUDAT
• Origin：China
• Production Capacity：100units,Month

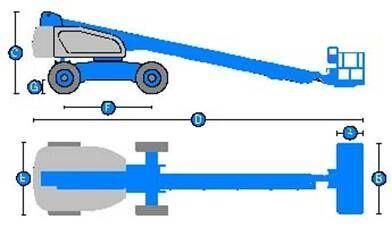

MODEL                                           KDBZ39            KDBZ42MEASUREMENTS                      Metric  US  MetricUSWorking height maximum*41m135ft43.7m143ftPlatform height maximum39.3m129ft42m138ftHorizontal reach maximum**21.5m60ft23m75ftBelow ground reach4.8m15ft9in6.2m20ft4inAPlatform length-8ft model0.91m3ft0.91m3ftPlatform length-6ft model0.76m2ft6in0.76m2ft6inBPlatform width-8ft model2.44m8ft2.44m8ftPlatform width -6ft model1.83m6ft1.83m6ftCHeight-stowed3.1m10ft3.11m10ftDLength-stowed13.65m45ft13m42ft7inEWidth -axle retracted2.49m9ft2.49m9ftWidth-axle extended3.9m12ft8in3.9m12ft8inFWheelbase3.96m13ft3.96m13ftGGround clearance-center0.43m1ft5in0.43m13ftPRODUCTIVITY                                   ()Lift capacity (restricted)480kg1056lbs480kg1056lbs()Lift capacity (non-restricted)340kg748lbs250kg550lbsPlatform rotation160°160°Jib rotation_135°Turntable Swing360°continuous360°continuous-Turntable tailswing -axle retracted1.82m6ft1.82m6ft-Turntable tailswing -axle extended1.11m3ft7in1.11m3ft7inTravel speed -stowed4.4km/h2..73mph4.4km/h2..73mphTravel speed -raised or extended1.1km/h0.68mph1.1km/h0.68mphGradeability -stowed(4WD/2WD)38%/27%38%/27%-                  inside
Turning radius - axle retracted         outside3.13m10ft4in3.13m10ft4in5.43m17ft9in5.43m17ft9in-                  inside
Turning radius - axle extendeded      outside3.13m10ft4in3.13m10ft4in6.75m22ft6.75m22ftControls24V DC Proportional24V DC ProportionalSolid tires385/65D 22.5385/65D 22.5POWER                                                                                                Power sourceCummins B3.3 80 HP (60kw)
Lovol 1004-4 78 hp (58kw)
Perkins 400 76 hp (56kw)Auxiliary power unit24V DC24V DCHydraulic tank capacity265L265LFuel tank capacity150L150LWEIGHT ***                                                                                       2 2WD20820kg45800lbs21120kg46460lbs44WD20900kg45980lbs21200kg46640lbsSTANDARDS COMPLIANCE                   EN280JG/T5101Q/ADZV001-2008
