• Model NO.：XZJ5060JGK
• Dimension：7660*2000*2920mm
• Engine Model：Jx493zlq3
• MOQ：One Set
• Transport Package：Suitable Package for Shipment
• Specification：ISO9001-2000
• Trademark：EVANGEL
• Origin：Jiangsu, China
• HS Code：8428909090
• Production Capacity：200000sets,Month

Basic Info.

Model NO. XZJ5060JGK Dimension 7660*2000*2920mm Engine Model Jx493zlq3 MOQ One Set Transport Package Suitable Package for Shipment Specification ISO9001-2000 Trademark EVANGEL Origin Jiangsu, China HS Code 8428909090 Production Capacity 200000sets/Month

Product Description

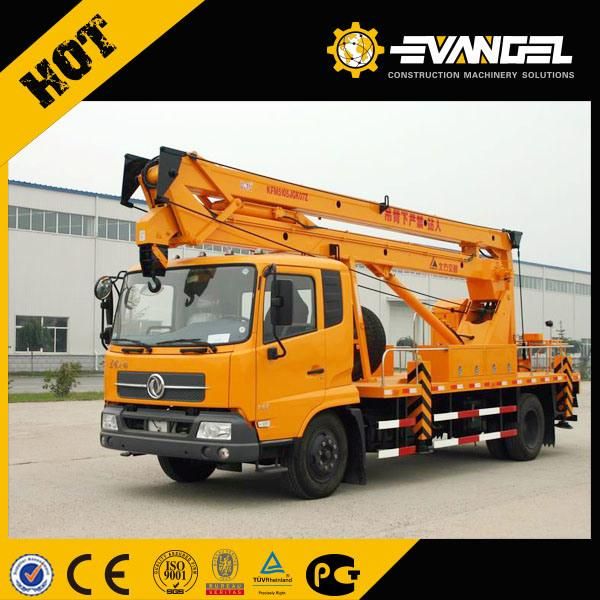

 17m Aerial working platform XZJ5060JGK

Originally imported Germany Hawe solenoid valve (main control valve), proportional valve, and proportional handle.
Electro-hydraulic proportional control, stepless speed regulation, and superior operational performance.
The turntable and work platform can work together, and both the operation can achieve remote control of the engine.
The internally mounted leveling system ensures that the work platform always keeps level.
The horizontal and vertical extension and withdrawal of the four outriggers can be independently controlled, featuring good adaptability.
There is elevation angle limit device for the upper arm, which can avoid danger.
The interlock between the superstructure and undercarriage and the soft outrigger protection function ensure safe operation.
When the horizontal outriggers are not extended, the slewing of the work arm is limited, while it can still be lifted or lowered, which ensures safety and improves efficiency.
The emergency pump is available.
The electronic timer can add up the work time for timely maintenance.
The imported key parts has high reliability, good performance and long service life.
The synchronic telescopic arm structure has high work efficiency and wide work range.
The multifunction integrated handle is very convenient, smooth and comfortable to operate.
The PLC control has superior safety performance like automatic amplitude limit and danger alarm function.
The special energy-saving design ensures that the engine is automatically adjusted to ideal speed during engine idling.
The interlock between the superstructure and undercarriage can effectively avoid misoperation, which is safe and reliable.
The large outrigger span features good stability, and the outriggers can be operated simultaneously or independently, which can be applicable to various kinds of work conditions.
The emergency power unit can effectively cope with unexpected failures.
The work platform is mounted at the rear part, which is convenient to enter or exit the cab; And it also reduces the gravity of the whole machine and improves travel performance.
The work platform can slewing +/-90 degree; , which is convenient for the aerial work.
Convenient one button extension/withdrawal function.


Vehicle Model	XZJ5060JGK
Max Operating Height	17.3m
Max Operating Radius	8.3m
Rated Load of Platform	200Kg
Slewing Angle	± 360°
Max Operating Radius on Maximum Operating Height	2.7m
Max Operating Height on Maximum Operating Radius	9.6m
Max Lifting Capacity	2000Kg
Max Lifting Height	9.2m
Dimension in Driving( L × W × H)	7660× 2000× 2920(mm)
Chassis Model	JX1060TSG23
Engine Model	JX493ZLQ3
Engine Power	85kw
Passengers	2+3
