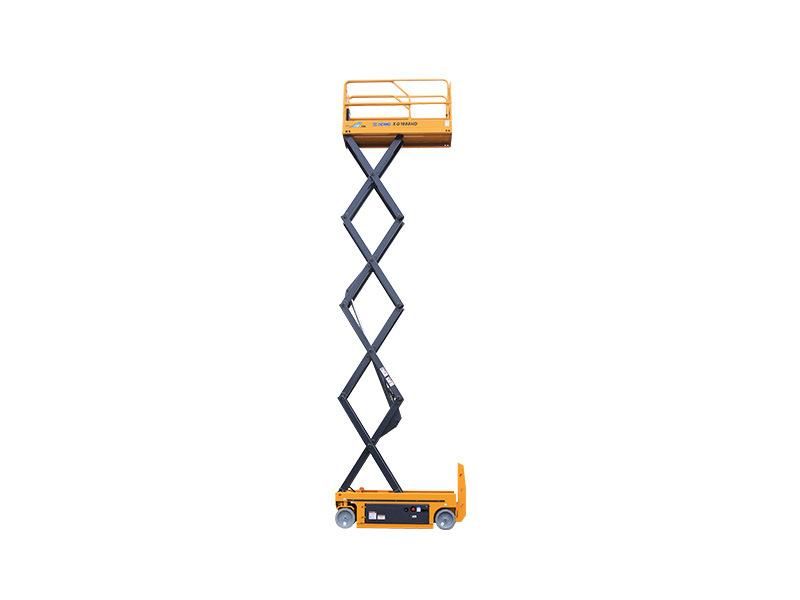

• Model NO.：GBTZ8
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Maximum Working Height：13.8m
• Maximum Load Capacity：320kg
• Extension Platform Load：115kg
• Platform Size：2276*1120*1254
• Total Weight：3150kg
• Transport Package：Nude Packing
• Specification：8m
• Trademark：Oriemac
• Origin：China
• HS Code：8427109000
• Production Capacity：100units Per Month

ItemUnitParametersa Overall Lengthmm2485b Overall Widthmm1170c Overall Height (Guardrail folding)mm1908d Wheel Basemm1871Maximum Working Heightm12Maximum Platform Heightm10Maximum Load Capacitykg320Extension Platform Loadkg115Platform Sizemm2276×1120×1254PlatformExtension Lengthmm900Lifting Speed of Working Platforms56-66Falling Speed of Working Platforms43-58Total Weightkg3000Travel Speed (High Speed)km/h3.5Travel Speed (low Speed)km/h0.8Max. Travel Platform Heightm10Minimum Turning Radiusm0Minimum Ground Clearance (Pot Hole Protector Rises/Falls)mm101/20Maximum Grade Ability%25Tire Specification_Traceless solid38.1cm×12.7cmBatteryV/(Ah)4×6(240)ChargerA30Warning Angle of Inclination°1.5 (Both sides)°3(Front or rear)
