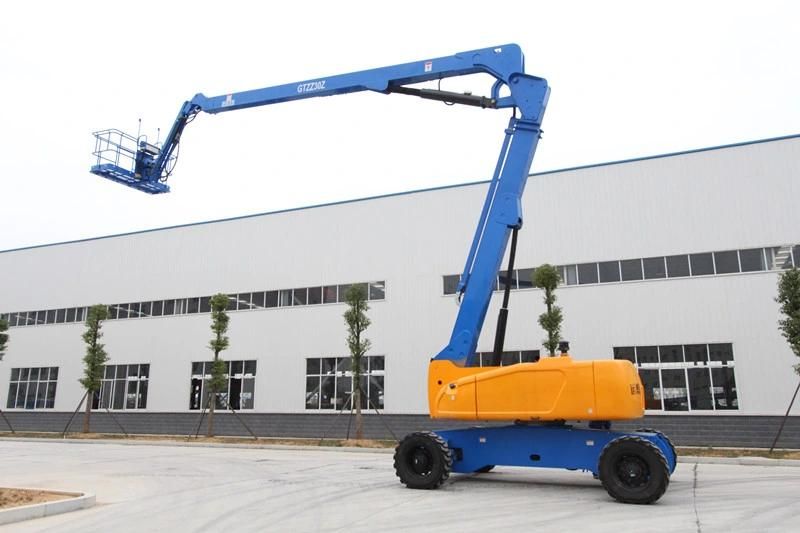

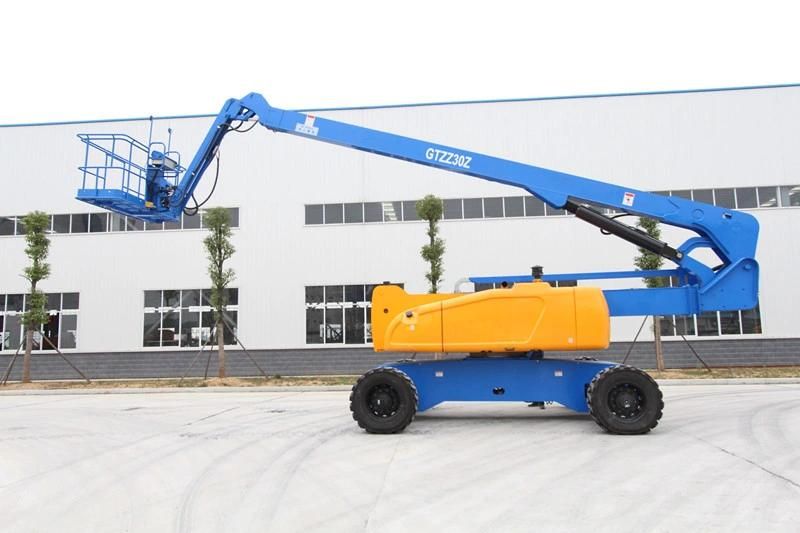

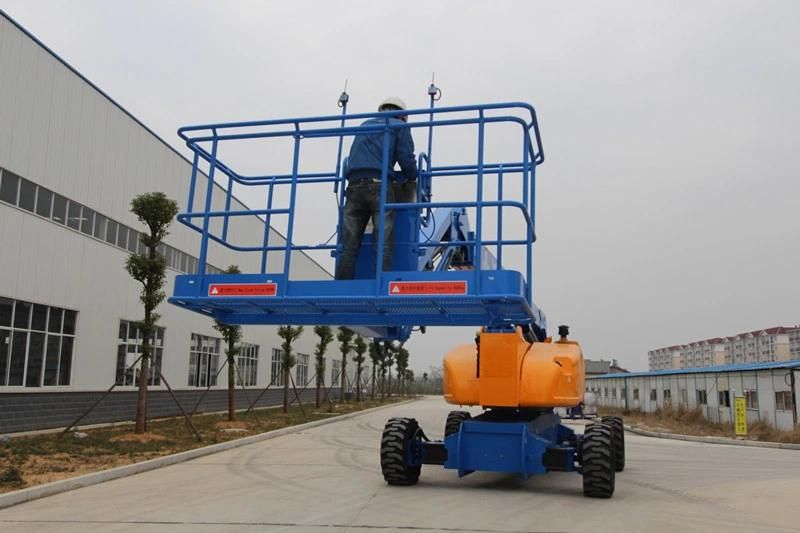

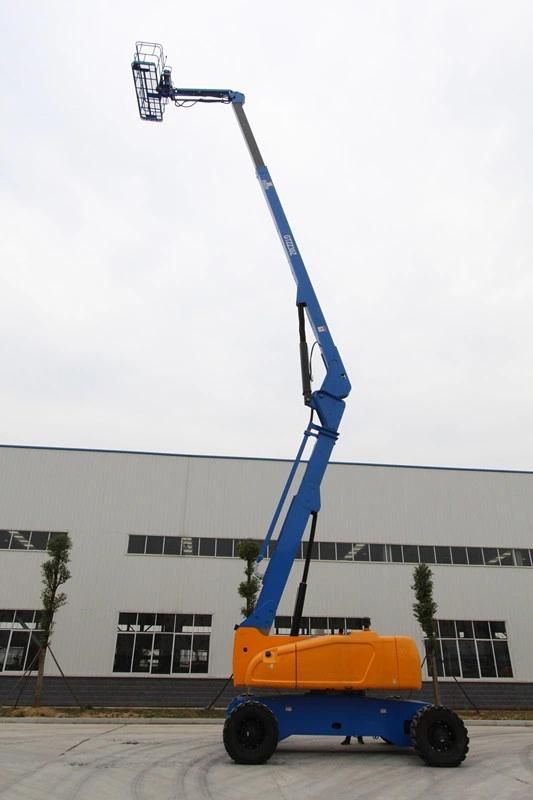

• Model NO.：GTZZ30Z
• Moves：Self-propelled
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Insulating
• Certification：CE, ISO 9001
• Working Height：32m
• Platform Height：30m
• Safe Load：200kgs
• Size of Platform：2.44*0.91m
• Outreach：13.4m
• Rotation of Jib：180°
• Rotation of Work Cage：180°
• Rotation Range：360°
• Overall Length ：8.47m
• Total Weight ：13000kg
• Transport Package：Nude
• Specification：CE
• Trademark：KUDAT
• Origin：China
• HS Code：8428909090
• Production Capacity：100units,Month
• Package size per unit product：10.06cm * 2.49cm * 12.20cm
• Gross weight per unit product：18000.000kg

Basic Info.

Model NO. GTZZ30Z Moves Self-propelled Driven Type Hydraulic Running Mode Moving Feature Insulating Certification CE, ISO 9001 Working Height 32m Platform Height 30m Safe Load 200kgs Size of Platform 2.44*0.91m Outreach 13.4m Rotation of Jib 180° Rotation of Work Cage 180° Rotation Range 360° Overall Length  8.47m Total Weight  13000kg Transport Package Nude Specification CE Trademark KUDAT Origin China HS Code 8428909090 Production Capacity 100units/Month

Packaging & Delivery

Package size per unit product 10.06cm * 2.49cm * 12.20cm Gross weight per unit product 18000.000kg

Product Description

KD-R36 Main Specification:

1.Technical data

Type	KD-GTZZ30Z
working height  (m)	32m
Platform height  (m)	30m
Safe load     (kg)	230
Size of platform  (m)	1.83×0.76
Outreach (m)	14.30
Rotation of jib	180°
Rotation of work cage	180°
Turntable Rotation	360° non continuous
Overall length     (m)	8.47
Overall width      (m)	0.92
Overall height     (m)	2.00
Total weight       (kg)	18000
Speed      (km/h)	0-1.5
Climbing	20%
Power	15KW Diesel engine + 2.2KW electric motor

2. Specification
-Made of high strength steel, and the European production of hydraulic, control, parts;
-Pipeline all the built-in, to avoid the sun and rain or foreign objects tangled;
-Shape lightweight, low pressure rubber tracks on the ground, can travel, work on any ground;
-Outrigger separately controlled to bypass obstacles in a limited space work;
-Reliable torque control to ensure that the vehicle will not roll;
-Wired remote control walks, working bucket with 220V outlet;
-Small size, compact and flexible;
