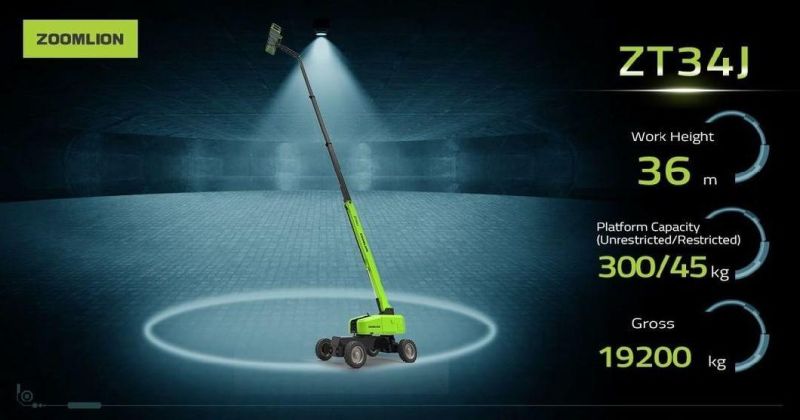

• Model NO.：ZT34J
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Work Height：36m
• Platform Height-Elevated：34m
• Horizontal Outreach：23.50m
• Wheelbase：3.80m
• Platform Capacity：300,454kg
• Drive Speed (Raised)：5.5km,H
• Platform Length：2.44m
• Platform Width：0.91m
• Engine：Kohler Kdi2504TCR
• Control Voltage：12V DC
• Gross：19200kg
• Transport Package：Nude Package
• Specification：13.50m*2.49m*3m
• Trademark：Zoomlion
• Origin：China
• HS Code：8428909090
• Production Capacity：1000

Main Specs of Telescopic Boom LiftsComply with CE/ANSI/GB StandardModelZT34JZT26JZT20JSizeWork Height36m28.20m22.75mPlatform Height34m26.20m20.75mHorizontal Outreach23.50m22.71m16.80mA - Stowed Length13.50m12.5m10.36mB - Stowed Width2.49m2.49m2.49mC - Stowed Height3m2.80m2.78mD - Platform Length2.44m2.44m2.44mE - Platform Width0.91m0.91m0.91mF - Wheelbase3.80m3.05m2.52mWheelbase2.05/3.41m2.11m2.13mG - Ground Clearance0.41m0.40m0.42mPerformancePlatform Capacity (Unrestricted/Restricted)300/454kg300kg/454kg300kg/454kgDrive Speed (Working)5.5km/h5.5km/h6.0km/hGradeability45%(24°)45%   (24°)45%   (24°)Turning Radius (Inside)2.80m3.66m2.4mTurning Radius (Outside)5.70m6.86m5.4mTurntable Swing360°continuous360°continuous360°continuousPlatform Rotation±90°±90°±90°Tail Swing1.88m1.60m1.45mJib (Range of Articulation)130°(_55°~75°)130°(_55°~75°)135°(_60°~75°)Max. Working Slope3°3°3°Max. Wind Speed12.5m/s12.5m/s12.5m/sPowerEngineKohler   KDI2504TCRDeutz TD2.9 L4/ QSF2.8Deutz D447 L4/ 404D-22TFuel Tank Capacity200L150L130LControl Voltage12V DC12V DC12V DCHydraulic Tank Capacity250L150L150LDrive Mode4WD4WD4WDSteering ModeFront wheel/Rear wheel/CrabFront wheelFront wheelTireTypeIN445/50D710
Foam-filled Tires15-625 Foam-filled Tires355/55D-625   Foam-filled TiresWeightGross19200kg18900kg12200kgHighlightsBetter work envelop performance, 10% larger than competitorZoomlion AWM Remote Monitoring and Rental Management SystemSmart telematic control interface with self-diagnostic monitoring capabilityPlatform dual capacity design, up to 300/454 kgSmooth & stable boom extension technique controls the minimum stable extending speed at 0.015 m/s

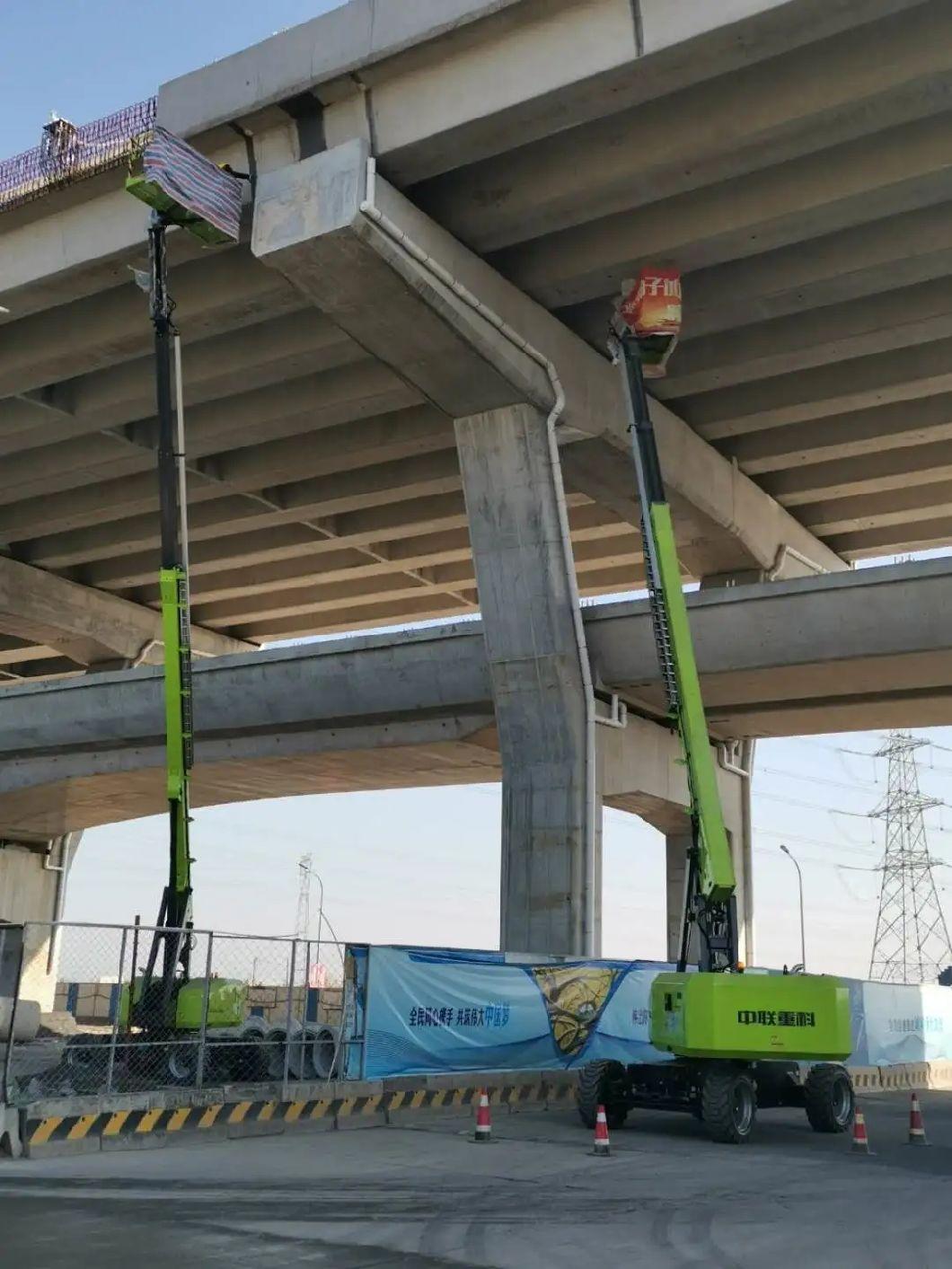

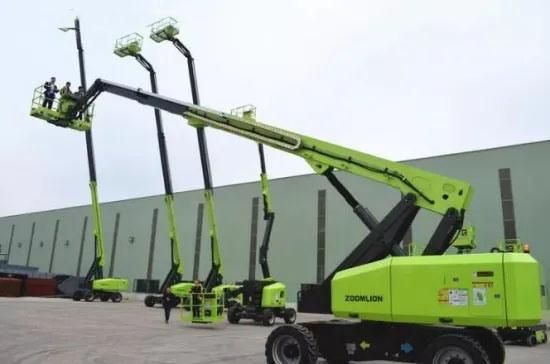

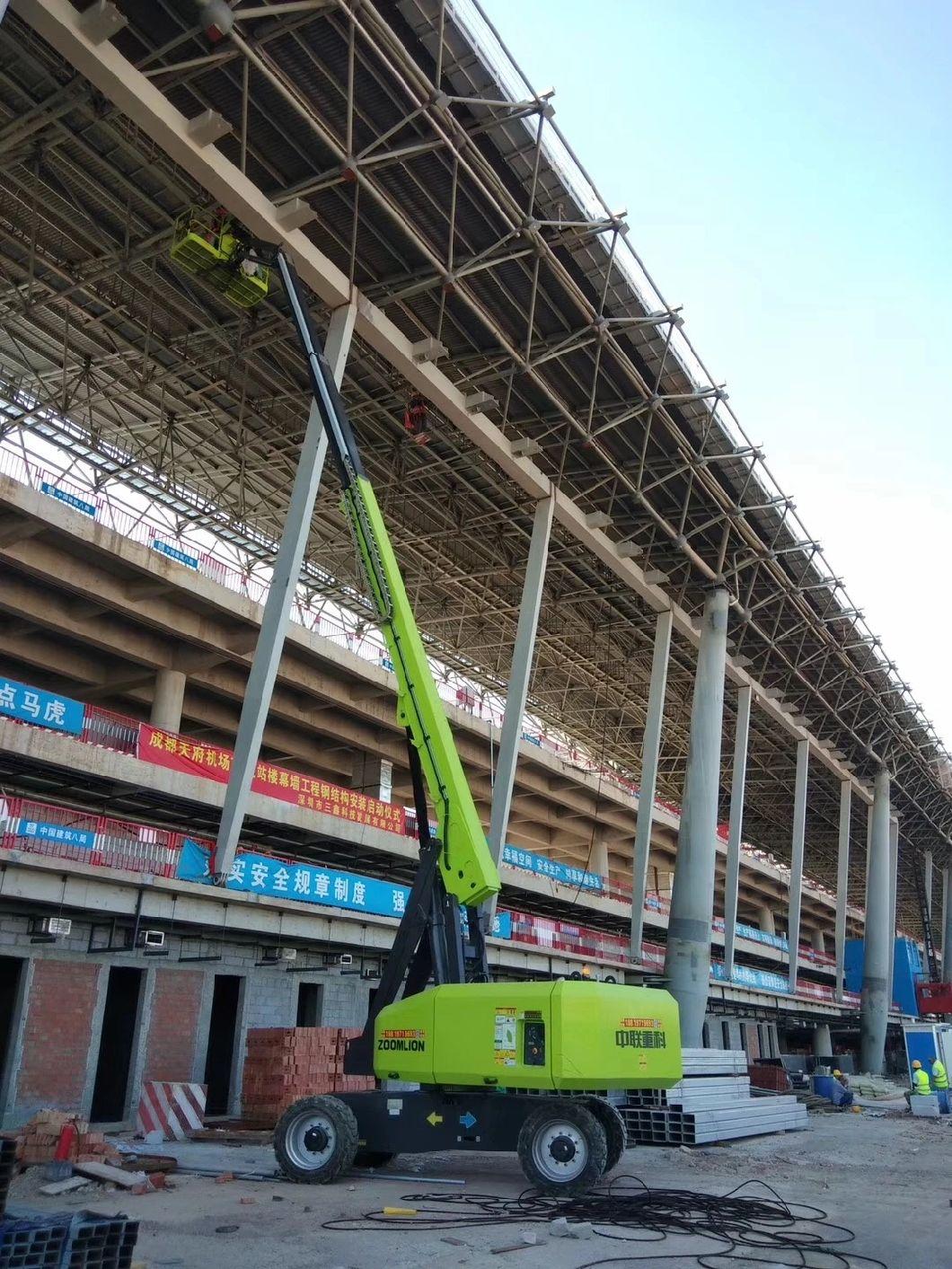

Pictures:
