• Model NO.：ZS0808DC
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Work Height：10.00m
• Platform Height-Elevated：8.00m
• Platform Dimension (Length)：2.30m
• Platform Dimension (Width)：0.81m
• Overall Height (Rails up)：2.35m
• Platform Capacity：230kg
• Max. Number of Workers：2
• Drive Speed (Raised)：0.8km,H
• up/Down Time：31s,40s
• Gross Weight：2090kg
• Battery：4X6V,225ah
• Transport Package：Nude Package
• Specification：2.30m*0.81m*2.35m
• Trademark：Zoomlion
• Origin：China
• HS Code：8428909090
• Production Capacity：1000

Main Specs of Scissor Lifts (DC Series)Comply with CE/ANSI/GB StandardModelZS1414DCZS1212DCZS1012DCZS0808DCZS0608DCZS0607DCSizeWork Height15.7m13.80m11.80m10.00m8.00m7.87mA - Platform Height13.7m11.80m9.80m8.00m6.00m5.87mB - Platform Height (Stowed)1.53m1.46m1.33m1.20m1.07m1.05mC - Platform Dimension (Length)2.67m2.30m2.30m2.30m2.30m1.65mD - Platform Dimension (Width)1.12m1.12m1.12m0.81m0.81m0.74mPlatform Extension0.9m0.91m0.91m0.91m0.91m0.91mE - Overall Height (Rails Up)2.65m2.59m2.46m2.35m2.22m2.20mOverall Height (Rails Down)2.1m2.05m1.92m1.85m1.72m1.79mF - Overall Length2.87m2.49m2.49m2.49m2.49m1.85mG - Overall Width1.4m1.15m1.15m0.81m0.81m0.76mH Wheelbase2.22m1.85m1.85m1.85m1.85m1.37mI - Ground Clearance (Stowed)0.11m0.11m0.11m0.11m0.11m0.06mJ - Ground Clearance (Raised)0.02m0.02m0.02m0.02m0.02m0.016mPerformancePlatform Capacity260kg350kg350kg230kg380kg230kgCapacity on Deck Extension113kg113kg113kg113kg113kg113kgMax. Number of Workers232222Drive Speed (Stowed)4km/h4km/h4km/h4km/h4km/h4km/hDrive Speed (Raised)0.8km/h0.8km/h0.8km/h0.8km/h0.8km/h0.8km/hTurning Radius (Inside)0.1m0.1m0.1m0.1m0.1m0.1mTurning Radius (Outside)2.6m2.2m2.2m2.1m2.1m1.6mLifting Motor24V/4.5KW24V/4.5KW24V/4.5KW24V/3.3KW24V/3.3KW24V/3.3KWDrive Motor24V/1.5KW24V/1.5KW24V/1.5KW24V/1.5KW24V/1.5KW24V/0.75KWUp/Down Time88/60s62s/42s60s/35s31s/40s28s/35s20s/24sGradeability25%25%(14°)25%(14°)25%(14°)30%(17°)25%(14°)Max. Working Slope (Lateral/Vertical)1.5°/3°1.5°/3°1.5°/3°1.5°/3°1.5°/3°1.5°/3°ControlProportional   ControlProportional   ControlProportional   ControlProportional   ControlProportional   ControlProportional   ControlDriveFront WheelsFront WheelsFront WheelsFront WheelsFront WheelsFront WheelsBrakeFront WheelsFront WheelsFront WheelsFront WheelsFront WheelsFront WheelsTire381mmX127mm381mm×127mm381mm×127mm381mm×127mm381mm×127mm323mm×100mmPowerBattery4×12V/300Ah4×12V/300Ah4×6V/240Ah4×6V/225Ah4×6V/225Ah4×6V/210AhCharger24V/30A24V/30A24V/30A24V/30A24V/30A24V/30AWeightGross3570kg3210kg2930kg2090kg1940kg1455kgHighlightsHigh PerformanceEasy Maintenance & ServiceThe efficiency of direct electric-driven almost doubles hydraulic pump-drivenCommon components and modular design, easy to maintenanceUp to 380kg platform capacity with better performance on-the-jobBilateral swing-out trays (battery & hydraulic), simple to serviceFront-wheel drive and brake offer mobility and versatilityRobust & build to last, reliable and safeIntelligent ConnectivityZoomlion AWM Remote Monitoring and Rental Management System quickly obtains equipment status and realizes on-line operation management. *FeaturesStandard FeaturesProportional   controlsDrivable at full heightAll motion alarmScissor maintenance propFold-down   handrailsCharging protection   systemFlashing amber beaconExtension deck (unidirectional)Self-closing entry gateAutobrake systemEmergency descent systemOn-board diagnosticActive pothole protection systemEmergency stop buttonHour meterOver tilt protective systemForklift pocketsZoomlion AWM Remote Monitoring and Rental Management System *GPS positioning and tracking   system *

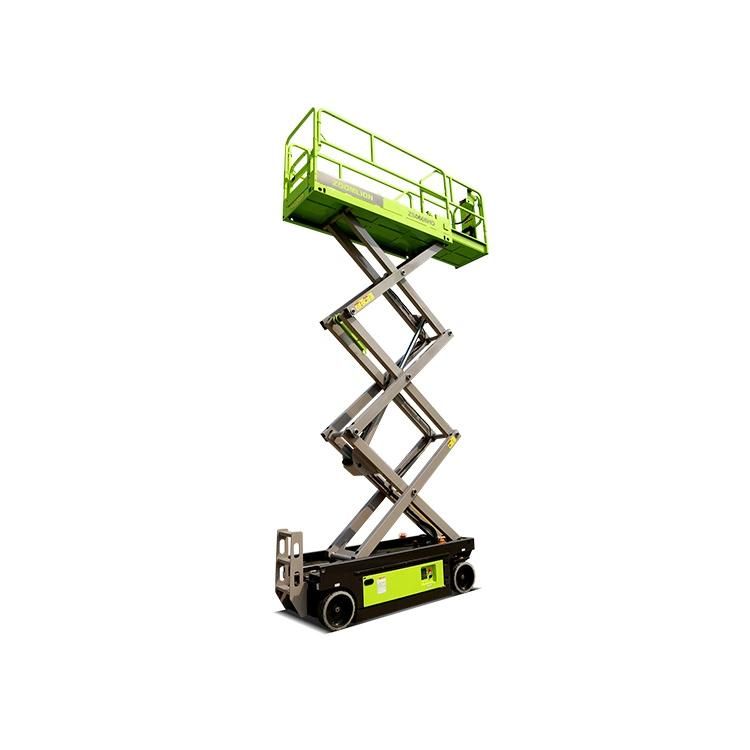

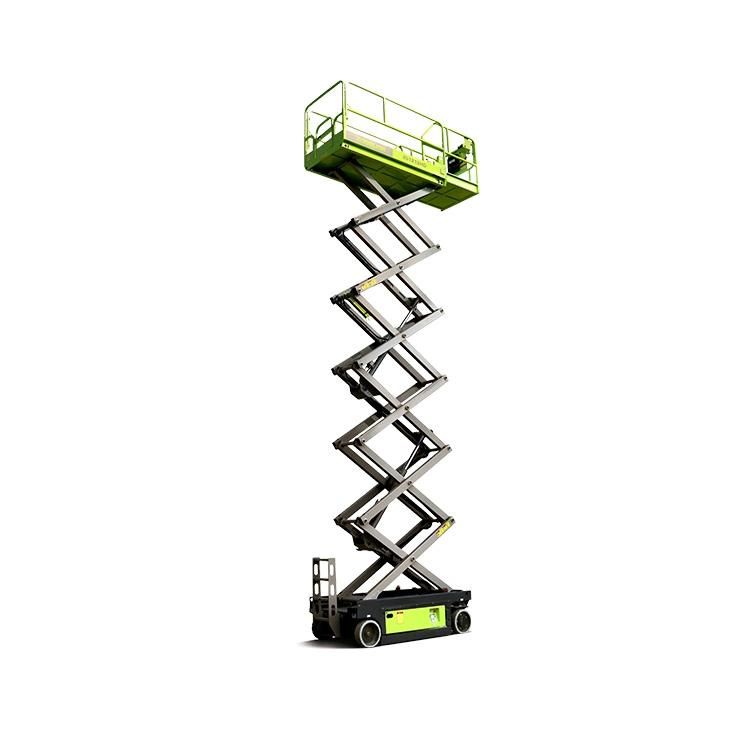

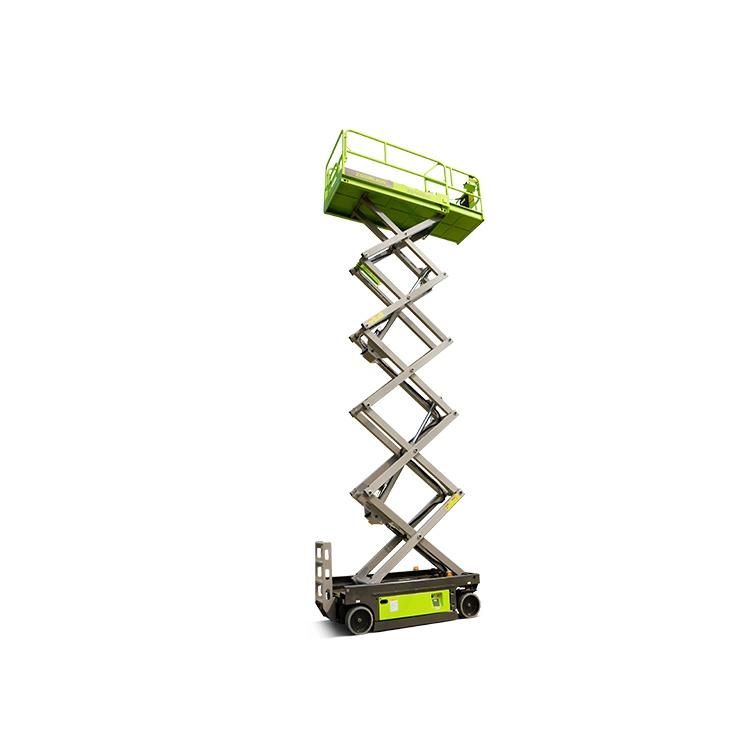

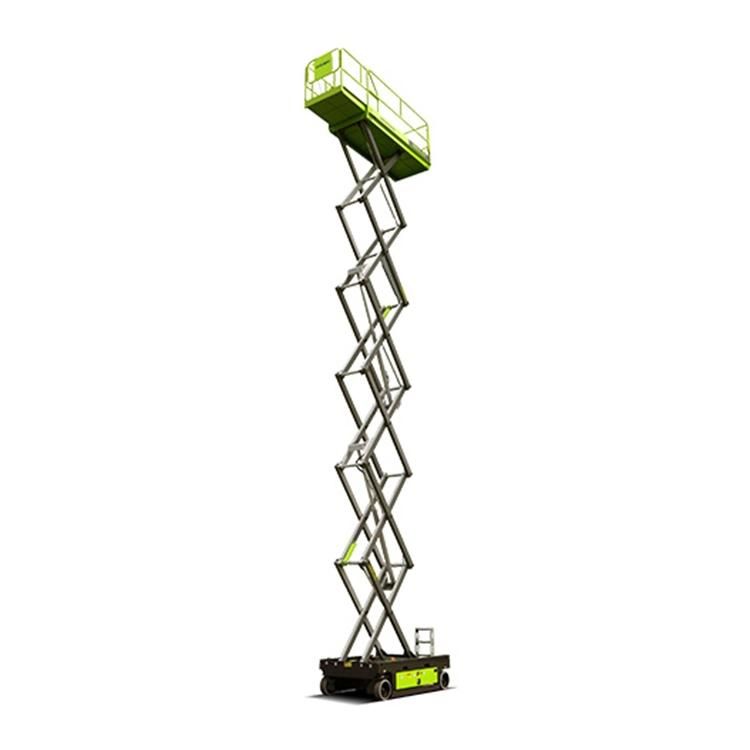

Pictures:
