• Model NO.：ZS1414HD
• Driven Type：AC
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Work Height：15.7m
• Platform Height-Elevated：13.7m
• Platform Length：2.67m
• Platform Width：1.12m
• Overall Height (Rails up)：2.65m
• Platform Capacity：260kg
• Max. Number of Workers：2
• Drive Speed (Raised)：0.8km,H
• up/Down Time：88,60s
• Gross Weight：3540kg
• Battery：4X12V,300ah
• Transport Package：Nude Package
• Specification：12300*3200*2788mm
• Trademark：Zoomlion
• Origin：China
• HS Code：8428909090
• Production Capacity：1000

Main Specs of Scissor Lifts (HD Series)Comply with CE/ANSI/GB StandardModelZS1414HDZS1212HDZS1012HDZS0808HDZS0608HDZS0607HDSizeWork Height15.7m13.80m11.80m10.00m8.00m7.87mA - Platform   Height-Elevated13.7m11.80m9.80m8.00m6.00m5.87mB - Platform   Height-Stowed1.53m1.46m1.33m1.20m1.07m1.05mC - Platform   Length2.67m2.30m2.30m2.30m2.30m1.65mD - Platform Width1.12m1.12m1.12m0.81m0.81m0.74mPlatform Extension0.9m0.91m0.91m0.91m0.91m0.91mE - Overall Height (Rails Up)2.65m2.59m2.46m2.35m2.22m2.20mOverall Height (Rails Down)2.1m2.05m1.92m1.85m1.72m1.79mF - Overall Length2.87m2.49m2.49m2.49m2.49m1.85mG - Overall Width1.4m1.15m1.15m0.81m0.81m0.76mH - Wheelbase2.22m1.85m1.85m1.85m1.85m1.37mI - Ground Clearance (Stowed)0.11m0.11m0.11m0.11m0.11m0.06mJ - Ground   Clearance (Raised)0.02m0.02m0.02m0.02m0.02m0.016mPerformancePlatform Capacity260kg350kg350kg230kg380kg230kgCapacity on Deck Extension113kg113kg113kg113kg113kg113kgMax. Number of Workers232222Drive Speed (Stowed)3.5km/h3.5km/h3.5km/h3.5km/h3.5km/h3.5km/hDrive Speed (Raised)0.8km/h0.8km/h0.8km/h0.8km/h0.8km/h0.8km/hTurning Radius (Inside)0.1m0.1m0.1m0.1m0.1m0.1mTurning Radius (Outside)2.6m2.2m2.2m2.1m2.1m1.6mUp/Down Drive Motor24V/4.5KW24V/4.5KW24V/4.5KW24V/3.3KW24V/3.3KW24V/3.3KWUp/Down Time88/60s62s/42s60s/35s31s/40s28s/35s20s/24sGradeability25%25%(14°)25%(14°)25%(14°)30%(17°)25%(14°)Max. Working Slope (Lateral/Vertical)1.5°/3°1.5°/3°1.5°/3°1.5°/3°1.5°/3°1.5°/3°ControlProportional   ControlProportional   ControlProportional   ControlProportional   ControlProportional   ControlProportional   ControlDriveFront WheelsFront WheelsFront WheelsFront WheelsFront WheelsFront WheelsBrakeRear WheelsRear WheelsRear WheelsRear WheelsRear WheelsRear WheelsTire∅381mmX127mmф381mm×127mmф381mm×127mmф381mm×127mmф381mm×127mmф305mm×114mmPowerBattery4×12V/300Ah4×12V/300Ah4×6V/240Ah4×6V/225Ah4×6V/225Ah4×6V/210AhCharger24V/30A24V/30A24V/30A24V/30A24V/30A24V/30AWeightGross3540kg3180kg2900kg2060kg1910kg1425kgHighlightsCost EffectivenessEasy Maintenance & Service

• • • • • • Intelligent Connectivity
            • FeaturesStandard FeaturesProportional controlsDrivable at full heightAll motion alarmScissor maintenance propFold-down handrailsCharging protection systemFlashing amber beaconExtension deck (unidirectional)Self-closing entry gateAutobrake systemEmergency descent systemOn-board diagnosticActive pothole protection systemEmergency stop buttonHour meterOver tilt protective systemForklift pocketsZoomlion AWM Remote Monitoring and Rental Management System *GPS positioning and tracking   system *Accessories & OptionsAirline to platformAC power to platformLoad sensing systemPlatform work lightsMaintenance-free battery

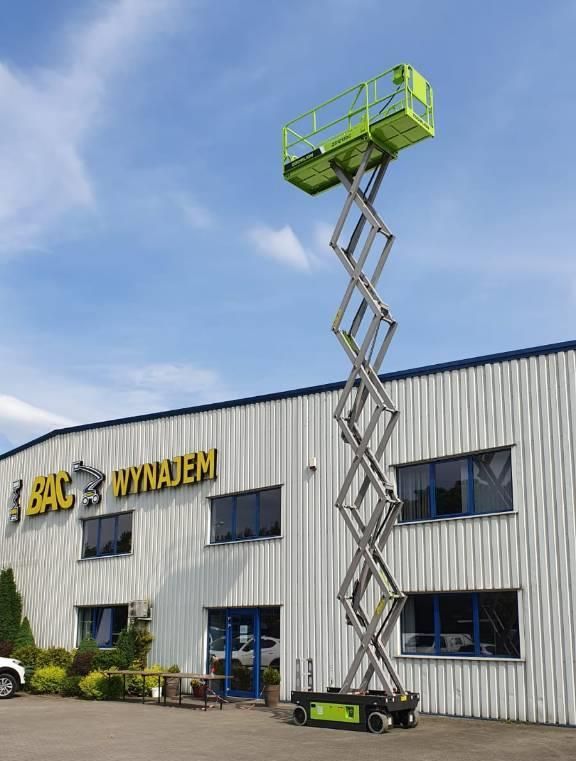

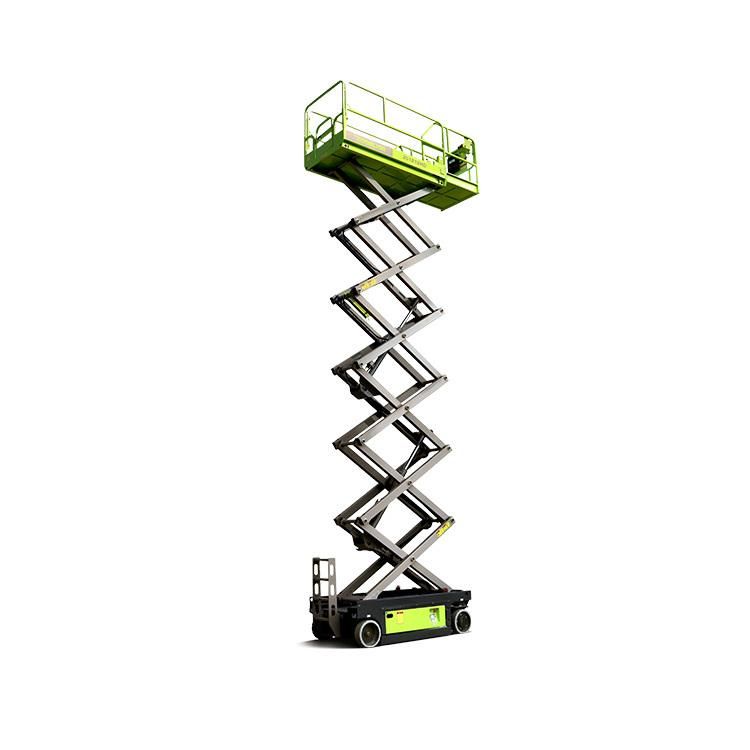

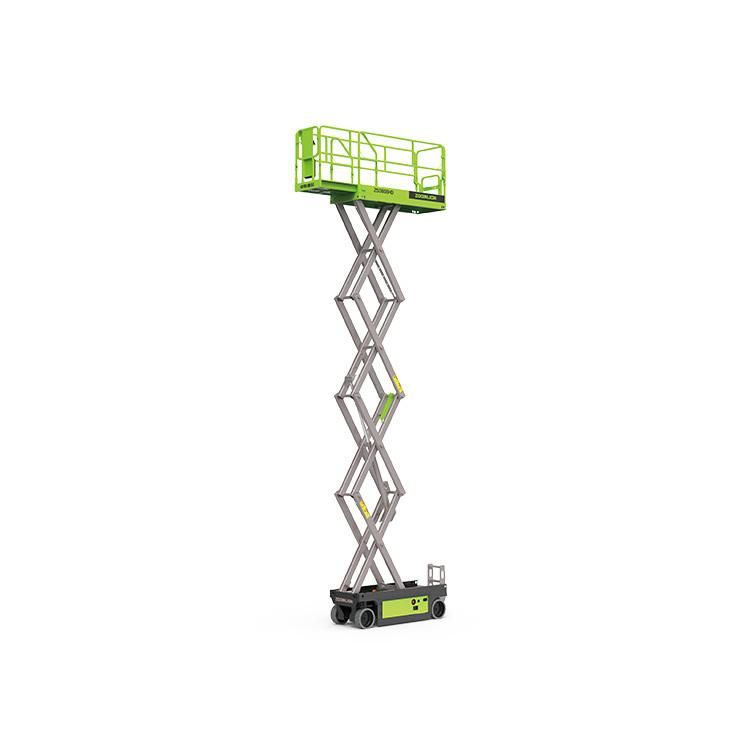

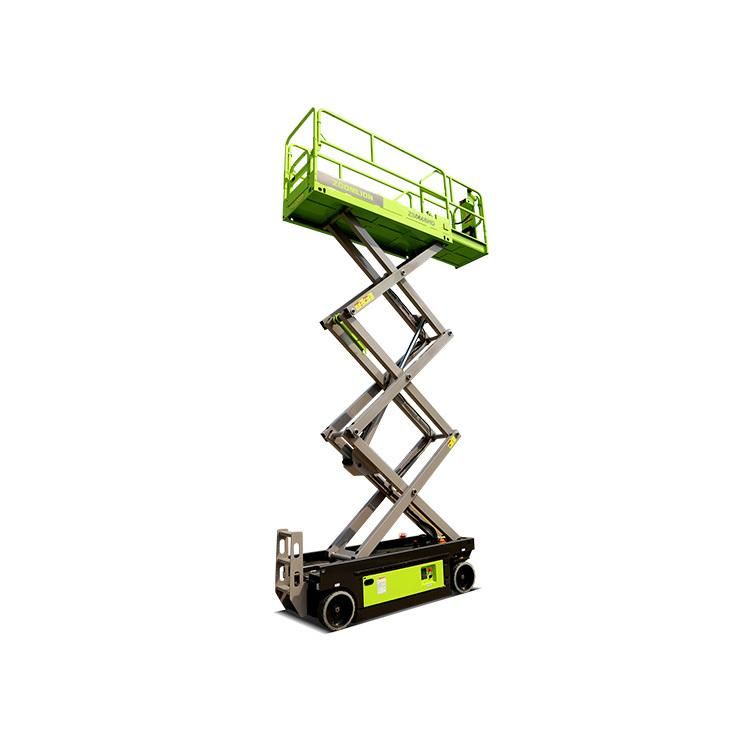

              Pictures:
