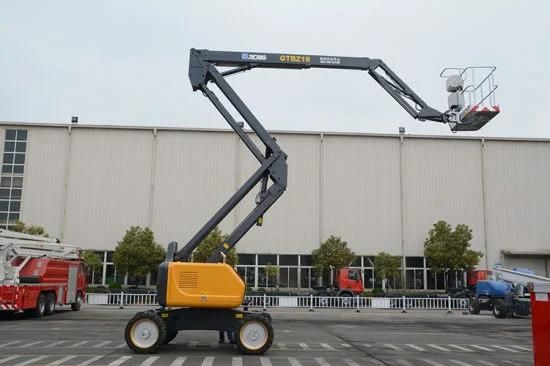

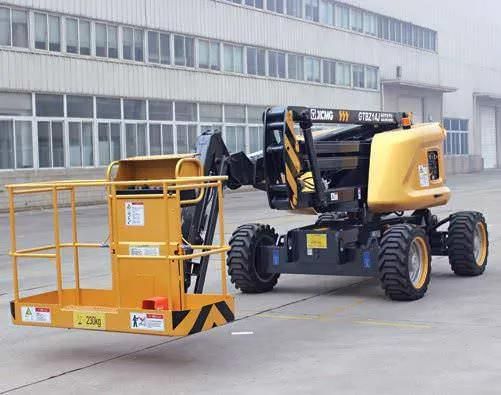

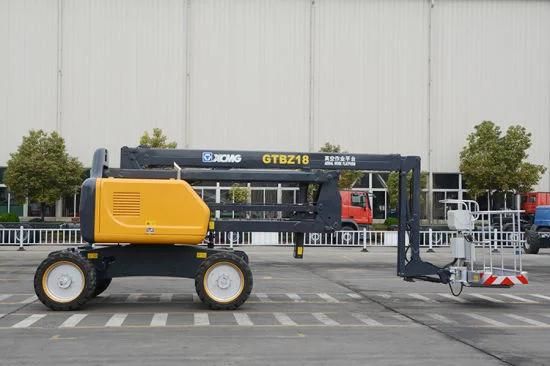

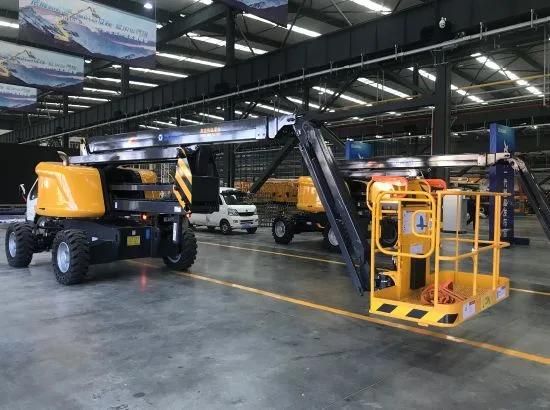

Oriemac Xga26 26m Articulated Mobile Elevating Aerial Working Platform for Sale
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Construction
- Lift Mechanism：Telescoping Lift
- Carrying Capacity：Middle-Level
- Moves：Self-propelled
- Driven Type：Hydraulic
- Running Mode：Moving
Base Info
- Model NO.：XGA26
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Model：Xga26
- Weight：16100kg
- Engine：Cummins
- Traveling Motor：Danfoss,Sunbun
- Maximum Working Range：18.9m
- Maximum Load Capacity：230kg
- Platform Size：2400*900mm
- Maximum Travel Speed：5km,H
- Transport Package：40′hq Container
- Specification：CE, ISO
- Trademark：ORIEMAC
- Origin：Jiangsu, China
- Production Capacity：1000unit,Month
Description
Parker21 Steering angle sensor 4 22 Platform inclination sensor 1 Xuzhou YUWEI 23 Weighing switch 4 Bengbu LIYE 24 Joystick 4 P+G 25 Foot switch 1 SUNS 26 Slewing bearing 1 Ma'anshan Fangyuan 27 Slewing reducer 1 Xuzhou Keyuan / Tai'an Fushen 28 Swing motor 1 Ningbo Zhongyi 29 Tire 4 Laizhou Exmile
IV.Main Technical Specification of XGA26
IV.Main Technical Specification of XGA26
| Item | Unit | Parameter |
| a. Overall length of complete machine | mm | 11280 |
| b. Overall width of complete machine | mm | 2490 |
| c. Overall height | mm | 3000 |
| d. Wheelbase | mm | 3000 |
| Max. working height | m | 26.38 |
| Max. platform height | m | 24.38 |
| Max. working range | m | 18.9 |
| Max. carrying weight | kg | 230 |
| Scope of luffing of No. 1 arm | ° | -1~ +70 |
| Scope of luffing of No. 2 arm | ° | -35~ +68 |
| Slewing angle of turntable | ° | 360° |
| Max.Tail swing | mm | 1330(boom lifting) |
| Dimension of platform | mm | 2400×900 |
| Slewing angle of platform | ° | 160 |
| Overall weight | kg | 17800 |
| Max. traveling speed | km/h | 5 |
| Min. turning radius | m | 4.2m(Four-wheel steering)/6.7m(Two-wheel steering) |
| Min. ground clearance | mm | 260 |
| Max. gradeability | % | 45 |
| Specification of tire | - | 18-625 |
| Engine model | - | Cummins QSF2.8 71BHP |
| Engine rated power | kW/(r/min) | 53/(2200) |
