• Model NO.：ATB0.2-12
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Power：2.2kw
• Min. Lifting Height：2.1m
• Platform Size：900*700mm
• Loading Capacity：200kg
• Lifting Power：AC , Battery , Diesel,Petrol , Dual Power
• Moving：by Car or Truck Tow
• OEM：Lift Height, Traction Drive, Lift Power
• Safety Parts：Manual Down, Double Brake System
• Hscode：8428909090
• Model No.：Atb0.2-12
• Specification Package Size：6200*1680*2100mm
• Outreach：6.5 M
• Use：Hydraulic Boom Lift Instead of Ladder
• Spare Parts：Oil Ring, Seal Ring, Travel Switch
• Original Country：China
• Transport Package：Film Packed and Load in One 20FT,40FT Container
• Specification：900*700mm
• Trademark：MORN LIFT
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：10 Units, Month

Basic Info.

Model NO. ATB0.2-12 Feature Explosion-Proof Certification CE, ISO 9001 Power 2.2kw Min. Lifting Height 2.1m Platform Size 900*700mm Loading Capacity 200kg Lifting Power AC / Battery / Diesel/Petrol / Dual Power Moving by Car or Truck Tow OEM Lift Height, Traction Drive, Lift Power Safety Parts Manual Down, Double Brake System Hscode 8428909090 Model No. Atb0.2-12 Specification Package Size 6200*1680*2100mm Outreach 6.5 M Use Hydraulic Boom Lift Instead of Ladder Spare Parts Oil Ring, Seal Ring, Travel Switch Original Country China Transport Package Film Packed and Load in One 20FT/40FT Container Specification 900*700mm Trademark MORN LIFT Origin Shandong, China HS Code 842890 Production Capacity 10 Units/ Month

Product Description

Model List



Model	Platform Size (mm)	Lifting Height (m)	Load Capacity (kg)	Working Radius (m)	Overall Size (mm)	Weight (kg)
ATB-8	900*700 mm	8 m	200 kg	5.5 m	5200*1680*2100	1850 kg
ATB-10	900*700 mm	10 m	200 kg	5.5 m	5200*1680*2100	1850 kg
ATB-12-12	900*700 mm	12 m	200 kg	6.5 m	6200*1680*2100	1950 kg
ATB-12-12	900*700 mm	12 m	200 kg	8 m	4700*1680*2100	2100 kg
ATB-14	900*700 mm	14 m	200 kg	8.5 m	5700*1680*2100	2400 kg
ATB-16	900*700 mm	16 m	200 kg	11 m	5700*1680*2200	2500 kg
ATB-18	900*700 mm	18 m	200 kg	11 m	6500*1800*2250	3800 kg

MORN China 16m 12m 14m 18m 20m Hydraulic towable telescopic electric boom man lift cherry picker lift spider platform lift

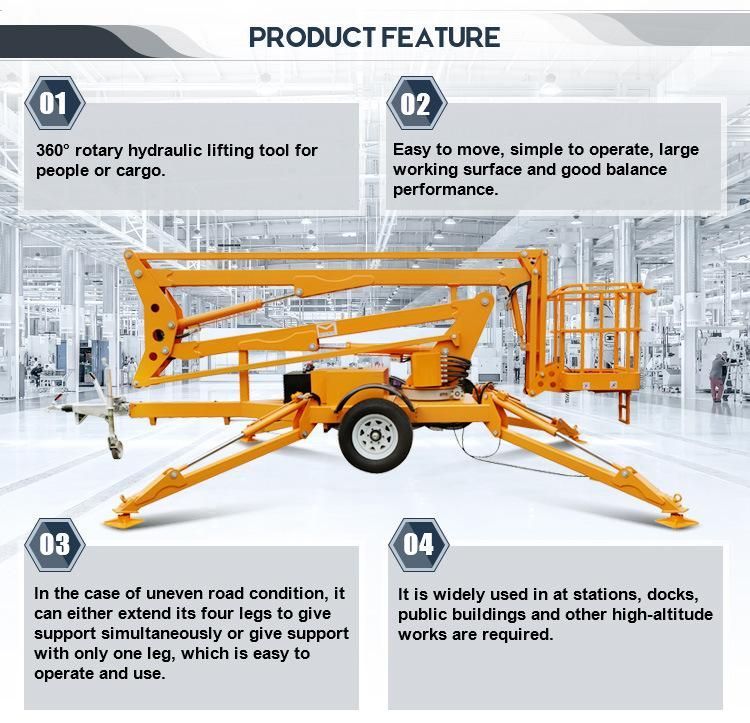

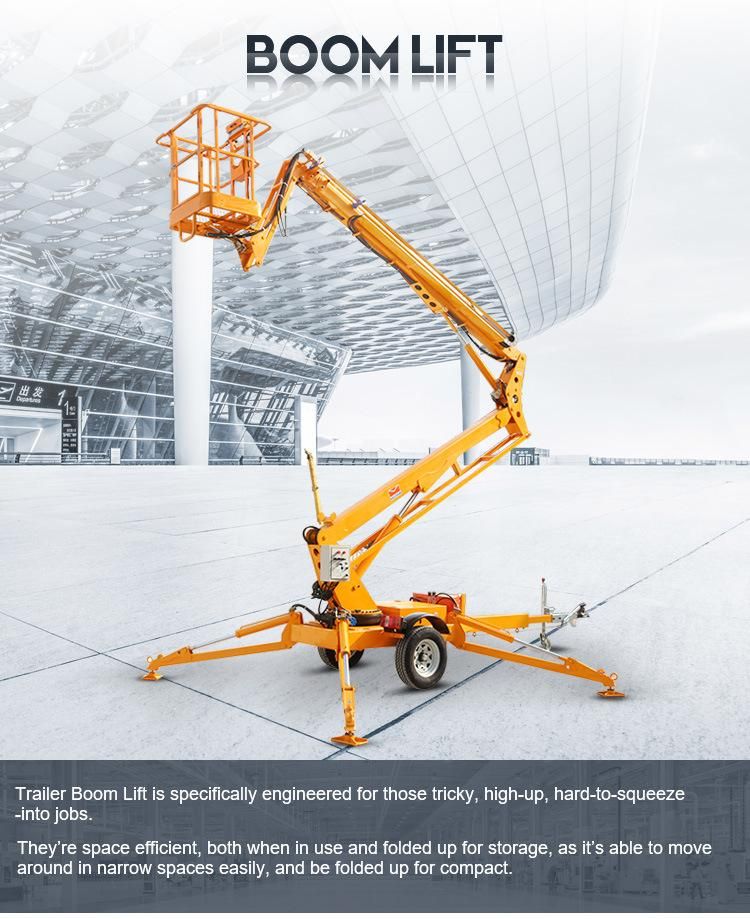

Trailer Boom Lift is specifically engineered for those tricky, high-up, hard-to-squeeze-into jobs.
They're space efficient, both when in use and folded up for storage, as it's able to move around in narrow spaces easily, and be folded up for compact storage.

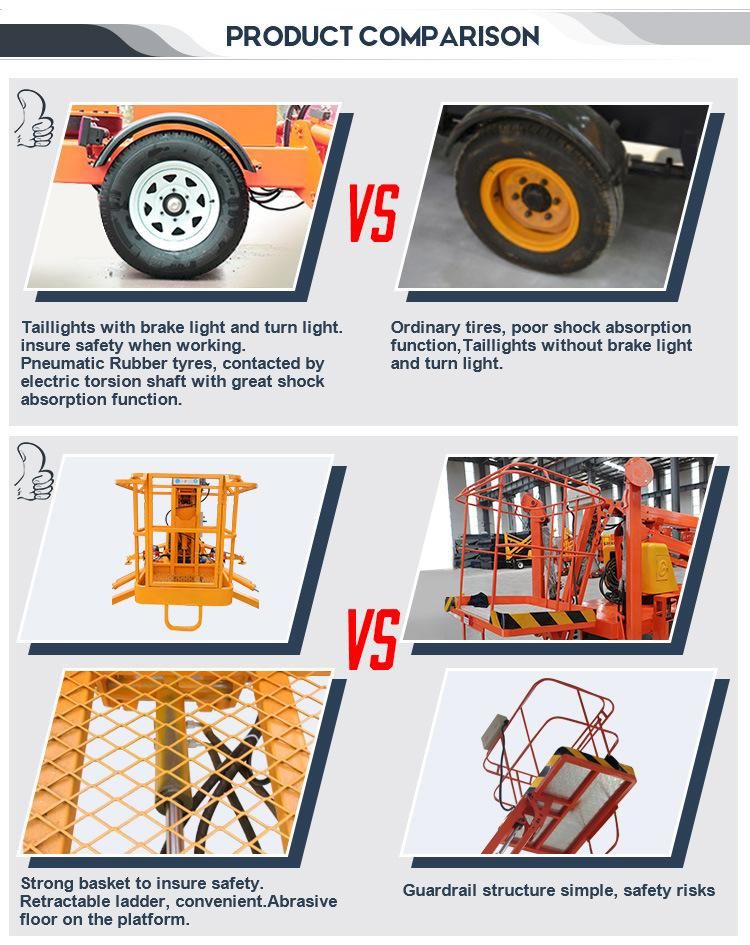

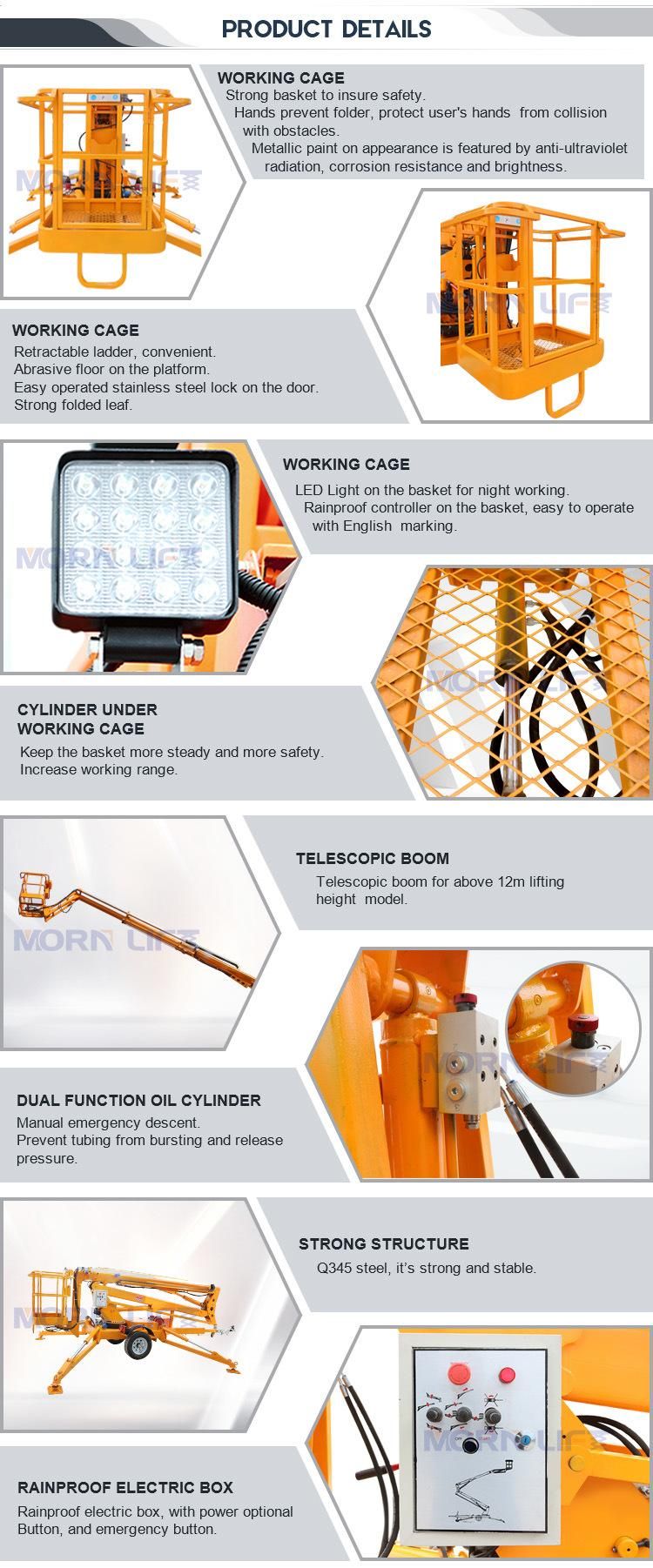

1, WORKING CAGE
Strong basket to insure safety.
Hands prevent folder, protect user's hands from collision with obstacles.
Metallic paint on appearance is featured by anti-ultraviolet radiation, corrosion resistance and brightness.
2, KEY PARTS WORKING CAGE
Retractable ladder, convenient.
Abrasive floor on the platform.
Easy operated stainless steel lock on the door.
Strong folded leaf.
3, KEY PARTS WORKING CAGE
LED Light on the basket for night working.
Rainproof controller on the basket, easy to operate with English marking.
4, CYLINDER UNDER WORKING CAGE
Keep the basket more steady and more safety.
Increase working range.

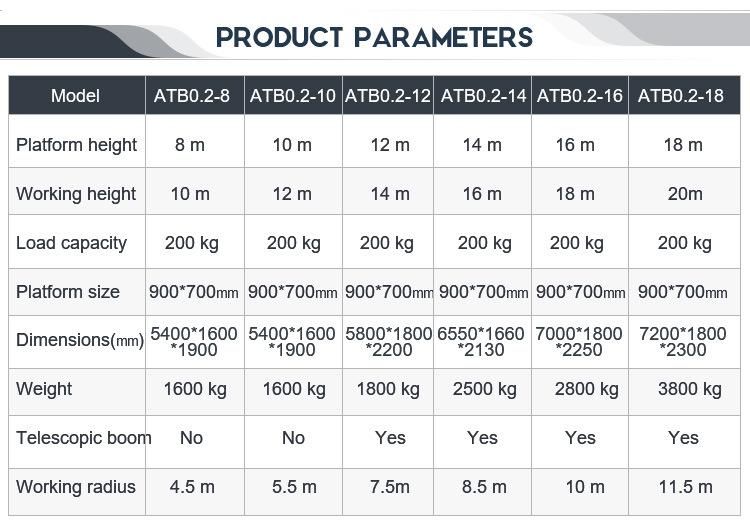

Model	ATB0.2-10	ATB0.2-12	ATB0.2-14	ATB0.2-16	ATB0.2-18
Platform height	10 m	12 m	14 m	16 m	18 m
Working height	12 m	14 m	16 m	18 m	20 m
Load capacity	200 kg	200 kg	200 kg	200 kg	200 kg
Platform size	900*700 mm	900*700 mm	900*700 mm	900*700 mm	900*700 mm
Dimensions(mm)	5400*1600*1900	5800*1800*2200	6550*1660*2130	7000*1800*2250	7200*1800*2300
Weight	1600 kg	1800 kg	2500 kg	2800 kg	3800 kg

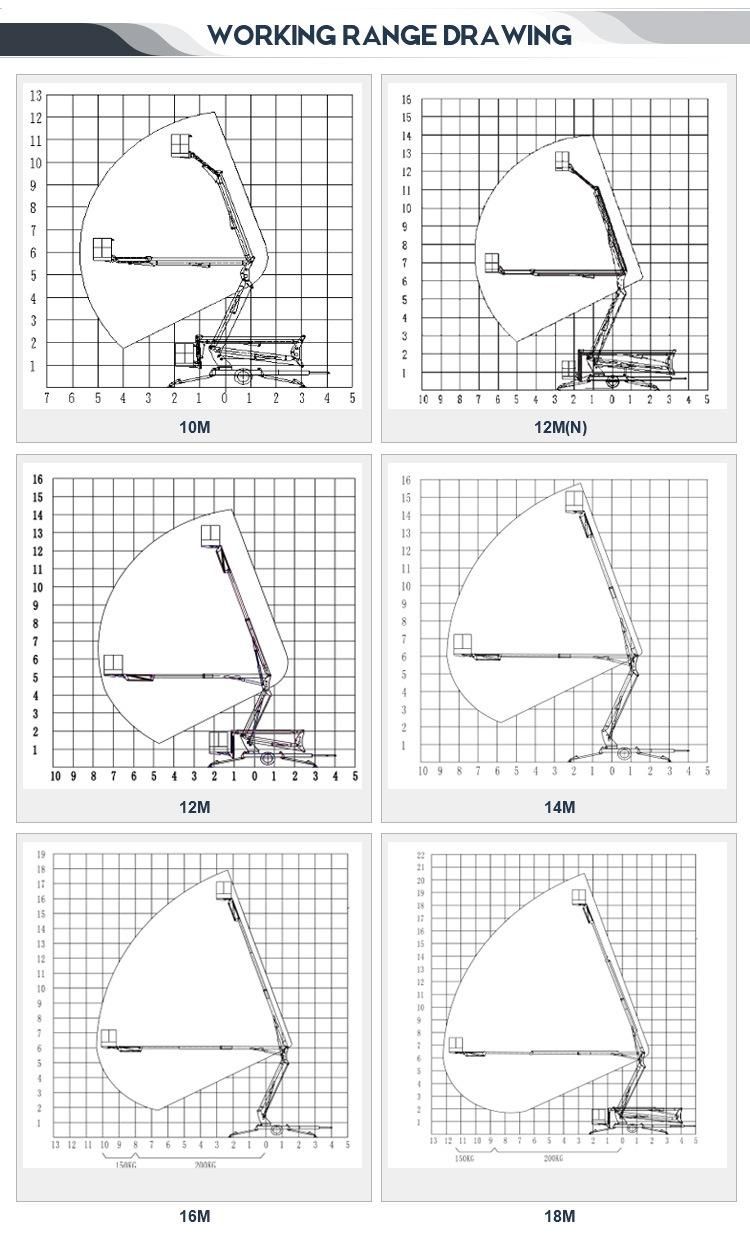

Working radius	4.5 m	7 m	7 m	8 m	8 m
Wind level	<=5	<=5	<=5	<=5	<=5
Units for 40GP	3 units	3 units	3 units	2 units	1 units
