• Model NO.：LRL1.0-5.5
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Platform：Antiskid
• Installation：Platform in Pit
• Pit Depth：160mm
• Color：Red, Green, Blue or as Your Requirements
• Guardrail Height：1100mm
• Stops：3
• Chain：Leaf Chain
• Lift Speed：3-6m,Min
• Platform Size：3000*3000mm
• Loading & Unloading：From 3000mm Side
• Transport Package：Nude Packing or According Your Requirement
• Specification：CE, ISO
• Trademark：MORN
• Origin：China
• HS Code：8428909090
• Production Capacity：2800kg

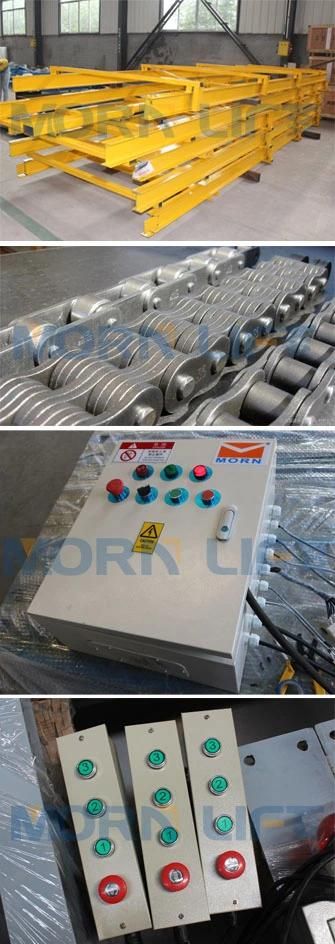

Guide rail

We use heavy-duty I beam as guide rails for Cargo Lift Platform. It is made of Cabon steel Q345B, with 17% more rigidity strength than normal steel. It could serve more than 50 years with enduring peculiarity.

Leaf chain

Leaf chain of MORN Cargo Lift Platform could bear 10 times weight than the goods lift's rated capcaity. With such heavy duty features and enduring use-life, it will

save the cost of the replacement and provide top class safety .

Control box

24V safety operate voltage prevent people from electric shock. Equipped with Switched-mode power supply,

Voltage display, Inching/Cont. control transform and other functions, it will help you operate easily and safely, and will save maintenance cost for you.

Control panel

The control panels is hierarchical controlling. People could call the platform at each floor. It brings high work efficiency for people. Max. stations could be as much as 10 stations.

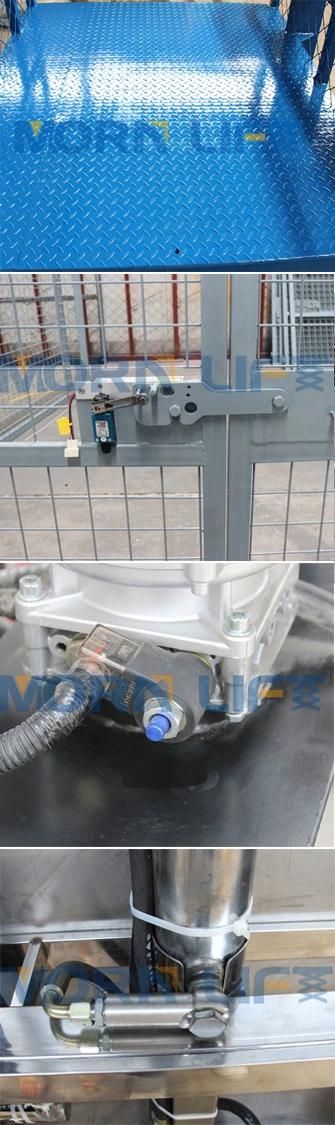

Skidproof Platform

The platform of goods elevator is made of checkered steel plate, which could prevent people and goods slipping down.








Interlocking System

Only all doors closed, could the goods elevator. If any door open, the lift will not move. It prevent worker's misoperation and potential damage to workers.









Manual Decline Valve

In case of the failure of electricity supply, the platform will be suspended in midair. Then we could manually make the platform come down to Ground floor by the Manual Decline Valve. Prevent potential danger.







Anti-explosion Valve

In case of hydraulic pipe fracture, then Anti-explosion valve will work to prevfent the hydralic oil leak out, so that it prevent the platform fall down. Protect the safety of the goods and worker.

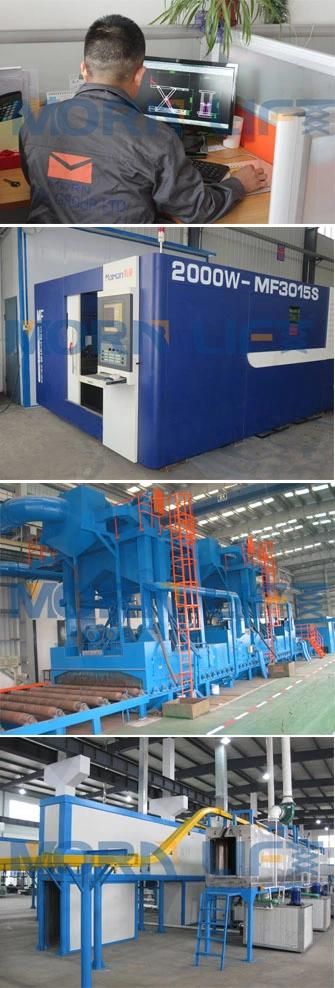

MORN Technical support

MORN technical team provide professional

design drawing for the confirmation with the user in case of any misunderstanding. It could make sure the warehouse cargo lift could meet your individual requirements.







Laser cutting machine

MORN use the most advanced laser cutting machine to process structures and parts,which make every lifter parts extremely precise with a error less than 3‰ of a millimeter.

Shot blasting facility

MORN do rust-removing by shot blasting machine. It improves the adhesive power of steel surface and increase the fatigue resistance and corrosion resistance ability. Therefore, it lengthen use-life of goods lift.


Powder Coating

MORN do painting by powder coating machine. Powder coating will make the painting durable and spray evenly,more beautiful, more efficient.

It will prevent from getting rusty to extend the using life.

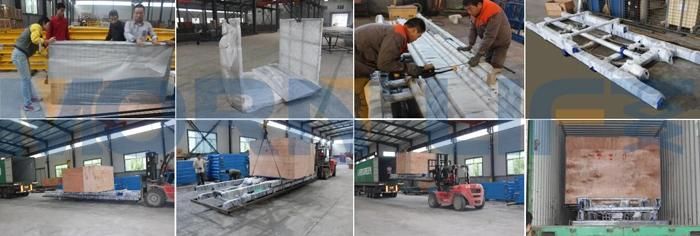

Packing&Shipping

Packaging details for goods elevator:

1. Film package to prevent humidity and rust.
2. Iron frame to keep warehouse goods lift stable in container.
3. Plywood to prevent warehouse goods lift from colliding. Convenient for forklift delivery.

Delivery time: within 30 working days after we receive the payment.



Why choose us:

1. Professional design drawing for the confirmation in case of any misunderstanding.

2. All products will be produced strictly according to CE quality management system.

3. Every lead rail lift must be tested before delivery,100% qualified.

4. Detailed rust-removing and powder painting process.

5. 5 years warranty for main structure and 1 year warranty for electrical parts.
