• Model NO.：QY25K-II
• Production Capacity：100sets, Month

Basic Info.

Model NO. QY25K-II Production Capacity 100sets/ Month

Product Description

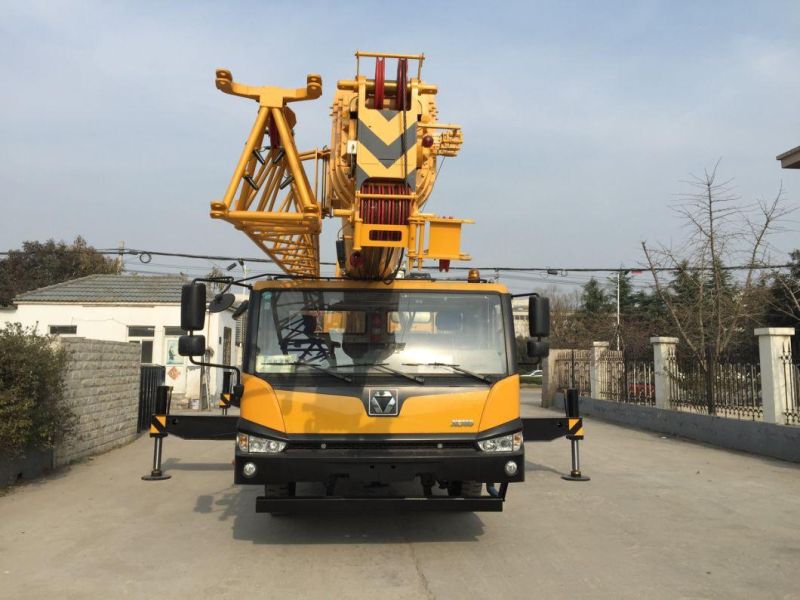

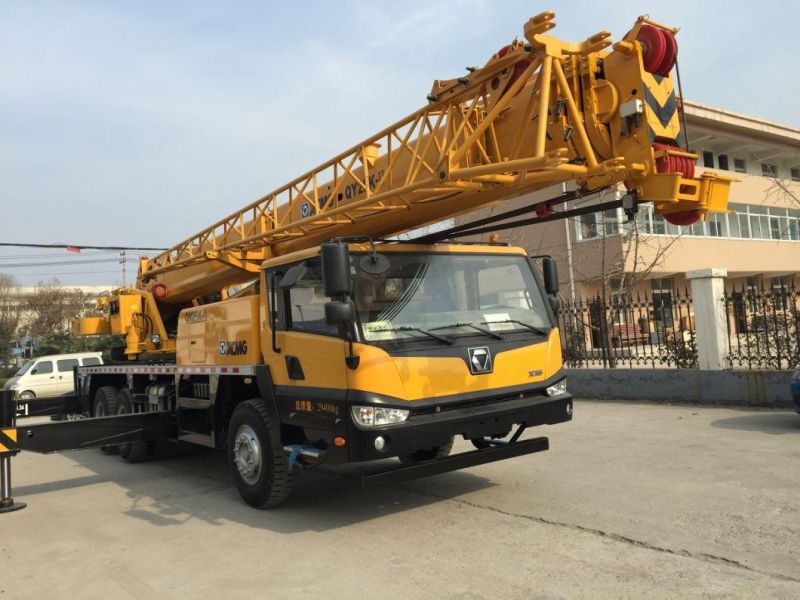

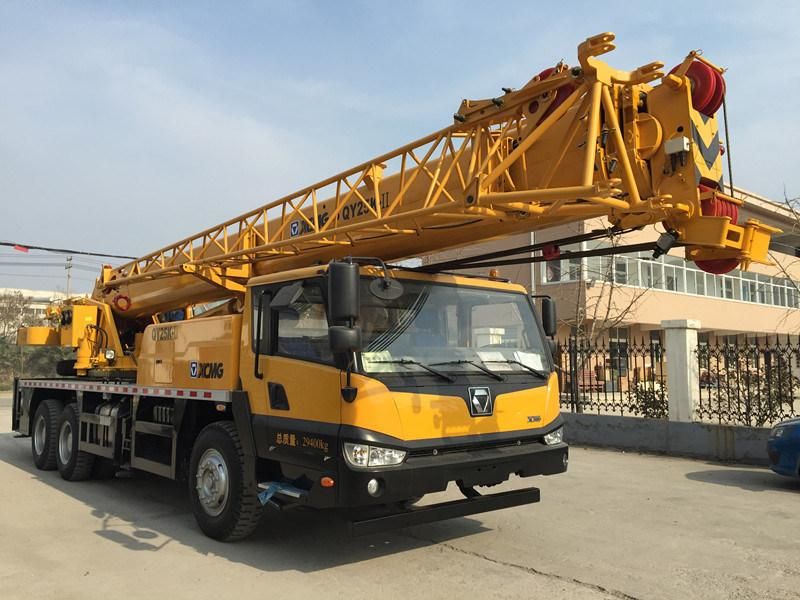

Hot sale 25 Ton Mobile Truck Crane Qy25k-II

1. Specialized boom of Bi-hexagonal cross section has features of light deadweight, better strength and strong lifting capacity.
2. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
4. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.



Dimension	Unit	QY25K-II
Overall length	mm	12550
Overall width	mm	2500
Overall height	mm	3380
Weight
Total weight in travel	kg	29400
Front axle load	kg	6200
Rear axle load	kg	23200
Power
Engine model		SC8DK280Q3 / WD615.329(domestic III)
Engine rated power	kW/(r/min)	206/2200   213/2200
Engine rated torque	N.m/(r/min)	1112/1400  1160/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	22
Min. ground clearance	mm	260
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	30
Fuel consumption for 100km	L	≈37
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	1000
Base boom	m	10.6
Fully extended boom	m	34
Fully extended boom+jib	m	42.15
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	75
Boom full extension time	s	100
Max. swing speed	r/min	≥2.5
Max. speed of main winch (single rope)	m/min	≥120
Max. speed of aux. winch (single rope)	m/min	≥120
