Electric Tugger Winch for Pulling Boat (JK5)
Pingyang Construction Hoisting Machinery Co.- Type：Electric Winch
- Driven Type：AC
- Carrying Capacity：Weight Level
- Tonnage：5T
- Running Mode：Stationary
- Feature：Voltage Can Be Custom Made
Base Info
- Model NO.：JK5
- Certification：ISO 9001
- Standard：Nonstandard
- Line Pull Capacity：1ton to 50ton
- Rope Speed：10m,Min
- Voltage：3phase, 380V(or Made as Local Voltage)
- Rope Capacity：100m to 1000m
- Color：as Customer Like
- Brake：Failsafe Brake
- Transport Package：Wooden Case
- Specification：1ton to 50ton
- Trademark：CH
- Origin：Wenzhou, China
- HS Code：8425319000
- Production Capacity：100 Unitss,Month

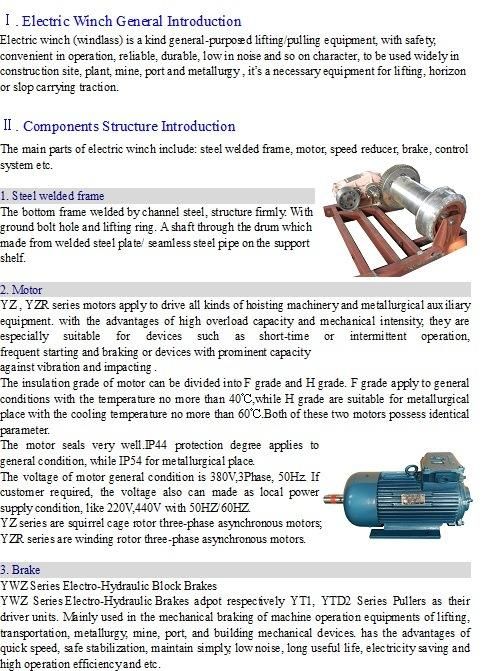

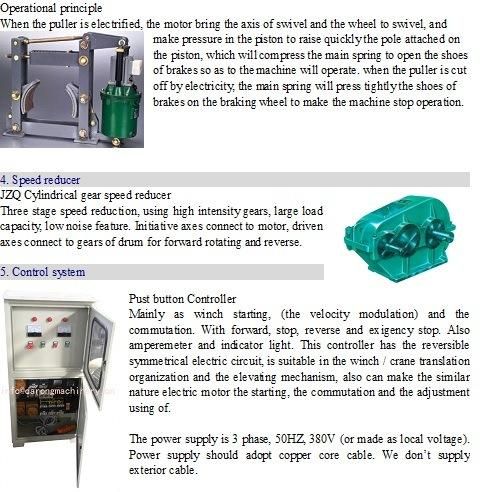

Description
ModelJM2 JM3 JM5 JM8 JM10 Line pull capacity (kg) 2000 3000 5000 8000 10000 average speed (m/min) 12 10 10 10 9 Wire rope(mm): 12.5 15.5 21.5 26 30 Reduction box Type JZQ350 JZQ350 JZQ400 JZQ500 JZQ650 Transmission ratio 23.34 31.5 23.34 31.5 40.17 Drum (mm) Diameter/mm 273 325 406 500 550 Length 480 520 645 900 1000 Capacity(m) 150 180 250 300 450 motor Type YZ160M2-6 YZ160M2-6 YZ160L-6 YZR225M-8 YZR250M1-8 Power(kW) 7.5 7.5 11 22 30 Rotate speed(r/min) 948 948 953 720 720 Hydraulic Brake YWZ-200/25 YWZ-200/25 YWZ-300/45 YWZ-300/45 YWZ-300 Equipment Dimension (mm) 1060x1500x750 1600x1100x820 1400x1910x950 2050x1640x1000 2470x2280x1180 Weight(kg) 630 680 1400 3000 4000
