• Model NO.：CTD
• Origin：China
• HS Code：84279000
• Production Capacity：10000PCS,Year

Basic Info.

Model NO. CTD Origin China HS Code 84279000 Production Capacity 10000PCS/Year

Product Description

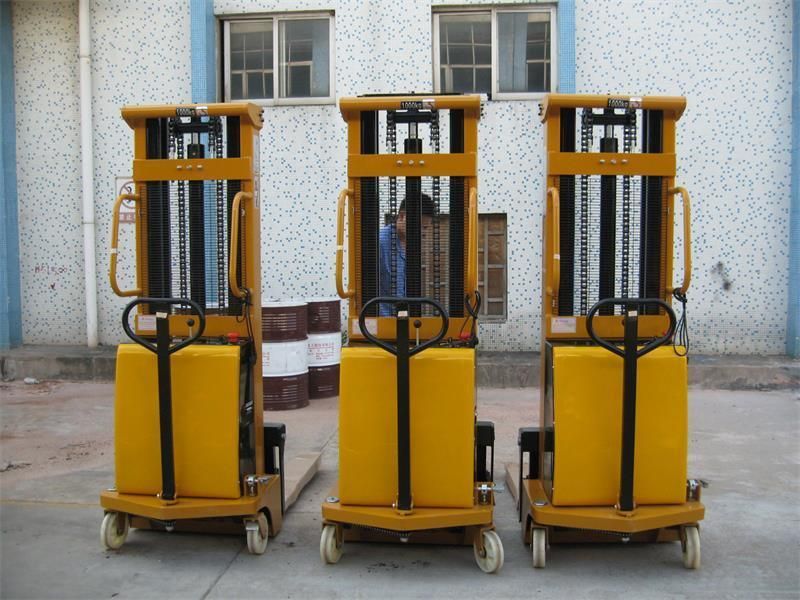

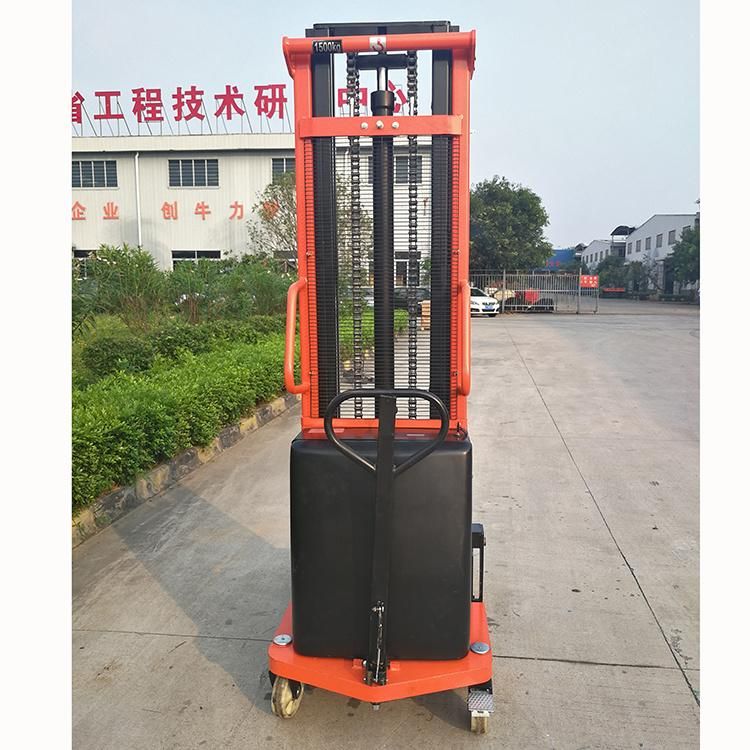

Semi Electric Stacker:

1. Capacity: 1000kg/1500kg. 2000kg.
2. Lift Height: 1600mm, 2000mm, 2500mm, 3000mm, 3300mm.
3. Fork Length: 1000mm.
4. Min Height Of Forks Lowered: 80-100mm.
5. Charging Voltage: AC220V.
6. Adjustable Width Of The Forks: 320-720mm


Model	CTD1.0/16	CTD1.0/20	CTD1.0/25
Capacity(kg)	1000	1000	1000
Max.lifting height(mm)	1600	2000	2500
Fork length(mm)	1000	1000	1000
Min.fork height(mm)	90	90	90
Load eenter(mm)	500	500	500
Voltage	AC220V	AC220V	AC220V
Motor power	1.6KW	1.6KW	1.6KW
Outer width of front legs(mm)	635	635	635
Inner width of legs(mm)	395	395	395
Adjustable Width of fork(mm)	360-690	360-690	360-690
Rear wheel size(mm)	φ180X50	φ180x50	φ180x50
Front wheel size(mm)	φ80X70	φ80x70	φ80x70
Self Weight(kg)	312	325	340
Extended height(mm)	2080	1580	1830
Closed height H3(mm)	2080	2500	3000

Model	CTD1.0/30/33	CTD1.5/16	CTD1.5/20
Capacity(kg)	1000	1500	1500
Max.lifting height(mm)	3000/3300	1600	2000
Fork length(mm)	1000	1000	1000
Min.fork height(mm)	90	90	90
Load eenter(mm)	500	500	500
Voltage	AC 220V	AC220V	AC220V
Motor power	1.6KW	1.6KW	1.6KW
Outer width of front legs(mm)	635	635	635
Inner width of legs(mm)	395	395	395
Adjustable Width of fork(mm)	360-690	360-690	360-690
Rear wheel size(mm)	φ180x50	φ180x50	φ180x50
Front wheel size(mm)	φ80x70	φ80x93	φ80x93
Self Weight(kg)	355/370	387	405
Extended height(mm)	2080/2230	2080	1580
Closed height H3(mm)	3500/3800	2080	2500
