• Model NO.：HCH
• Brake System：Electromagnetic Brake
• up-Side Down Lifting：Yes
• Single Speed：Yes
• Limiter Switch：Yes
• Chain Bag：Yes
• Chain：G80
• Delivery：15 Work Days
• Loading Port：Shanghai
• Transport Package：Carton, Plywood, Pallet
• Specification：CE, SGS, ISO
• Trademark：Hugo
• Origin：Shanghai
• HS Code：8425110000
• Production Capacity：5000 Sets Per Month

Basic Info.

Model NO. HCH Brake System Electromagnetic Brake up-Side Down Lifting Yes Single Speed Yes Limiter Switch Yes Chain Bag Yes Chain G80 Delivery 15 Work Days Loading Port Shanghai Transport Package Carton, Plywood, Pallet Specification CE, SGS, ISO Trademark Hugo Origin Shanghai HS Code 8425110000 Production Capacity 5000 Sets Per Month

Product Description

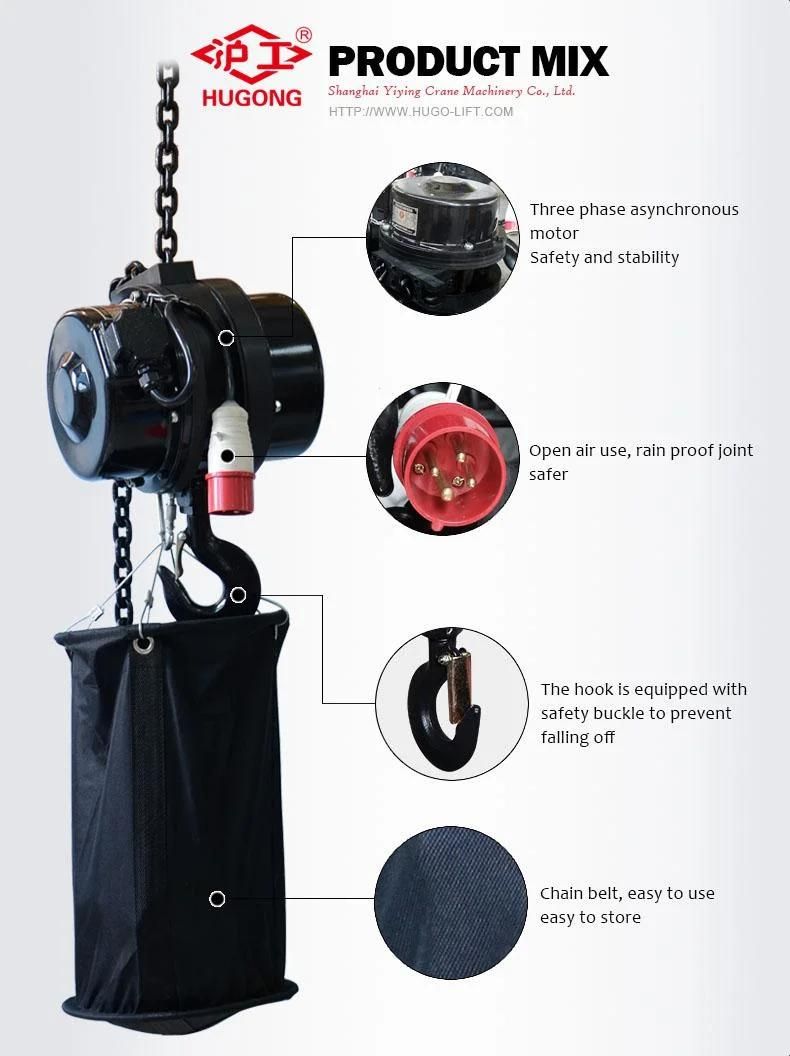

1. Forging steel structure small electric hoist, plastic coating cover
2. Overload Protector is available, insulation is F grade. Single use or multiple operating with one control cabinet.
3. The anti-phase relay device protects machine from damage when power connection is in wrong way.
4. Dual brake system -electromagnetic brake and mechanical brake. Electromagnetic brake system, using non-asbestos brake linings to reduce maintenance times greatly.
5.24-36V Low Voltage Control: The low voltage control can protect operators from electrical shocks.
6. The surface of chain is dealted with case carburization which contains Si Ni Mo. The inside material is softened. It is resistant to corrosion, rain, water, sea water, chemical and other bad conditions.


Capacity(KG)	Model	Power(kw)	No. of load chain	Lift speed(m/min)	Weight of hoist without load chain(kg)	Weight of Load chain(Kg/m)
500	M6-W0.5A	0.42	1	4	30	1.1
500	M6-W0.5B	0.86	1	8	48	1.1
500	M6-W0.5C	0.83	1	4	48.5	1.1
1000	M6-W1A	1.5	1	8	50	1.1
1000	M6-W1B	0.86	2	2	52	2.2
2000	M6-W2A	1.5	2	4	54	2.2
2000	M6-W2B	1.5	1	16	50	1.1
