Heavy Duty 1 Ton Electric Chain Hoist Single Speed

Shanghai Yiying Crane Machinery Co., Ltd.
  • Application：Single Grinder Crane
  • Type：Electric Hoist
  • Sling Type：Chain
  • Lift Speed：2~8m,min
  • Maximum Lifting Height：>20m
  • Chain Falls：1-4

Base Info

  • Model NO.：HSY
  • Certification：CE, ISO9001:2000
  • Condition：New
  • Color：Yellow
  • Chain：G80 Chain
  • Low Headroom：Yes
  • Speed：Single Speed
  • Noise：No
  • Max Lifting Speed：8.8 M,Min
  • Max Lifting Weight：10 Ton
  • Required Lifting Height：Avaliable
  • dual Reducer：Yes
  • Warranty：1 Year
  • Loading Port：Shanghai
  • Transport Package：Wooden Boxes
  • Specification：ISO,CE, SGS, TUV
  • Trademark：hugong, yiying
  • Origin：Shanghai, China
  • HS Code：84251100
  • Production Capacity：100000PCS,Year

Description

 Product parametersModel
  HSYCapacity
  TONLifting
Height
MLifting
Speed
M/MINLifting  motor Drive  motorPower
KWRotational
Speed
  R/MINPh
aseVoltage
VFrequency
HZ/SPower
KWRotational
Speed
R/MINRunning
speed
M/MINPh
aseVoltage
VFrequency
HZ/S01-0113/96.81.514403380/22050/600.4144011/213380/22050/6002-0223/93.41.514403380/22050/600.4144011/213380/22050/602.5-012.53/96.83.014403380/22050/600.75144011/213380/22050/6003-0233/95.83.014403380/22050/600.75144011/213380/22050/6005-0253/92.83.014403380/22050/600.75144011/213380/22050/60

Features for the electric chain hoist HSY
1. Hooks
Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
2. Power
Operating voltage 220-440V, 50/60Hz, 1-3 phase.
Low voltage control 36V is standard.
3. Motor
High efficient energy-saving motor, asbestos free brake system. 2-speed motor available.

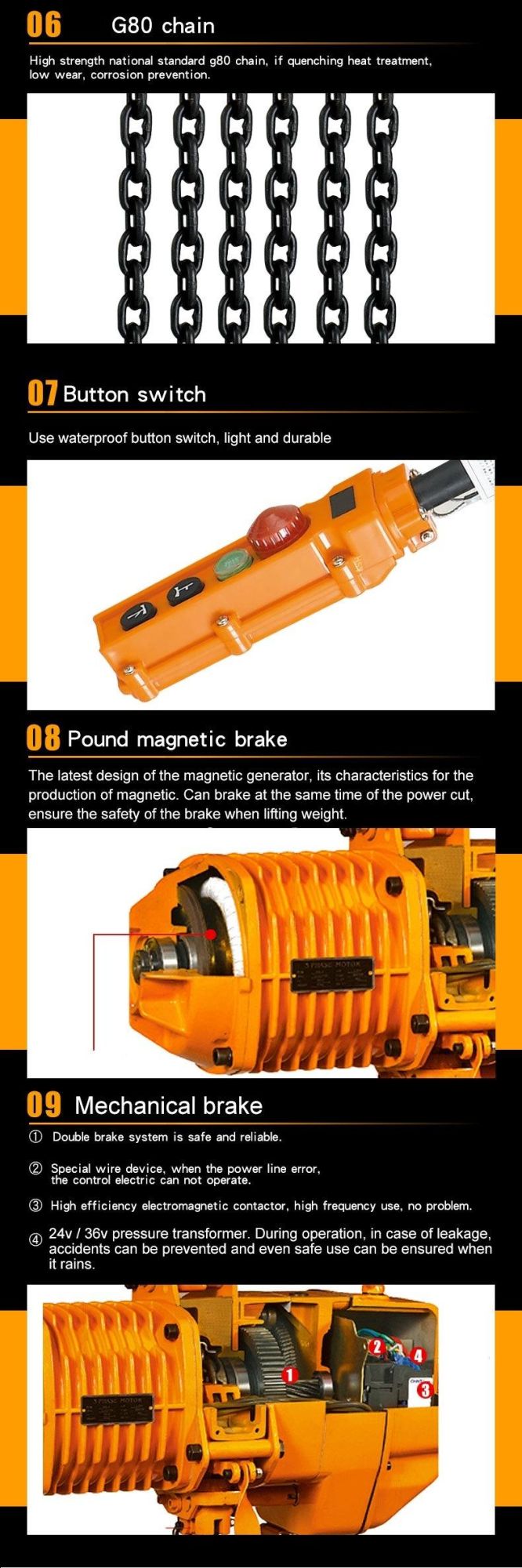

4. Chain
Alloy steel chain super strong surface hardened for optimum strength and wear resistance.
5. Chain Bucket
Solid chain bucket as standard part for safer operation
6. Limit Switch
Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
7. Phase Error Relay
Phase error relay, a specially designed current-post, prevents motor from running at incorrect wire connection.
8. Pushbutton Swith
Pushbutton swith is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked.
9. Safety Latches
Top and bottom hooks are fitted with safety latches as standard.
10. Light Wight
Light weight, compact and solid body case.
11. Push Button Control
Heavy Duty 1 Ton Electric Chain Hoist Single Speed

Heavy Duty 1 Ton Electric Chain Hoist Single Speed
Heavy Duty 1 Ton Electric Chain Hoist Single Speed
Heavy Duty 1 Ton Electric Chain Hoist Single SpeedHeavy Duty 1 Ton Electric Chain Hoist Single SpeedHeavy Duty 1 Ton Electric Chain Hoist Single SpeedHeavy Duty 1 Ton Electric Chain Hoist Single SpeedHeavy Duty 1 Ton Electric Chain Hoist Single SpeedHeavy Duty 1 Ton Electric Chain Hoist Single SpeedHeavy Duty 1 Ton Electric Chain Hoist Single Speed


Our Services Service Payment term:   T/T or L/C Warranty Period:  1 year Delivery time:  5 days after order Packing:  export carton and pallet
