• Model NO.：XGA20K
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Rated Loading Capacity：256(Unlimited),350(Limited)Kg
• Power：36.8kw
• Max Lifting Height：20m
• Specification：1830*760*1150mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000,Year

Basic Info.

Model NO. XGA20K Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Rated Loading Capacity 256(Unlimited)/350(Limited)Kg Power 36.8kw Max Lifting Height 20m Specification 1830*760*1150mm Trademark XCMG Origin Jiangsu, China Production Capacity 10000/Year

Product Description

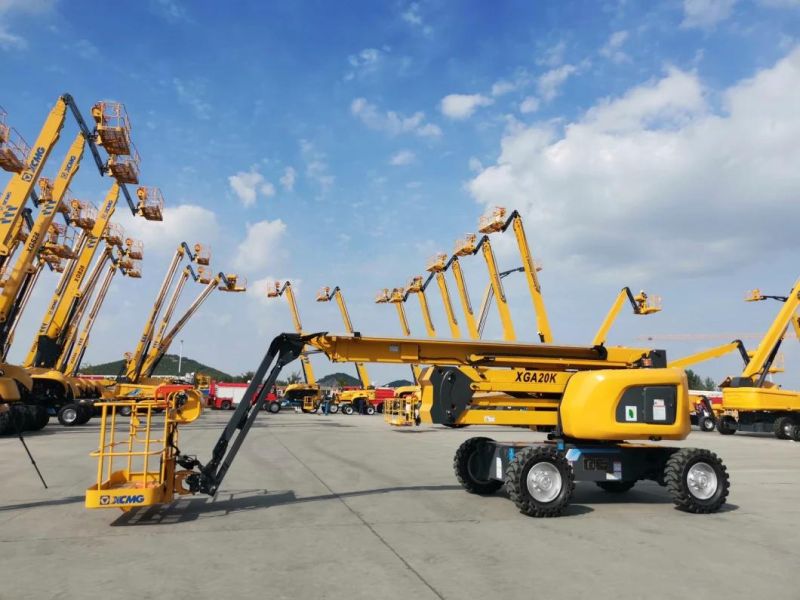

XCMG original manufacturer 20m aerial work platform XGA20K china new mobile hydraulic articulated boom lift.

XGA20K is a kind of layout is compact, the obstacle-surmounting efficiency and design precision, driving strong and simple operation of the crank arm
type mobile elevating work platform. The machine is easy to operate, safe and reliable, accurate and efficient, and can widely meet the needs of users
in construction, steel structure, petrochemical industry, venue and lease, etc.

Advantages and features:
1. 256/350 kg of double load and big load design, load performance in the industry advanced level.
2. Multi-directional precise positioning up, down and across functions as well as excellent stretch functions.
3. Electrical system USES a distributed PLC control technology, adaptive proportional valve control method, make the product environment adaptability
with lead.
4. Full hydraulic pressure drive, 360 °angular free rotation, there is no Angle limits in full operation and simple operation, high reliability.
5. Compact clever, vehicle layout is compact, convenient for container transportation.

product parameter

Item	Unit	Parameters
a.    Overall length	mm	8520
b.    Overall width	mm	2300
c.    Overall height	mm	2400
d.    Wheelbase	mm	2500
Max. working height	m	20.63
Max. platform height	m	18.63
Max. working range	m	12.08
Max. carrying weight	kg	256(unlimited)/350(limited)
Scope of luffing of No. 1 arm	°	0~+72
Scope of luffing of Boom No.2	°	0~+73
Crank arm luffing range	°	-64~70
Slewing angle of turntable	°	360
Max. Tail swing	mm	0.54
Dimension of platform	mm	1830×760×1150
Slewing angle of platform	°	160
Overall weight	kg	9900
Max. traveling speed	km/h	5.5
Min. turning radius	m	5.0
Min. ground clearance	mm	330
Max. gradeability	%	45
Specification of tire	/	355/55D625
Engine model	/	YCF3050-T302
Engine rated power	kW/(r/min)	36.8/(2400)

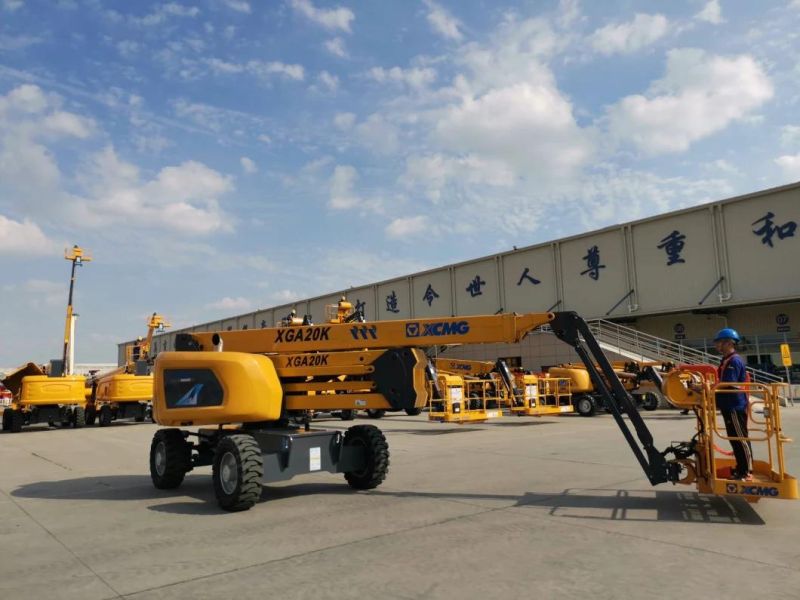

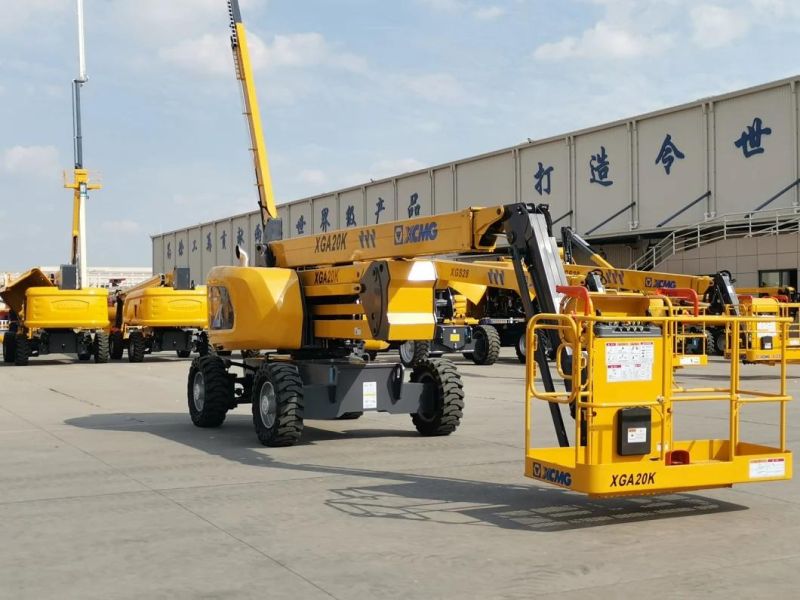

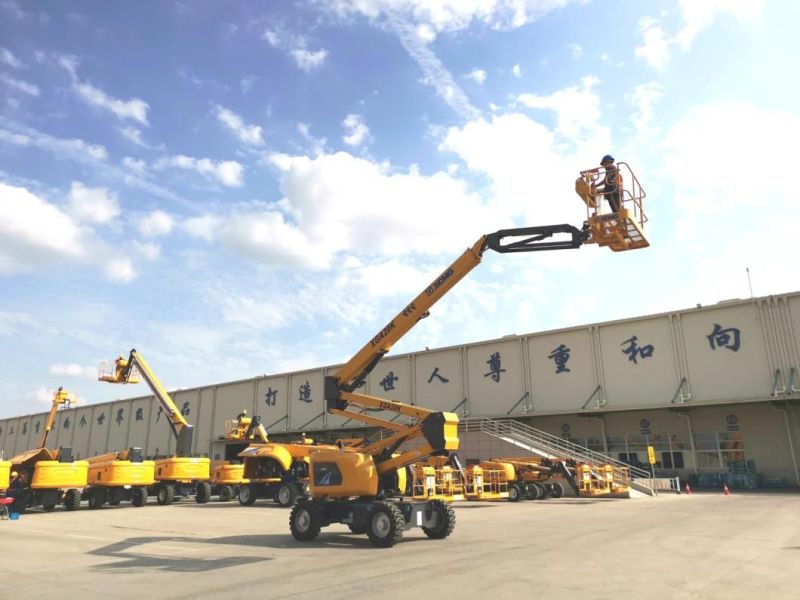

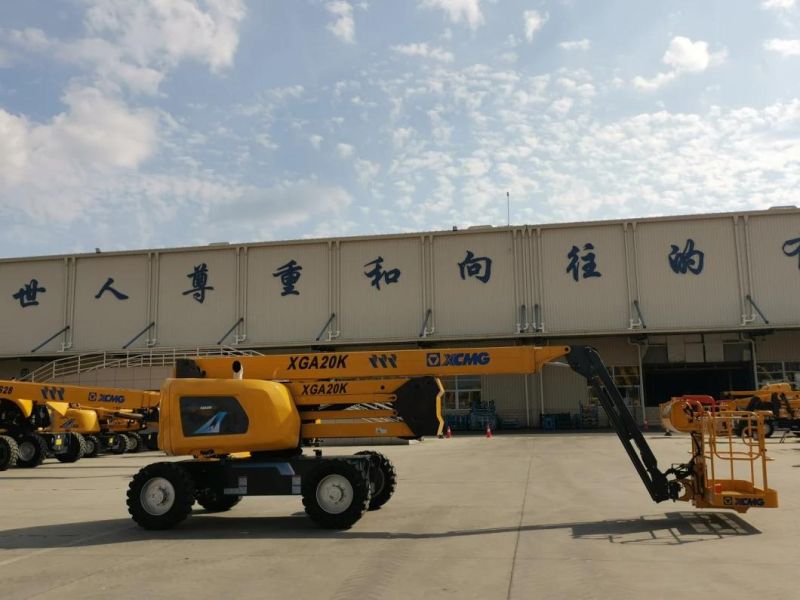

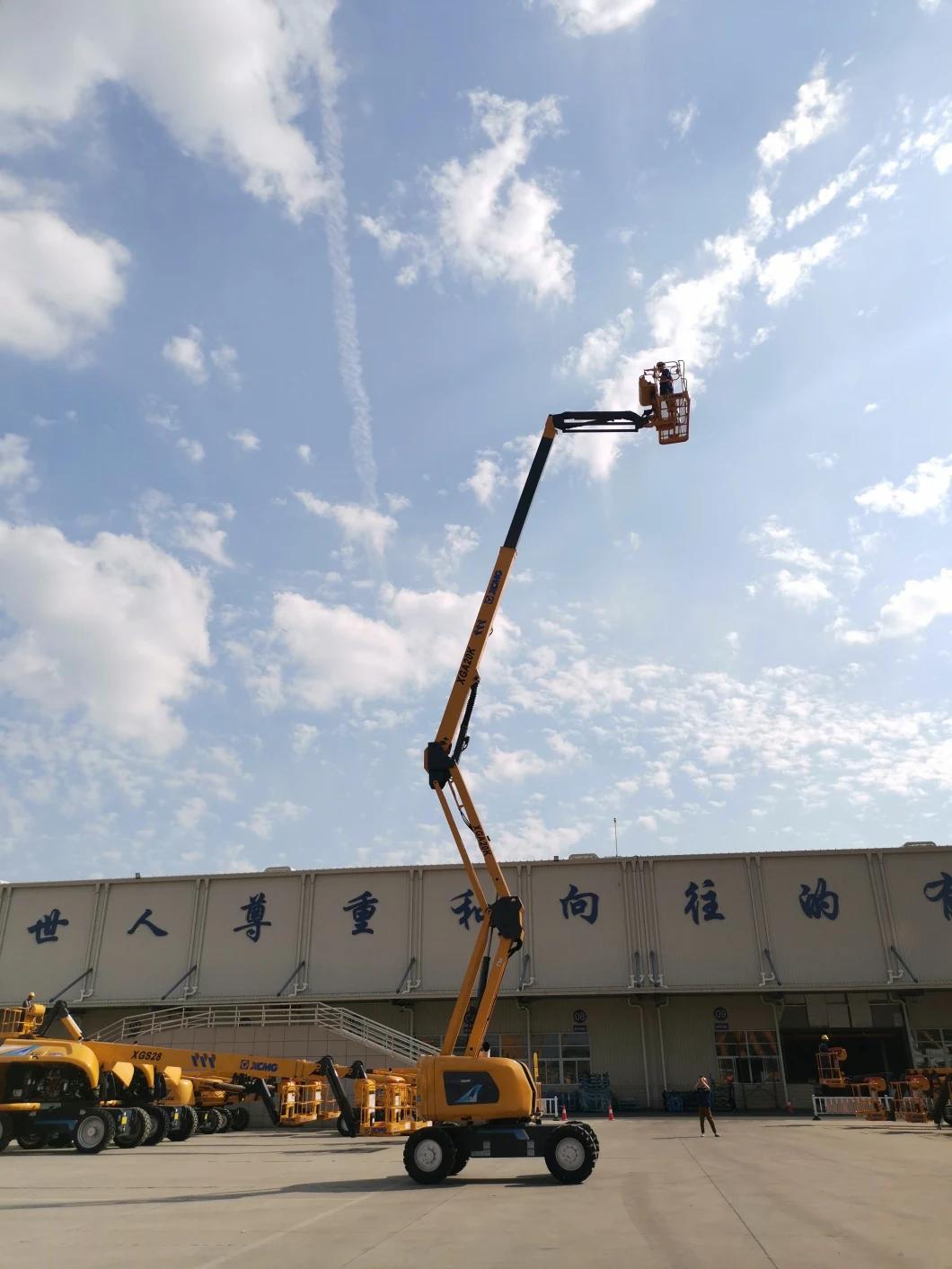

product show
