• Model NO.：GTBZ18A1
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Rated Loading Capacity：230kg
• Max. Lifting Height：20.3m
• Power：38kw,3000rpm
• Table Size：1830*760*1150 mm
• Weight：10600kg
• Specification：9080*2490*2680mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• Production Capacity：10000,Year

Basic Info.

Model NO. GTBZ18A1 Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Rated Loading Capacity 230kg Max. Lifting Height 20.3m Power 38kw/3000rpm Table Size 1830*760*1150 mm Weight 10600kg Specification 9080*2490*2680mm Trademark XCMG Origin Xuzhou, Jiangsu, China Production Capacity 10000/Year

Product Description

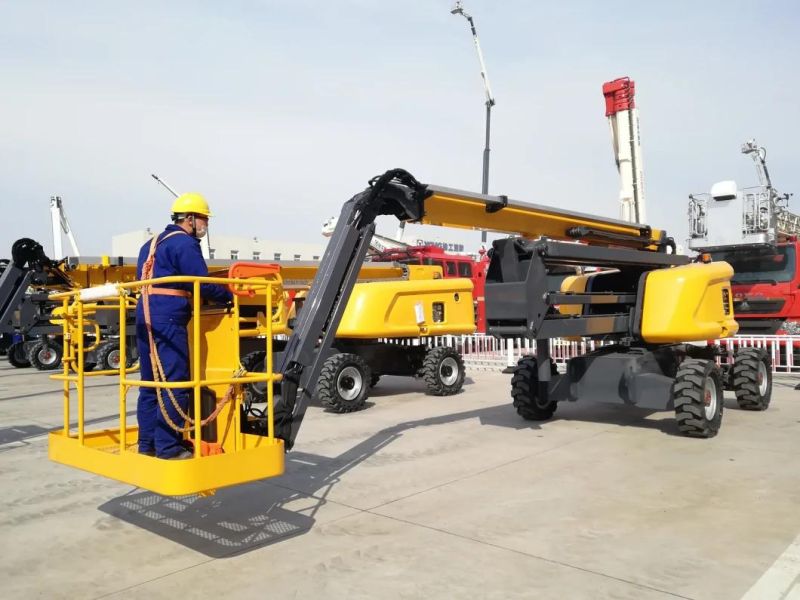

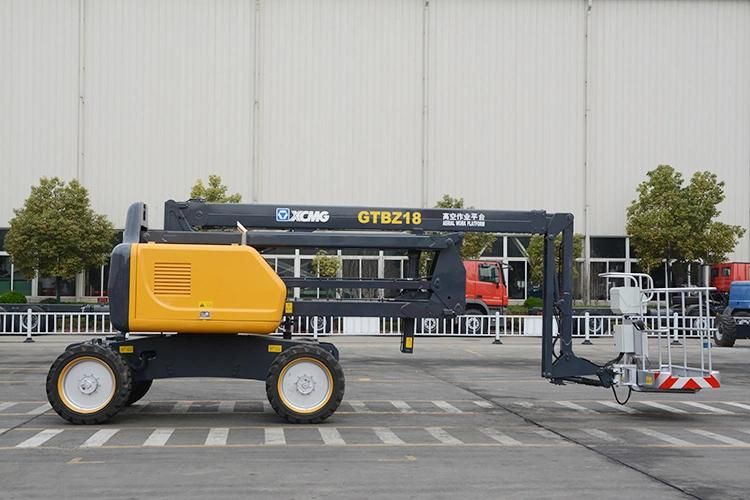

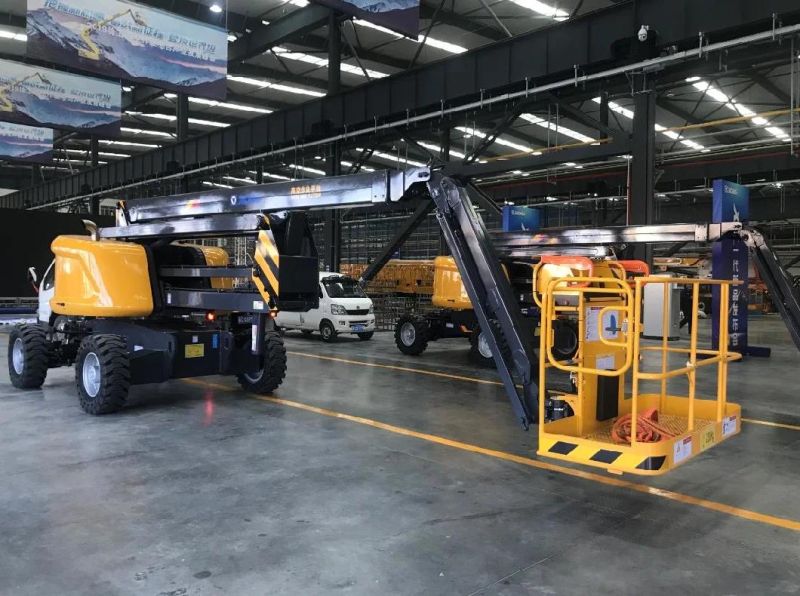

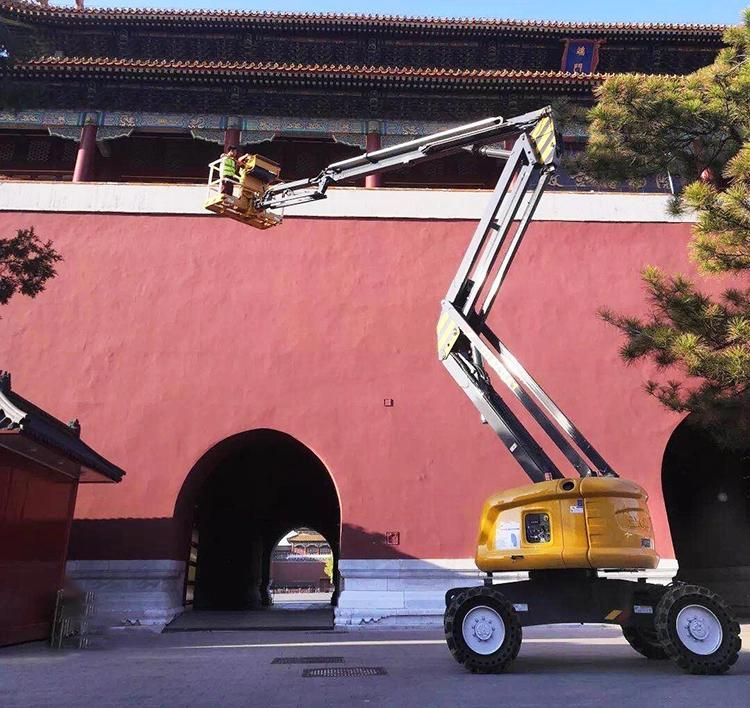

XCMG Official 18m Articulated Boom Lift GTBZ18A1 China New Hydraulic Self Propelled Mobile Boom Lift Platform.

For 18m level "Σ" type linkage folded hybrid boom aerial work platform, its readability, operating performance and humanization has reached to the advanced level in the industry.

The linkage folded hybrid arm has compact structure and flexible stretching, which is easy to get to the unreachable areas; with four-wheel drive, off-road wide tires and axle balancing device, the equipment has excellent drive and terrain adaptability.

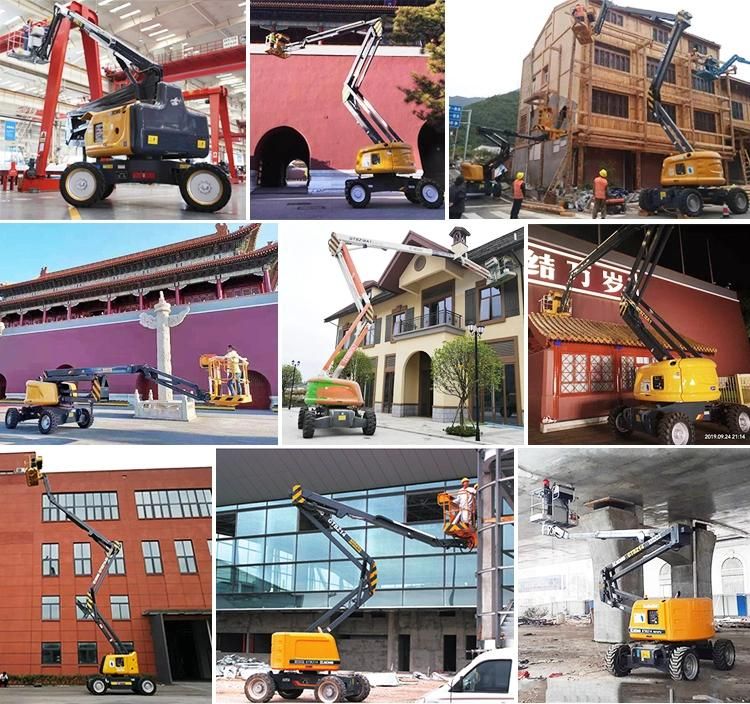

The model manipulation is simple, safe, reliable, accurate and efficient, which can meet the requirements of the construction, petrochemical, venues, leasing and other industry users.

Advantages and highlights:

1.  The undercarriage assembly
* The running mode is subject to hydraulic driving, and the driving mode adopts four-wheel drive; besides, it can meet the driving requirements of vehicle under different environments.
* The running mechanism possesses self-braking function; which can facilitate dragging, in case of any faults.

2.  Arm rest assembly
* The aboard combined arm assembly refers to the folded arm + telescopic arm + one section of crank arm.

3.  Rotary table
* The rotary table is set as per hinge joints of single stiffened plate, and the counterweight is set behind it.
* With respect to the counterweight, fuel tank, hydraulic oil tank and control cabinet are set on the left side of the rotary table.
* The engine and accumulator are set on the right side of the rotary table.

4.  Hydraulic system
* Two-pump drive is adopted for the hydraulic system, and the direct drive of the engine will provide power for the hydraulic system.

5.  Electrical system
* Distributed PLC control technology is adopted for the electrical system, and the controllers are set on the platform and rotary table respectively.
* The rotary table and platform controller are communicated via CAN bus, to achieve the control of chassis, rotary table, boom and platform.

product parameter

Item	Unit	Parameter
a. Overall length	mm	9080
b. Overall width	mm	2490
c. Overall height	mm	2680
d. Wheelbase	mm	2500
Maximum working height	m	20.3
Maximum platform height	m	18.6
Maximum working range	m	11.9
Maximum load weight	kg	230
No.1 arm luffing range	°	0 ~ +70
No.2 arm luffing range	°	0 ~ +75
Crank arm luffing range	°	-65 ~ 70
The swing angle of the rotary table	°	360
Maximum tail wagging	mm	0
Platform size	mm	1830×760×1150
The swing angle of the platform	°	180
Machine weight	kg	10600
Maximum travelling speed	km/h	6.0
Minimum turning radius	m	6.0
Minimum ground clearance	mm	230
Maximum gradeability	%	45
Tyre size		355/55D625
Motor model		Perkins 404D-22 Deutz D2011L03i
Rated power of motor	kW/(r/min)	38KW/3000rpm, 36.3 KW/2800rpm
