• Model NO.：XGS34
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Rated Loading Capacity：230kg(Unrestricted),340kg (Restricted)
• Weight：18400kg
• Max. Traveling Speed：5km,H
• Ground Clearance/M (Centre)：260mm
• Specification：14300*2490*3070mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

Basic Info.

Model NO. XGS34 Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Rated Loading Capacity 230kg(Unrestricted)/340kg (Restricted) Weight 18400kg Max. Traveling Speed 5km/H Ground Clearance/M (Centre) 260mm Specification 14300*2490*3070mm Trademark XCMG Origin Jiangsu, China Production Capacity 10000 Unit/Units Per Year

Product Description

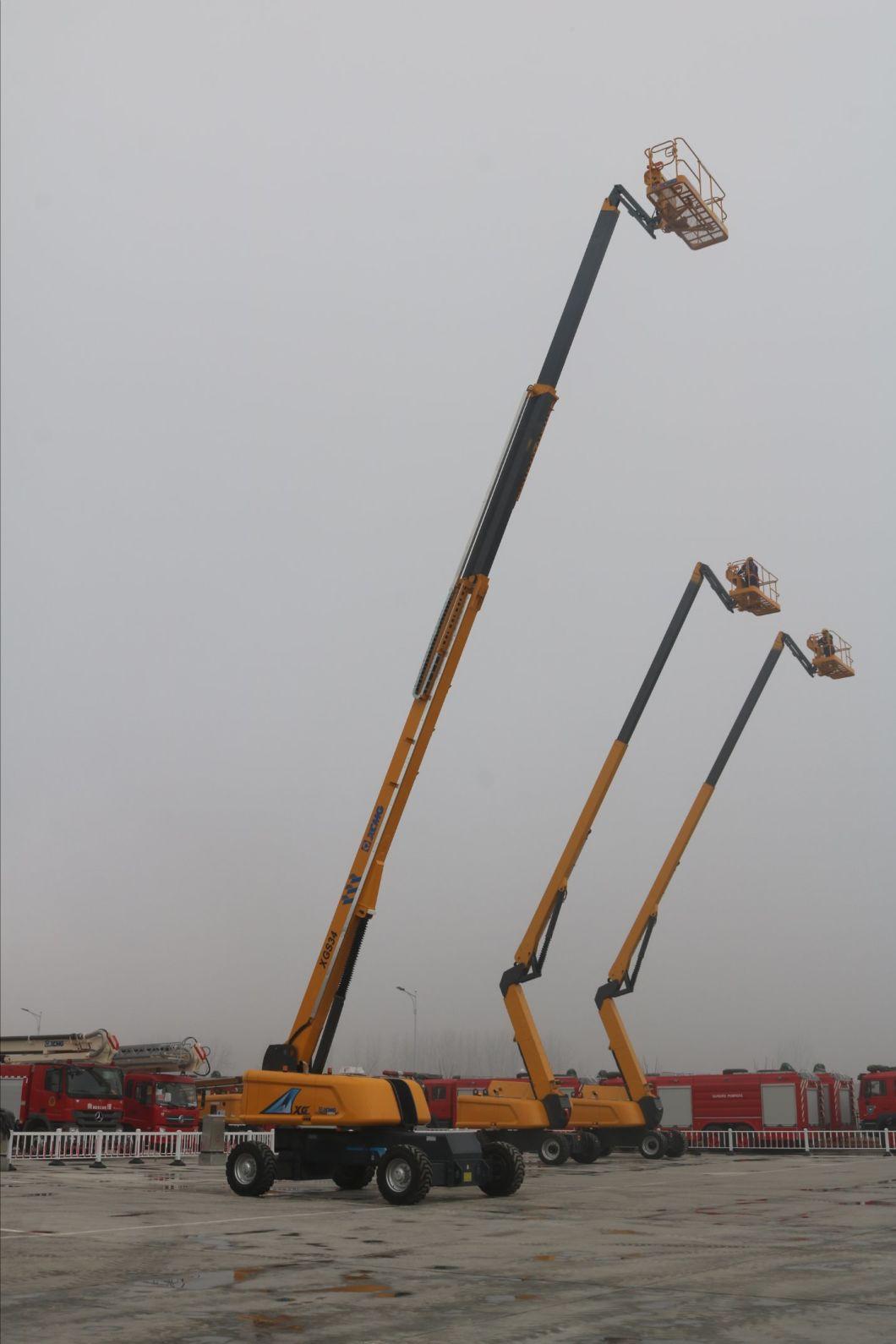

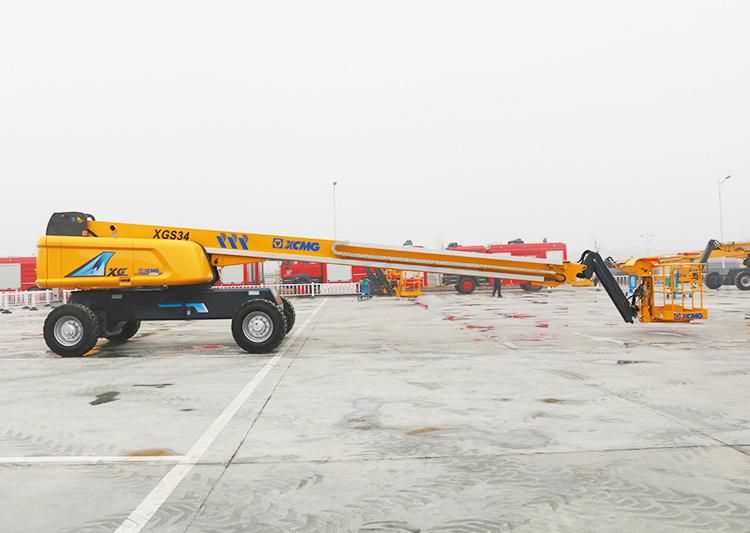

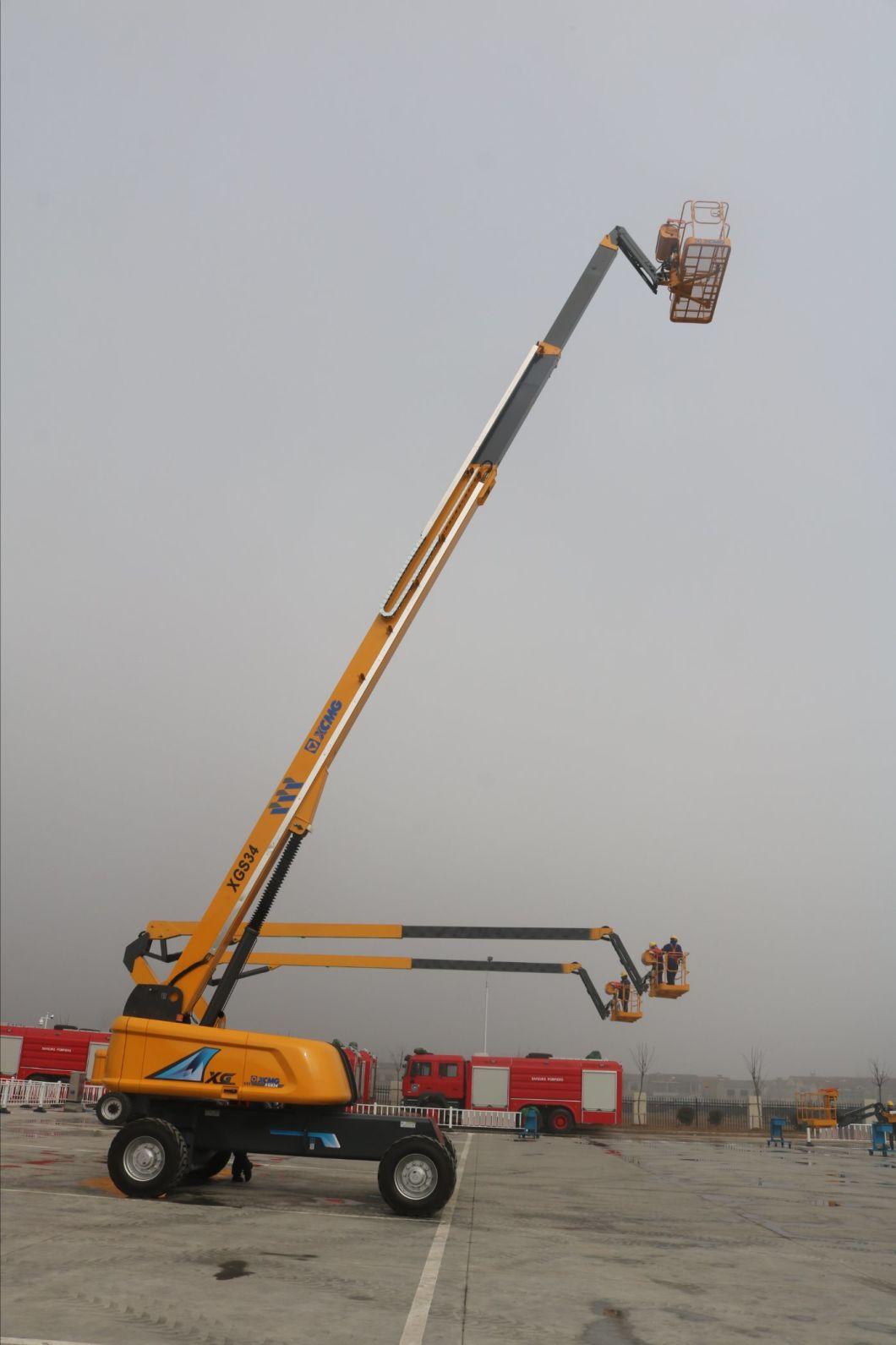

XCMG official 34m telescopic boom lift XGS34 self propelled mobile elevated aerial work platform.

XGS34 self-propelled Telescopic Mobile Elevating Work Platform: electronic control turning, wide foam tires, excellent climbing driving, adaptive to various complicated road conditions; dual loading operation curves for real-time loading control; the widest operation reach of products of the same class; the machine meets demands of users from building construction, bridge and equipment maintenance, shipyard and petrochemical industry.

Advantages and features:

* Maximum operation height 34.2m, maximum operation range 24.6m, the widest of the products of the same class, which improves the operation capacity; Strong driving capacity, grade ability up to 45%

* Undercarriage adopts the special dual-pump multi-mode steering and innovative axle regulating systems, enabling the machine to incomparably move in any complicated site.

* Multi-load envelope control technologies could real-time monitor the load, effectively making use of boom and making its work performance at leading edge.

* Specific human-machine interactive system, innovative CAN BUS control system with multiple controllers and multi-level integrated safety protection, forming a perfect safety protection system.

product parameter

Item	Unit	Parameter
Overall length of complete machine	mm	14300
Overall width (With shaft retracted/extended)	mm	2490/3800
Overall height	mm	3070
Wheelbase	mm	3800
Max. working height	m	34.2
Max. platform height	m	32.2
Max. working range	m	24.6
Max. load capacity	kg	230 (unrestricted)/340 (restricted)
Luffing range of boom	°	-6 ~ +75
Slewing angle of turntable	°	360°
Max. rearward slewing (With shaft retracted/extended)	mm	2085/1430
Dimension of platform	mm	2400×900
Slewing angle of platform	°	160
Overall weight	kg	18400
Max. traveling speed	km/h	5
Min. turning radius (axle retracted/extended)	m	8.2/10.8 (Two-wheel steering) 5.8/6.8 (Four-wheel steering)
Min. ground clearance	mm	260
Max. gradeability	%	45
Specification of tire	-	385/65D22.5
Engine model	-	Perkins1104D-44T
Engine rated power	kW/(r/min)	55.5/(2400)

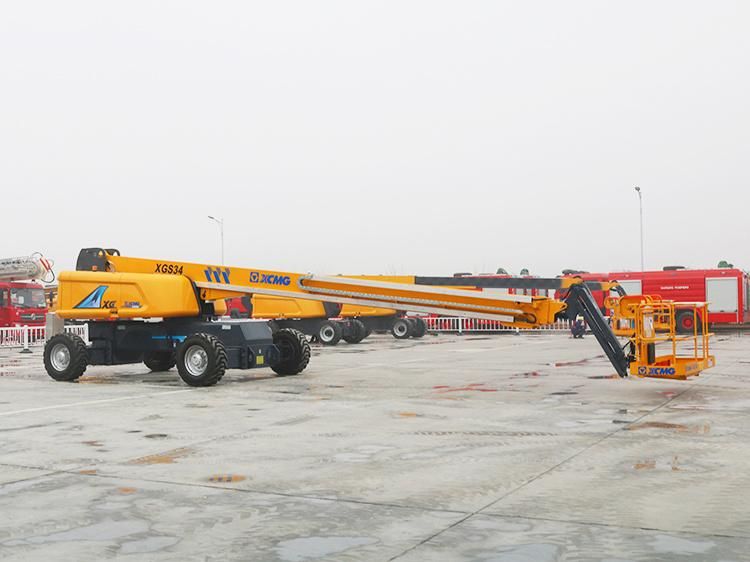

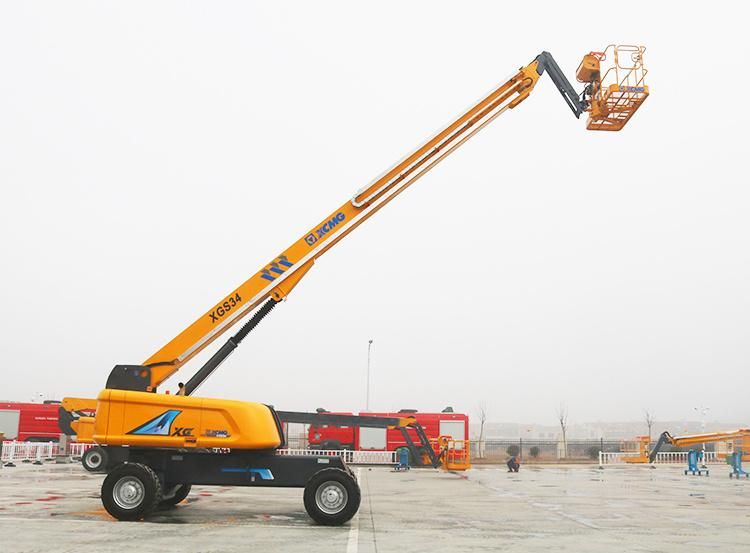

product show
