600kg Bearing Capacity Vacuum Glass Handling Trolley Robot

Jinan PLK Machinery Co., Ltd.
  • After-sales Service：Free Spare Parts, Life Techincal Support
  • Warranty：1 Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Telescoping Lift
  • Carrying Capacity：Weight Level
  • Moves：Self-propelled

Base Info

  • Driven Type：DC
  • Running Mode：Moving
  • Feature：Explosion-Proof, Insulating
  • Certification：GS, CE, RoHS, ISO 9001
  • Transport Package：Timer Box
  • Specification：6CBM
  • Trademark：PLK LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：50000 Set Per Year

Description

Basic Info.

Driven Type DC Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Transport Package Timer Box Specification 6CBM Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 50000 Set Per Year

Product Description

Electric Power Automatic Glass Vacuum Lift

Model TypeGL-LD-350GL-LD-600
Loading Capacity350kg (retract)/175kg(extend)600kg (retract)/300kg(extend)
Lifting Height3500mm3500mm
Battery2x12V/100AH2x12V/120A
ControllerVST224-15CP2207A-5102
Drive motor24V/600W24V/900W
Hydraulic power24V/2000W/5L24V/2000W/5L
Cap DiameterØ250mm/300mmØ250mm/300mm


Introduction:

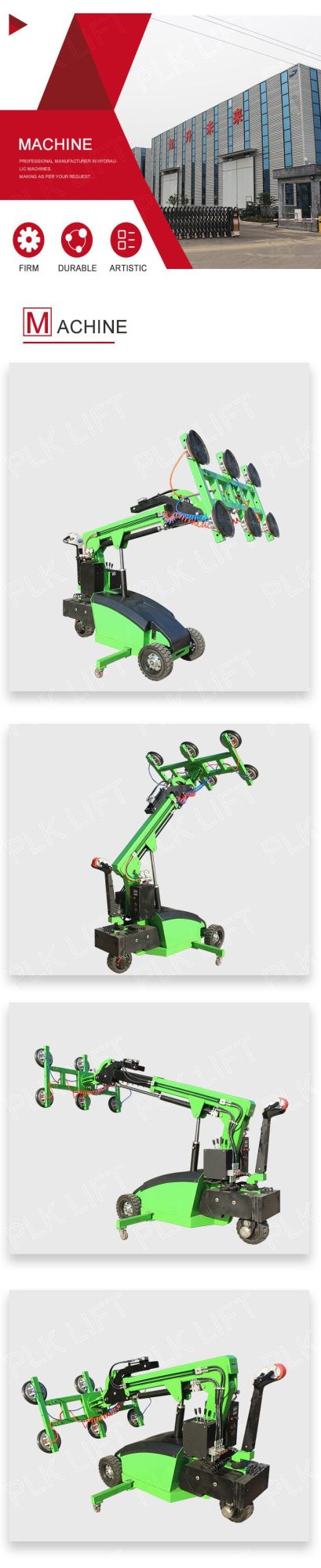

GL-LD series Vacuum Lifter: small size, easy to transport.
Specially designed for handling a variety of heavy plates made of steel, glass, granite, marble and so forth, with vacuum suction caps.

1. Lifting capacity 350kg/600kg (175kg/300kg when lifting arm is fully extended).
2. 360 degree rotation.
3. 3.5m maximum lifting height.
4. Weight of machine 660kg/1000kg

600kg Bearing Capacity Vacuum Glass Handling Trolley Robot

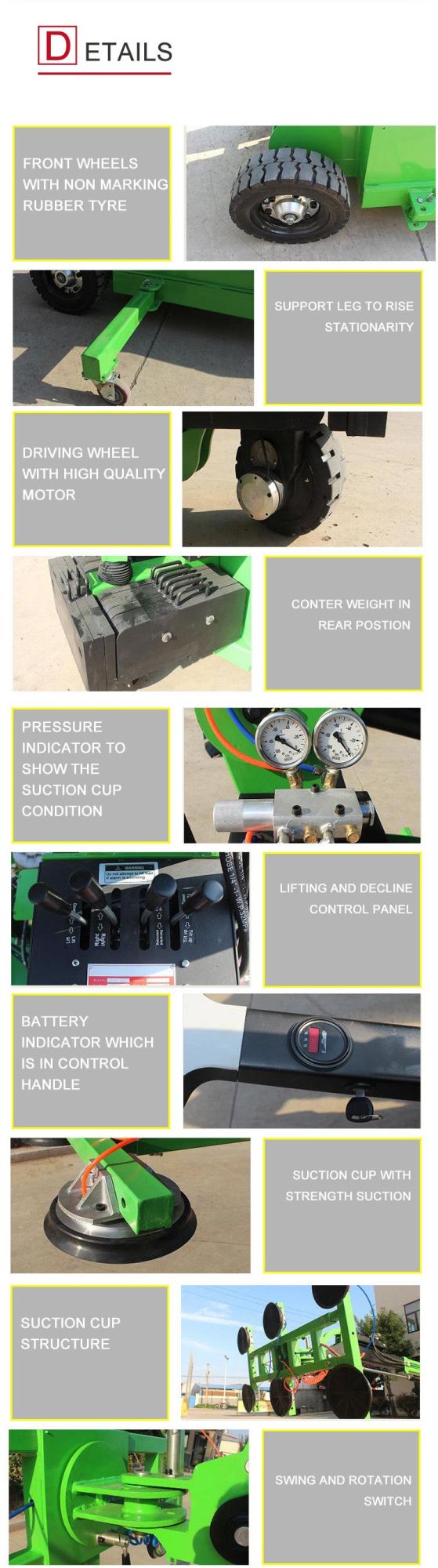

Advantages
1. Integrated control system guarantees vertical and horizontal positioning quickly and automatically.
2. DC24V reliable actuators for the lifting, extending and tipping action, efficient and accurate. Self propelled and with multiple-channel vacuum suction.
3. Competitive pricewise, labor cost reducing and environmentally friendly.
4. Vacuum lifters are treated with shot blasting and stoving varnish, endowed with anti-corrosion function.
5. High quality pump station makes stable lift and fall.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift in case of hose burst.
7. Pressure relief valve prevents overload; Flow control valve makes descending speed adjustable.
8. Simple structure makes it much easier to operate and maintain.
9. Up to American standard ANSI/ASME and European standard EN1570.
600kg Bearing Capacity Vacuum Glass Handling Trolley Robot
