• Model NO.：GTWY4SERIES, 6 SERIES, 8 SERIES, 12SERIES,
• Driven Type：AC
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：ISO 9001
• Rated Loading：100~200kg
• Rated Lifting Height：4-20m
• Table Size：2100*1200mm
• Cylinder Model：Hsg80,50
• Cylinder Quantity：2
• Rated Power：2kw
• Tyre Type：Pneumatic Tyres
• Tyre Quantity：4 PCS
• Distribution Box：Tracy Brand
• Rise Speed：4-6m,M
• Falling Speed：Adjustable
• MOQ：1 Unit
• Transport Package：Poly Wood Box
• Specification：4M-16M
• Trademark：JDY
• Origin：Shandong, China
• HS Code：8428109000
• Production Capacity：100pieces Per Week

Basic Info.

Model NO. GTWY4SERIES, 6 SERIES, 8 SERIES, 12SERIES, Driven Type AC Running Mode Moving Feature Explosion-Proof Certification ISO 9001 Rated Loading 100~200kg Rated Lifting Height 4-20m Table Size 2100*1200mm Cylinder Model Hsg80/50 Cylinder Quantity 2 Rated Power 2kw Tyre Type Pneumatic Tyres Tyre Quantity 4 PCS Distribution Box Tracy Brand Rise Speed 4-6m/M Falling Speed Adjustable MOQ 1 Unit Transport Package Poly Wood Box Specification 4M-16M Trademark JDY Origin Shandong, China HS Code 8428109000 Production Capacity 100pieces Per Week

Product Description

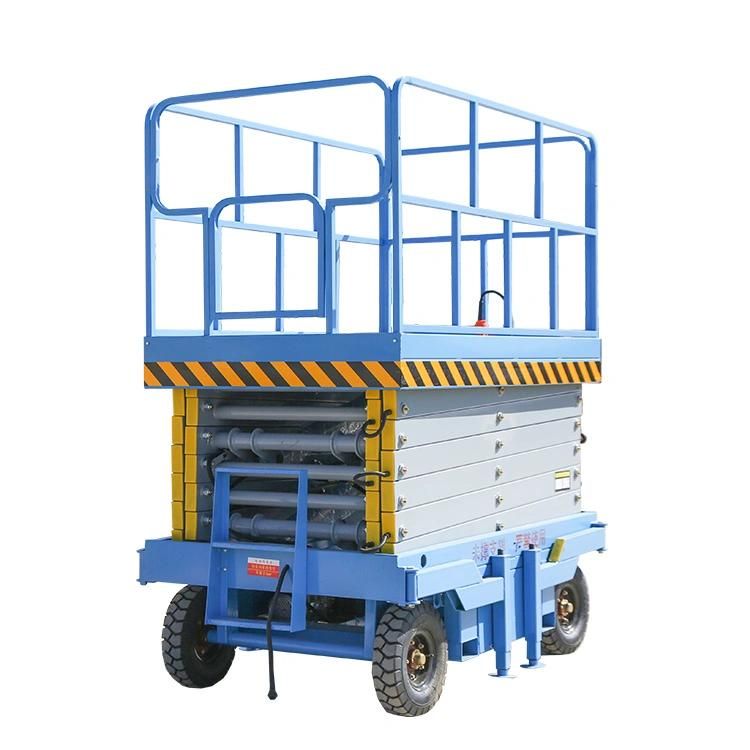

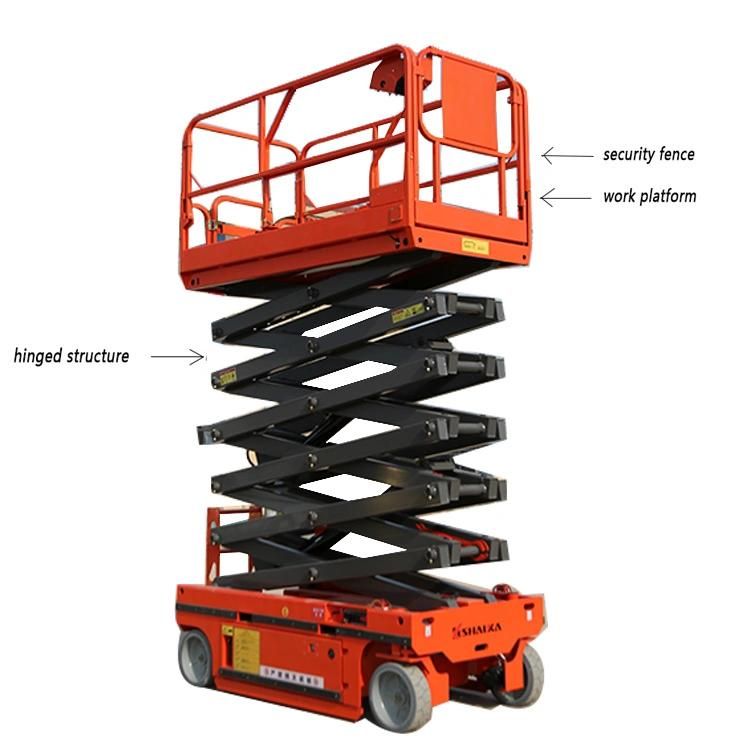

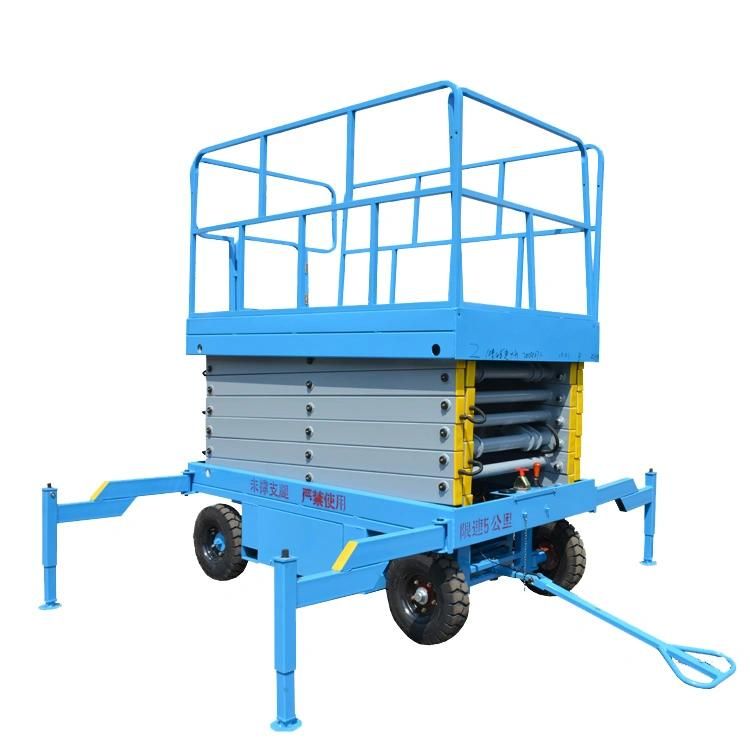

JDY SERIES LIFTING TABLE
Our  Lift Table is designed off the feedback of numerous workshops around the country in need of a lift table that is smaller and not so high price point. With the small table, it's much easier to move around within the shop and much easier to find a storage location for it. What makes it unique? It's made to work on WALMARKER,BESTBUY  and many other manufactures, making this table versatile for any job!

MAIN PARAMETERS:

MODEL NO	GTJZD-6	GTJZD-6X	GTJZD-8	GTJZD-8X
MAX WORKING HEIGHT	8.00m	8.00m	10.00m	10.00m
MAX HEIGHT OF WORKING TABLE	6.00m	6.00m	8.00m	8.00m
RATED LOADING	230kg	320kg	230kg	320kg
RATED LOADING OF EXPANDING TABLE	113kg	113kg	113kg	113kg
WORKING TABLE SIZE	2.26×0.81×1.13m	2.26×1.13×1.1m	2.26×0.81×1.1m	2.26×1.13×1.1m
OVERALL SIZE (UNFOLD)	2.475×0.81×2.213m	2.475×1.17×2.213m	2.475×0.81×2.341m	2.475×1.17×2.341m
OVERALL SIZE	2.475×0.81×1.763m	2.475×1.17×1.763m	2.475×0.81×1.891m	2.475×1.17×1.891m
SIZE OF EXPANDING TABLE	0.9m	0.9m	0.9m	0.9m
MIN GROUND CLEARANCE	0.1/0.02m	0.1/0.02m	0.1/0.02m	0.1/0.02m
WHEELBASE	1.92m	1.92m	1.92m	1.92m
MIN TURNING RADIUS	3m	3.1m	3m	3.1m
RATED POWER OF DRIVING MOTOR	2×24V/1.1kw	2×24V/1.1kw	2×24V/1.1kw	2×24V/1.1kw
RATED POWER OF RISING MOTOR	24V/2.0kw	24V/2.0kw	24V/2.0kw	24V/2.0kw
SPEED OF RISE &DECLINE	3-5m/min	3-5m/min	3-5m/min	3-5m/min
MAX WALKING SPEED(UNWORKING)	4.0km/h	4.0km/h	4.0km/h	4.0km/h
MAX WALKING SPEED OF WORKING	0km/h	0km/h	0km/h	0km/h
BATTERY TYPE	4×6V/180ah	4×6V/180ah	4×6V/180ah	4×6V/180ah
RECHARGER MODEL	24V/25A	24V/25A	24V/25A	24V/25A
MAX GRADE	25%	25%	25%	25%
MAX GRADE OF WORKING	1.5°/3°	2°/3°	1.5°/3°	2°/3°
TYRE SIZE(CARRIER WHEEL)	Φ250×80mm	Φ250×80mm	Φ250×80mm	Φ250×80mm
TYRE SIZE (SUPPORTING WHEEL)	Φ300×100mm	Φ300×100mm	Φ300×100mm	Φ300×100mm
WEIGHT	1750kg	1960kg	1880kg	2090kg

WORKINGSHOW:
