• Model NO.：HW
• Driven Type：Hydraulic
• Running Mode：Stationary
• Feature：Explosion-Proof
• Certification：GS, CE, RoHS, ISO 9001
• Voltage：220V 380V, Customized
• Color：Red, Yellow, Blue, Orange, Green, Customized
• Load Capacity：100kg to 10, 000kg Customized
• Lifting Height：1m to 10m Customized
• Platform Size：as Needed
• Feature 1：with Wheels for Easy Moving
• Feature 2：Customized Guardrails Available
• Customization 2：with Protective Curtains
• Customization 5：Battery Operated Moving
• Customization 6：One Controller for Two Units Working Together
• Customization 3：with Rollers on Table Top
• Working Principle：Hydraulic Electrical Lifting Control System
• Safety Precautions 1：Aluminum Safety Sensor
• Safety Precautions 2：Explosion Proof Valve
• Safety Precautions 4：Emergency Decline Valve
• Transport Package：High Quality Box
• Specification：1300*820*2000mm 320kg
• Trademark：PLK LIFT
• Origin：China(Mainland)
• HS Code：8428909090
• Production Capacity：1000 Set,Month

Basic Info.

Model NO. HW Driven Type Hydraulic Running Mode Stationary Feature Explosion-Proof Certification GS, CE, RoHS, ISO 9001 Voltage 220V 380V, Customized Color Red, Yellow, Blue, Orange, Green, Customized Load Capacity 100kg to 10, 000kg Customized Lifting Height 1m to 10m Customized Platform Size as Needed Feature 1 with Wheels for Easy Moving Feature 2 Customized Guardrails Available Customization 2 with Protective Curtains Customization 5 Battery Operated Moving Customization 6 One Controller for Two Units Working Together Customization 3 with Rollers on Table Top Working Principle Hydraulic Electrical Lifting Control System Safety Precautions 1 Aluminum Safety Sensor Safety Precautions 2 Explosion Proof Valve Safety Precautions 4 Emergency Decline Valve Transport Package High Quality Box Specification 1300*820*2000mm 320kg Trademark PLK LIFT Origin China(Mainland) HS Code 8428909090 Production Capacity 1000 Set/Month

Product Description

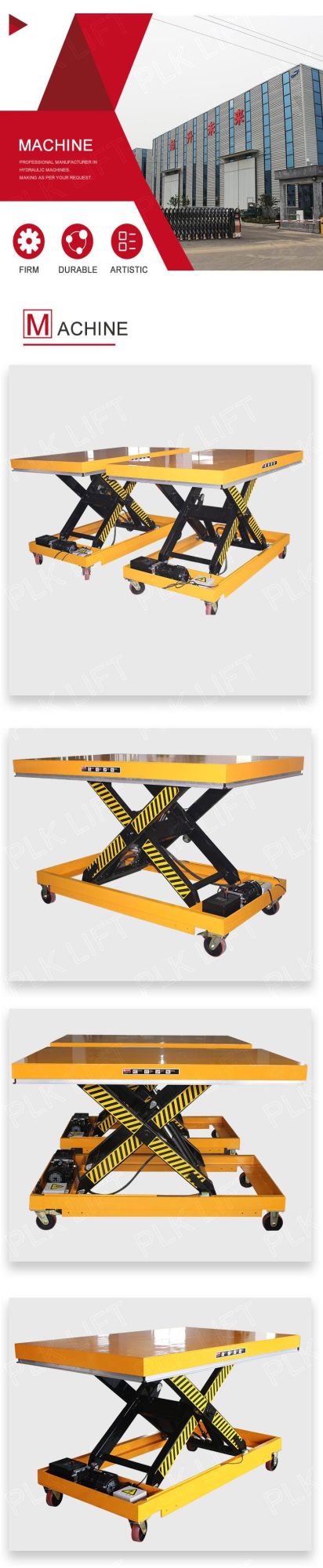

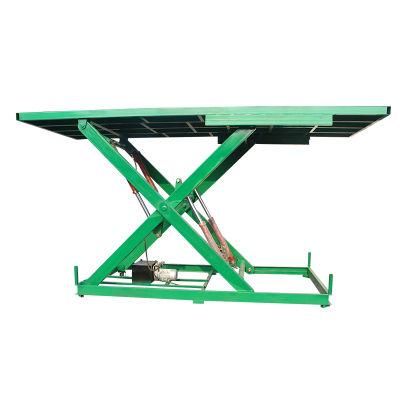

Hydraulic Electric Scissor Lift Table with Wheels



Scissor lift table adopts much stronger materials and parts to increase the load capacity and lifting height.This is the customzied products, we will make the platform size, lifting height and load capacity as per your requests.

With wheels equipped on the electric scissor lift table, it is more easily moving and operation. Having it will be your wisest choice.

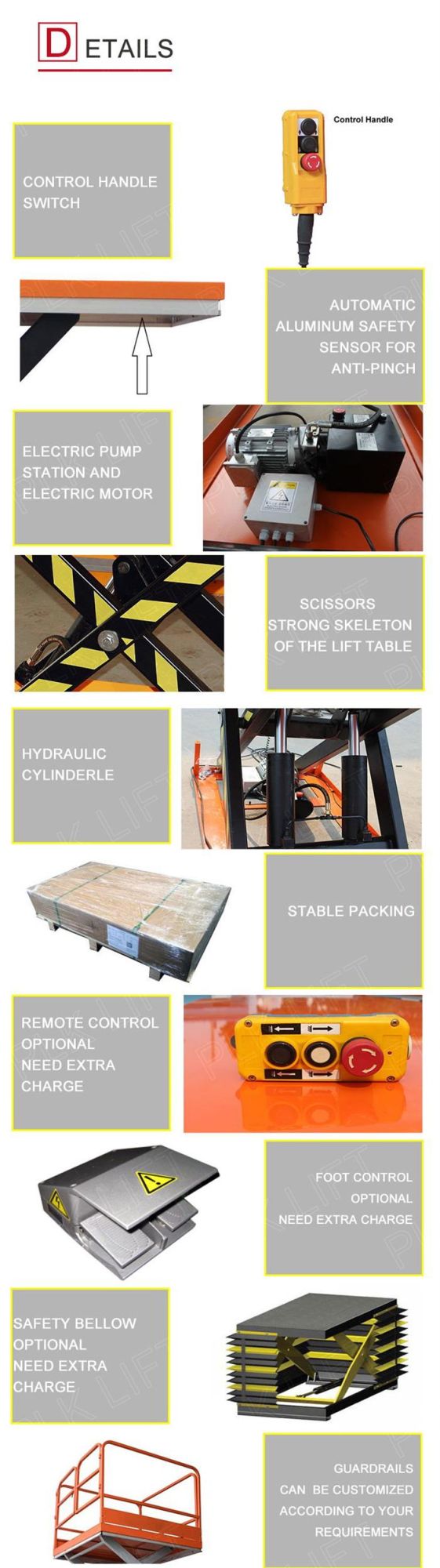

Features & Advantages:

1. Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
2. High quality pump station makes scissor lift table lifts and fall very stable.
3. Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4. Removable lifting eye to help lift the table and install.
5. Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
8. Up to American standard ANSI/ASME and Europe standard EN1570
9. Safe clearance between scissor to prevent damages during operation.
10. Brief structure make it much easier to operate and maintain.
11. Stop at the per-concerted and accurate location point.

Safety Precautions:

1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Overload protection locking device: in case of dangerous overload.
5. Anti-dropping device: Prevent falling of platform.
6. Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.
