Mobile Hydraulic Scissor Type Lift Double Layer Lift Table

Jinan PLK Machinery Co., Ltd.
  • After-sales Service：Online Service, Free Express Accessories.
  • Warranty：12 Months
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Middle-Level
  • Moves：Stationary

Base Info

  • Model NO.：HW
  • Driven Type：Hydraulic
  • Running Mode：Stationary
  • Feature：Explosion-Proof
  • Certification：GS, CE, RoHS, ISO 9001
  • Voltage：220V 380V
  • Color：Customized
  • Lift Speed：4-6m,Min
  • Product Name：Platform Lift
  • Control：Control Box
  • Platform：Anti-Skid Checkered Plate
  • Install：Install
  • Working Condition：Indoor Outdoor
  • Transport Package：High Quality Box
  • Specification：1300*820*2000mm 320kg
  • Trademark：PLK LIFT
  • Origin：China(Mainland)
  • HS Code：8428909090
  • Production Capacity：1000 Set,Month

Description

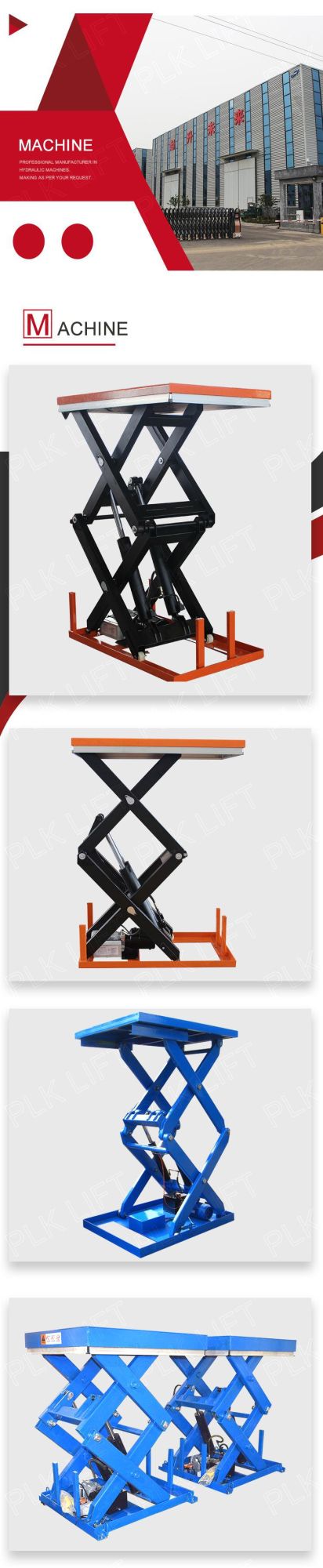

as per your local standardNet Weightkg210295520 Double Scissor Lift is our standard model, it is equipped with two layers scissor. The max. platform height from 1000mm to 1500mm. Load capacity has 1000kg, 2000kg and 4000kg. lift

Double scissor lift upgrade from single scissor lift, and also equipped with safety valve: explosion-proof valve, spillover valve, and emergency decline valve etc. To ensure the safety both for goods and user. There is also 6 types options you can choose. PLK double scissor lift table is popular for its easily operation. Having it will be your wisest choice.
Mobile Hydraulic Scissor Type Lift Double Layer Lift TableMobile Hydraulic Scissor Type Lift Double Layer Lift Table

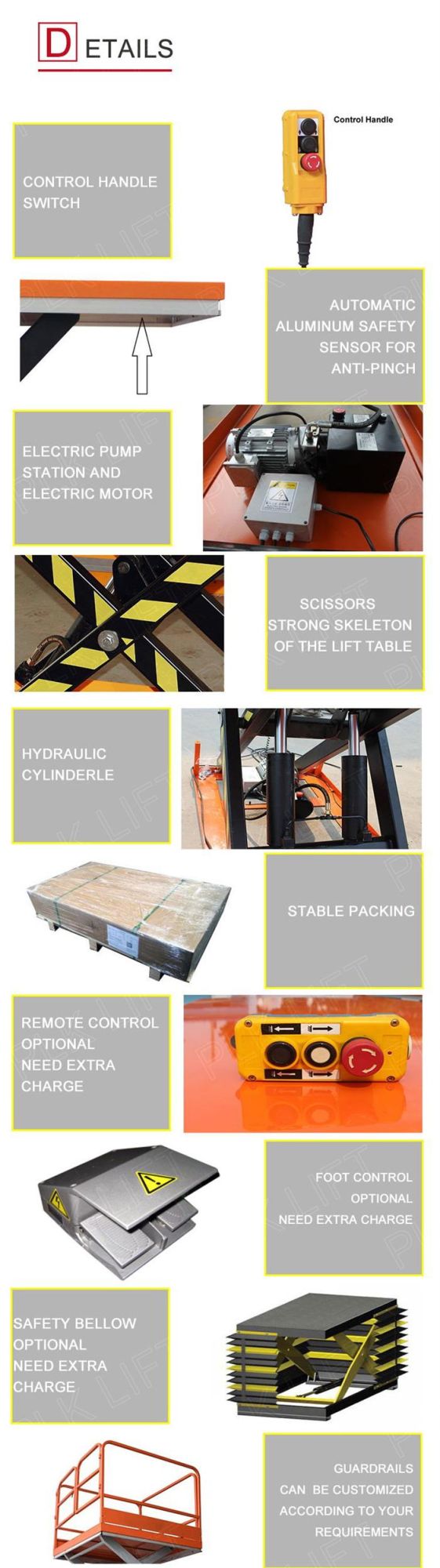

Features & Advantages:
  1. Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
  2. High quality pump station makes scissor lift table lifts and fall very stable.
  3. Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
  4. Removable lifting eye to help lift the table and install.
  5. Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
  6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
  7. Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
  8. Up to American standard ANSI/ASME and Europe standard EN1570
  9. Safe clearance between scissor to prevent damages during operation.
  10. Brief structure make it much easier to operate and maintain.
  11. Stop at the per-concerted and accurate location point.
Safety Precautions:
  1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
  2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
  3. Emergency decline valve: it can go down when you meet an emergency or the power off.
  4. Overload protection locking device: in case of dangerous overload.
  5. Anti-dropping device: Prevent falling of platform.
  6. Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.



Mobile Hydraulic Scissor Type Lift Double Layer Lift Table

Mobile Hydraulic Scissor Type Lift Double Layer Lift TableContact Information:
