High Quality 2000kg Low Profile Scissor Lift Table with CE
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online Service, Free Express Accessories.
- Warranty：12 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Weight Level
- Moves：Stationary
Base Info
- Driven Type：Hydraulic
- Running Mode：Stationary
- Feature：Explosion-Proof, Insulating
- Certification：CE, RoHS, ISO 9001
- Load Capacity：1000kg, 1500kg, 2000kg
- Max. Lifting Height：Around 860mm to 870mm
- Platform Size：1325X1074mm
- Self Height：85mm
- Lifting Time：25s
- Work Principle：Hydraulic Lifting System
- Voltage：110V, 220V, 380V, 400V, Customized
- Color：Red, Yellow, Orange, Blue, Green, Customized
- Safety Precautions 1：Aluminum Safety Sensor
- Certificates：Ce, RoHS, ISO, SGS
- Usage：Industrial Production Line
- Using 2：Low Height Goods Loading Unloading
- Usage 3：Ware House Pallet Goods Lifting
- Safety Precautions 2：Explosion Proof Valve
- Safety Precautions 3：Emergency Decline Valve
- Transport Package：Wooden Pallet and High Quality Paper Boxes with St
- Specification：1450*985*100
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：5000
Description
Basic Info.
Driven Type Hydraulic Running Mode Stationary Feature Explosion-Proof, Insulating Certification CE, RoHS, ISO 9001 Load Capacity 1000kg, 1500kg, 2000kg Max. Lifting Height Around 860mm to 870mm Platform Size 1325X1074mm Self Height 85mm Lifting Time 25s Work Principle Hydraulic Lifting System Voltage 110V, 220V, 380V, 400V, Customized Color Red, Yellow, Orange, Blue, Green, Customized Safety Precautions 1 Aluminum Safety Sensor Certificates Ce, RoHS, ISO, SGS Usage Industrial Production Line Using 2 Low Height Goods Loading Unloading Usage 3 Ware House Pallet Goods Lifting Safety Precautions 2 Explosion Proof Valve Safety Precautions 3 Emergency Decline Valve Transport Package Wooden Pallet and High Quality Paper Boxes with St Specification 1450*985*100 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 5000Product Description
Hydraulic Electric Low Profile Scissor Lift Table
PLK LIFT Brands Low Profile Scissor Lift Table are one of the most ideal equipment for loading and unloading goods.
Lowest platform height can make goods loading more convenient, peopled can put down the goods easily. And its load capacity are 1000kg, 1500kg and 2000kg.
It is widely used in the warehouse, small shop and other place, to help people lifting the wooden or plastic pallet, goods and material etc.
Data Sheet
| Model | Load Capacity(kg) | Max. Platform Height(mm) | Platform Size (mm) | Base Size (mm) | Self Height (mm) | Lifting Time(s) | Voltage | Net weight (KG) |
| HY1001 | 1000 | 860 | 1325x1074 | 1325x1074 | 85 | 25 | customized | 357 |
| HY1002 | 1000 | 860 | 1325x1074 | 1325x1074 | 85 | 25 | customized | 364 |
| HY1003 | 1000 | 860 | 1325x734 | 1325x734 | 85 | 25 | customized | 326 |
| HY1004 | 1000 | 860 | 1325x734 | 1325x734 | 85 | 25 | customized | 332 |
| HY1005 | 1000 | 860 | 1325x734 | 1325x734 | 85 | 25 | customized | 352 |
| HY1501 | 1500 | 870 | 1325x734 | 1325x734 | 105 | 30 | customized | 302 |
| HY1502 | 1500 | 870 | 1325x734 | 1325x734 | 105 | 30 | customized | 401 |
| HY1503 | 1500 | 870 | 1325x734 | 1325x734 | 105 | 30 | customized | 415 |
| HY2001 | 2000 | 870 | 1427x1114 | 1427x1114 | 105 | 35 | customized | 419 |
| HY2002 | 2000 | 870 | 1427x734 | 1427x734 | 105 | 35 | customized | 405 |
This scissor lift table equipped with safety valve, to protect the safety both for goods and user.

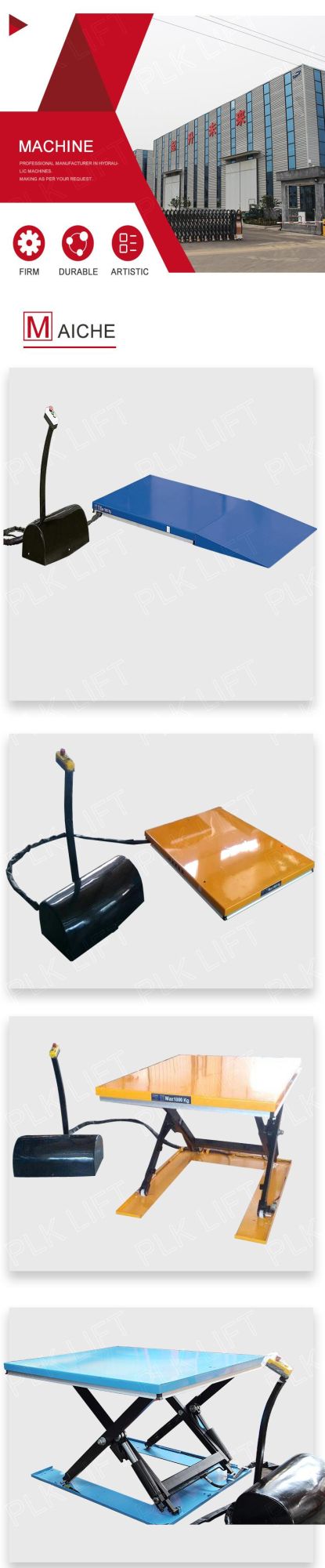

Product Show

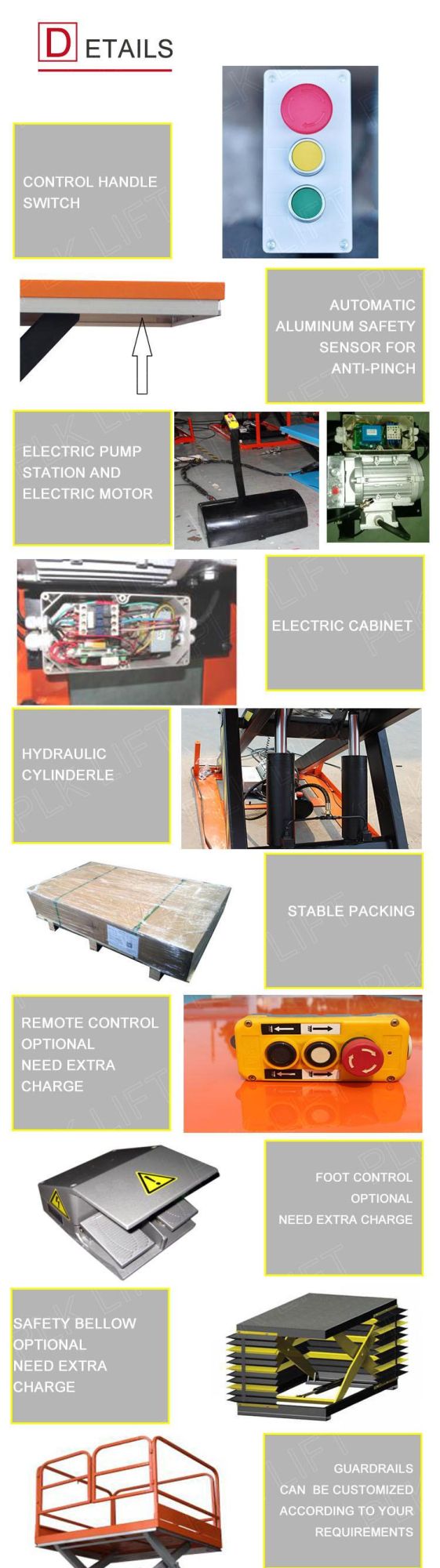

Details Show

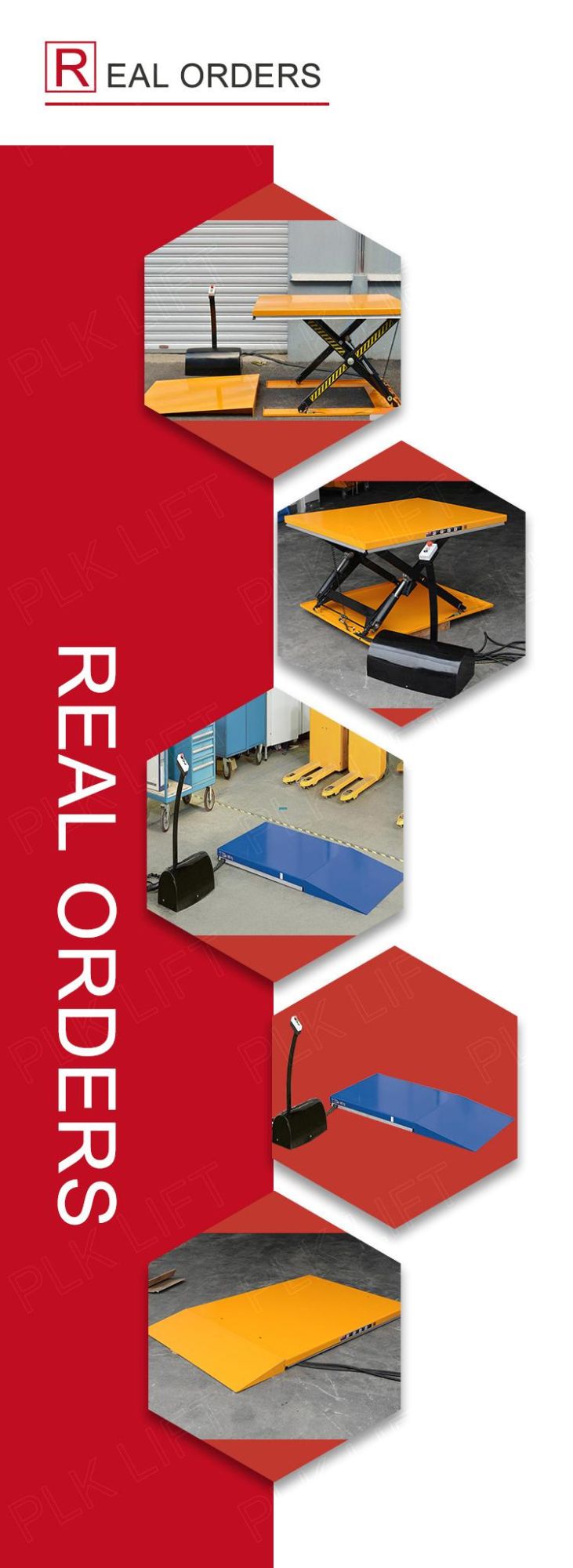

Bulk Order Show
Factory Show
