• Model NO.：MT1600-2
• Driven Type：AC
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Max Platform Height：16 M
• Max Working Height：18 M
• Load Capacity：150 Kg
• Platform Size：1.8*0.7 M
• Lift Motor：24V 1.5 Kw
• Charger：12V,15A
• Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
• Specification：1.88*0.81*2.68m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：3000 Units Per Year

Basic Info.

Model NO. MT1600-2 Driven Type AC Running Mode Moving Feature Explosion-Proof Certification CE, ISO 9001 Max Platform Height 16 M Max Working Height 18 M Load Capacity 150 Kg Platform Size 1.8*0.7 M Lift Motor 24V 1.5 Kw Charger 12V/15A Transport Package Wrapped with Film, Packed in a Pallet/ Wooden Case Specification 1.88*0.81*2.68m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per Year

Product Description

CE Certified double Masts Manual Pushing Vertical Lift with150kg Laod Capacity The double masts vertical lift uses high strength aluminum section bar to produce. It has the characteristics of beautiful appearance, small size, light weight, good stability and flexible operation.
The lifting height ranges from 1.99m to 16m for different size Aluminum Aerial Work Platform and the loading capacity varies from 150Kg to 250Kg.
The double masts vertical lift mainly composed by aluminum mast, work platform, basement, control system, wheels and outriggers. The main featured parts are showing in the below.

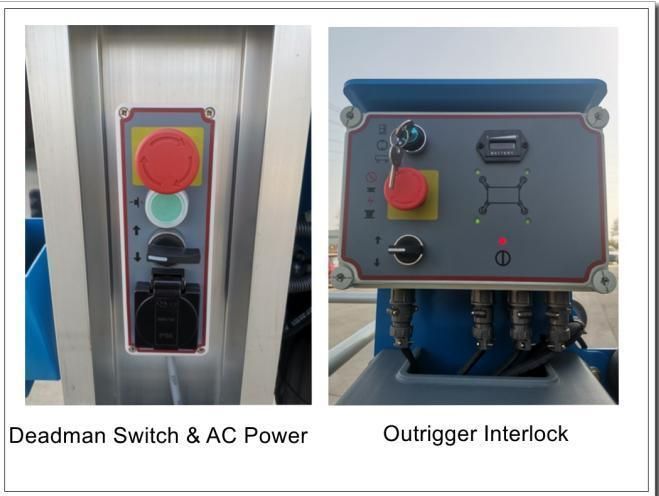

1.Outrigger Interlock2.Deadman Switch 3.AC Power on Platform4.Emergency Lowing System
5.Leveling Gauge

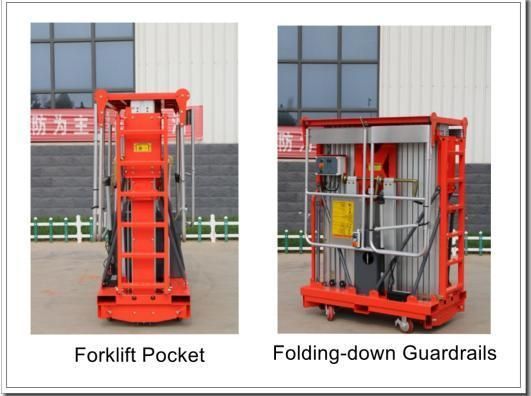

6.Forklift Pocket
7. Cylinder Holding Valve
8. Easy To Operate Up/Down On Platform And Ground
9. Double Chains Improving the Safety And Strength

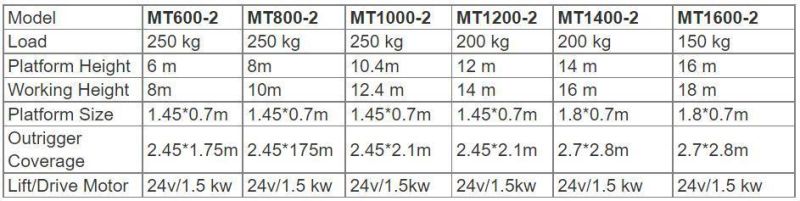

Specification
Details


Our Company
Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and Africa


Certificates


Factory Equipment


Client & Exhibition

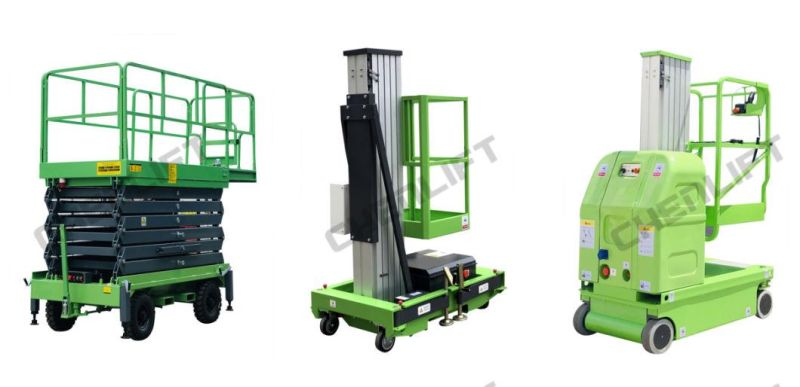

Other Related Products


Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
