6m 8m 10m 12m 14m Portable Vetical Lift for Two Men

Chenlift (Suzhou) Machinery Co., Ltd.
  • After-sales Service：Can Post Spare Parts Within 1 Week
  • Warranty：One Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Lift Chain
  • Carrying Capacity：Light Level
  • Moves：Manual Pushing

Base Info

  • Model NO.：MT600-2
  • Driven Type：AC
  • Running Mode：Moving
  • Feature：Explosion-Proof
  • Certification：CE, ISO 9001
  • Max Platform Height：6m
  • Max Working Height：8m
  • Load Capacity：250 Kg
  • Platform Size：1.45*0.7 M
  • Lift/Drive Motor：24V,1.5kw
  • Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
  • Specification：1.45*0.81*1.99M
  • Trademark：CHEN LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：3000 Units Per Year

Description

Basic Info.

Model NO. MT600-2 Driven Type AC Running Mode Moving Feature Explosion-Proof Certification CE, ISO 9001 Max Platform Height 6m Max Working Height 8m Load Capacity 250 Kg Platform Size 1.45*0.7 M Lift/Drive Motor 24V/1.5kw Transport Package Wrapped with Film, Packed in a Pallet/ Wooden Case Specification 1.45*0.81*1.99M Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per Year

Product Description

6m 8m 10m 12m 14m Portable Vetical Lift for two men  The double masts vertical lift uses high strength aluminum section bar to produce. It has the characteristics of beautiful appearance, small size, light weight, good stability and flexible operation.

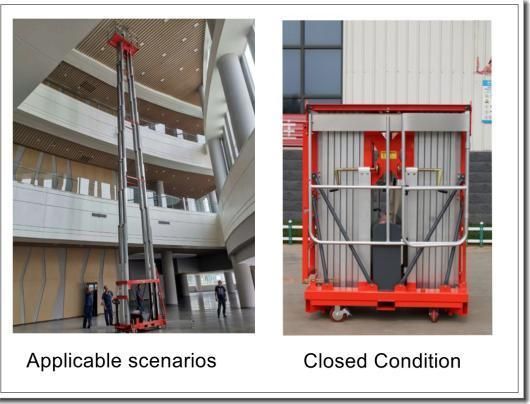

The lifting height ranges from 1.99m to 16m for different size Aluminum Aerial Work Platform and the loading capacity varies from 150Kg to 250Kg.

The double masts vertical lift mainly composed by aluminum mast, work platform, basement, control system, wheels and outriggers. The main featured parts are showing in the below.

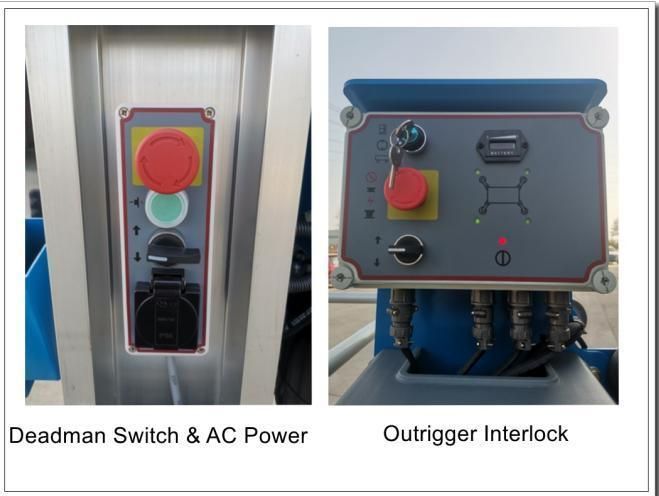

1.Outrigger Interlock2.Deadman Switch 3.AC Power on Platform4.Emergency Lowing System
5.Leveling Gauge

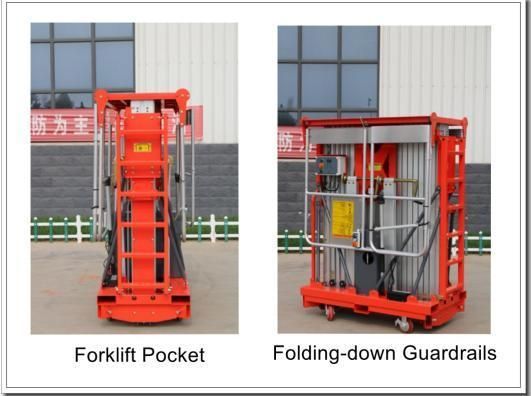

6.Forklift Pocket
7. Cylinder Holding Valve
8. Easy To Operate Up/Down On Platform And Ground
9. Double Chains Improving the Safety And Strength

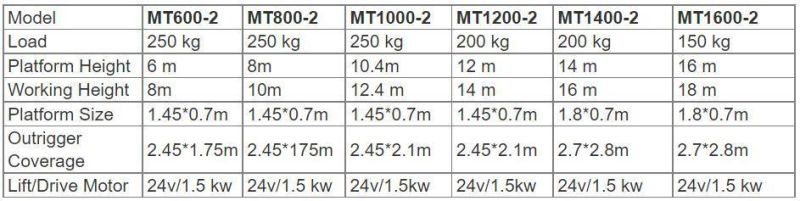

Specification6m 8m 10m 12m 14m Portable Vetical Lift for Two MenDetails
