10m Height 136kg Load Capacity Aluminun Single Mast Vertical One Man Lift

Chenlift (Suzhou) Machinery Co., Ltd.
  • After-sales Service：Can Post Spare Parts Within 1 Week
  • Warranty：One Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Lift Chain
  • Carrying Capacity：Middle-Level
  • Moves：Manual Pushing

Base Info

  • Model NO.：MT1000-1
  • Driven Type：AC
  • Running Mode：Moving
  • Certification：CE, ISO 9001
  • Max Platform Height：10.4 M
  • Max Working Height：12.4 M
  • Load Capacity：136 Kg
  • Platform Size：0.67*0.66 M
  • Lift/Drive Motor：12V,0.75 Kw
  • Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
  • Specification：1.42*0.74*1.99m
  • Trademark：CHEN LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：3000 Units Per Year

Description

Basic Info.

Model NO. MT1000-1 Driven Type AC Running Mode Moving Certification CE, ISO 9001 Max Platform Height 10.4 M Max Working Height 12.4 M Load Capacity 136 Kg Platform Size 0.67*0.66 M Lift/Drive Motor 12V/0.75 Kw Transport Package Wrapped with Film, Packed in a Pallet/ Wooden Case Specification 1.42*0.74*1.99m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per Year

Product Description

10m Height 136kg Load Capacity Aluminun Single Mast Vertical One Man Lift The Single Mast Vertical Lift is mainly used for the installation and maintenance of the narrow spaces such as workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and more. It is easily to go through the regular doors and elevators.
Power supply standard is AC version (110V or 220V or 380V) and DC chargeable battery version (12V ) or AC &DC version are both optional. DC battery version always comes with battery charger, batteries can be recharged by automatic, built-in charger, and battery discharge indicator warns of low charge conditions.
The lifting height ranges from 1.99m to 12m for different size Vertical Lift and the loading capacity varies from 120Kg to 150Kg.
Features

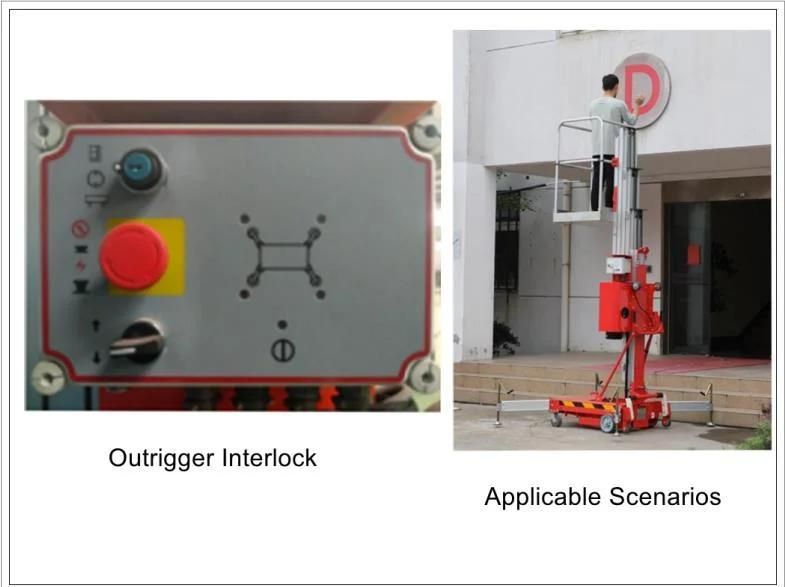

1.Outrigger Interlock
2.Deadman Switch
3.AC power on Platform
4.Emergency Stop Button

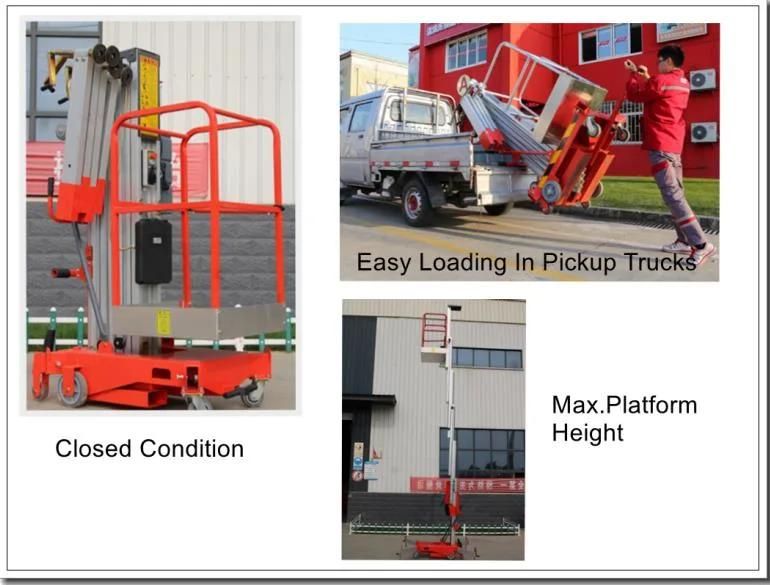

5.Easily Loading to Pickup Truck
6.Emergency Lowing System
7.Leveling Gauge
8.Forklift Pocket
9.Cylinder Holding Valve

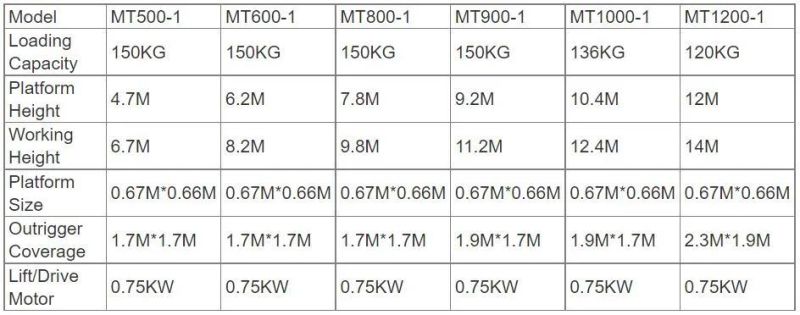

Specification10m Height 136kg Load Capacity Aluminun Single Mast Vertical One Man LiftDetails
10m Height 136kg Load Capacity Aluminun Single Mast Vertical One Man Lift10m Height 136kg Load Capacity Aluminun Single Mast Vertical One Man Lift10m Height 136kg Load Capacity Aluminun Single Mast Vertical One Man Lift
Factory Equipment
10m Height 136kg Load Capacity Aluminun Single Mast Vertical One Man Lift

Client &Exhibition
10m Height 136kg Load Capacity Aluminun Single Mast Vertical One Man Lift
Other Related Products
10m Height 136kg Load Capacity Aluminun Single Mast Vertical One Man Lift

Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
