6m Platform Height Double Masts Semi Electric Vertical Lift with Tilting Function

Chenlift (Suzhou) Machinery Co., Ltd.
  • After-sales Service：Can Post Spare Parts Within 1 Week
  • Warranty：One Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Lift Chain
  • Carrying Capacity：Middle-Level
  • Moves：Manual Pushing

Base Info

  • Model NO.：MT600-2
  • Driven Type：AC
  • Running Mode：Moving
  • Feature：Explosion-Proof
  • Certification：CE, ISO 9001
  • Max Platform Height：6 M
  • Max Working Height：8m
  • Load Capacity：250 Kg
  • Platform Size：1.45*0.7 M
  • Lift/Drive Motor：24V,1.5kw
  • Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
  • Specification：1.45*0.81*1.99M
  • Trademark：CHEN LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：3000 Units Per Year

Description

Basic Info.

Model NO. MT600-2 Driven Type AC Running Mode Moving Feature Explosion-Proof Certification CE, ISO 9001 Max Platform Height 6 M Max Working Height 8m Load Capacity 250 Kg Platform Size 1.45*0.7 M Lift/Drive Motor 24V/1.5kw Transport Package Wrapped with Film, Packed in a Pallet/ Wooden Case Specification 1.45*0.81*1.99M Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per Year

Product Description

6m Platform Height double Masts Semi Electric Vertical Lift with Tilting Function
 The double masts vertical lift uses high strength aluminum section bar to produce. It has the characteristics of beautiful appearance, small size, light weight, good stability and flexible operation.
The lifting height ranges from 1.99m to 16m for different size Aluminum Aerial Work Platform and the loading capacity varies from 150Kg to 250Kg.
The double masts vertical lift mainly composed by aluminum mast, work platform, basement, control system, wheels and outriggers. The main featured parts are showing in the below.
1.Outrigger Interlock
2.Deadman Switch
3.AC Power on Platform
4.Emergency Lowing System
5.Leveling Gauge

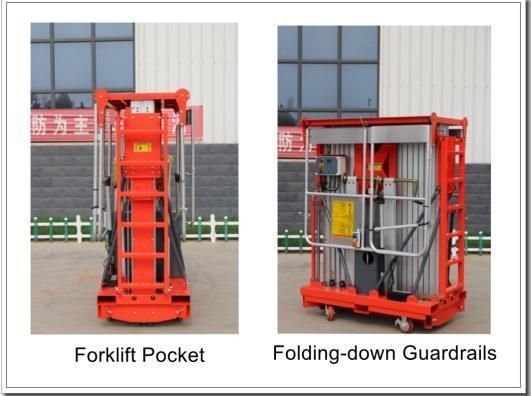

6.Forklift Pocket
7. Cylinder Holding Valve
8. Easy To Operate Up/Down On Platform And Ground
9. Double Chains Improving the Safety And Strength

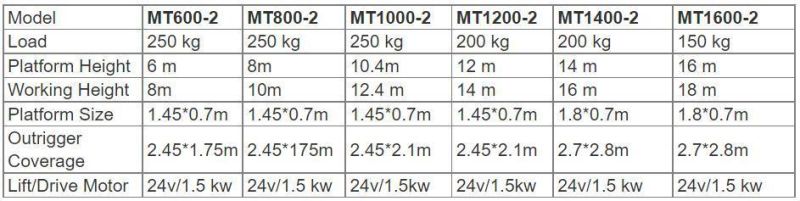

Specification6m Platform Height Double Masts Semi Electric Vertical Lift with Tilting FunctionDetails
6m Platform Height Double Masts Semi Electric Vertical Lift with Tilting Function6m Platform Height Double Masts Semi Electric Vertical Lift with Tilting Function6m Platform Height Double Masts Semi Electric Vertical Lift with Tilting FunctionOur Company
Our company, CHENLIFT (SUZHOU) MACHINERY CO., LTD. is founded in 2001 and is located at Suzhou City Jiangsu Province(we are the largest manufacturer in this line in Jiangsu) Our company has professional organization in manufacturing, sales and services of hydraulic lifting machinery and aerial working platform

We, Bestmax, have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and Africa
6m Platform Height Double Masts Semi Electric Vertical Lift with Tilting Function
Certificates
6m Platform Height Double Masts Semi Electric Vertical Lift with Tilting Function
 Factory Equipment
6m Platform Height Double Masts Semi Electric Vertical Lift with Tilting Function

Client &Exhibition
6m Platform Height Double Masts Semi Electric Vertical Lift with Tilting Function


Other Related Products
6m Platform Height Double Masts Semi Electric Vertical Lift with Tilting Function

Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
