Explosion-Proof Mining Wire Rope Electric Winch
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Type：Electric Winch
- Driven Type：AC
- Speed：Slow
- Carrying Capacity：Weight Level
- Tonnage：5T
- Reel Number：1
Base Info
- Model NO.：JM5
- Running Mode：Stationary
- Feature：Antiseptic, Insulating, Explosion-Proof
- Certification：CE
- Standard：National Standards
- Factory：China Coal
- Delivery Time：Within 5-7 Days After Receiving Your Payment
- Application：Metal Mine or Coal Mine or Construction
- Motor：380V or Customized
- Transport Package：Standard Wooden Case Packing
- Specification：CE, SGS
- Trademark：China Coal
- Origin：China
- HS Code：8425311000
- Production Capacity：1000 Sets Per Month
Description
ItemUnit 2JP(B) -7.5 2JP(B)-15 2JP(B)-22 2JP(B)-30 2JP(B) -55 Main Steel wire rope 's
average Pulling Force
(Not less than) KN 8 14 20 27.5 44 Main wire rope's
average speed
(Much or less than 5% ) m/s 1 1.1 1.2 1.2 1.2 Second wire rope's
average speed
(Much or less than 5% ) m/s 1 1.5 1.6 1.6 1.8 Steel wire
rope's
diameter Main wire rope
diameter mm 9.3 12.5 14 15.5 18.5 Second wire rope
diameter mm 9.3 11 11 14 16 Drum Diameter
(mm) 205 225 280 280 350 Rim diameter
(mm) 350 435 510 510 625 Width(mm) 80 125 510 160 180 Main drum rope capacity m 45 80 80 80 100 Second drum rope capacity m 45 100 100 110 130 Electric power Kw 7.5 15 22 30 55 rotate speed r/min 1440 1460 1470 1470 1470 Dimension Length mm 1210 1525 1600 1650 2070 Width mm 565 660 730 820 1010 Height mm 490 620 640 700 890 Weight KG 390 660 900 1155 2125 Overall size
(mm) Weight (kN) (m) fast
speed slow
speed (mm) power
(KW) voltage
(V) (kg) JZ-5/400 50 400 6 3 23 11 380/440 2375×1970
×1340 3140 JZ-10/600 100 600 6 3 31 22 380/440 3037×2570
×1770 6250 JZ-10/800 100 800 6 3 31 22 380/440 3342×2906
×1825 6500 JZ-16/800 160 800 6 3 40 30 380/440 3358×3200
×2240 11480 JZ-16/1000 160 1000 6 3 40 36 380/440 3508×3200
×2240 11700 JZ-25/1300 250 1300 6 3 52 45 380/440 3827×2623
×2500 14678 JZ-40/1300 200 1300 6 3 65 75 380/440 4596×4218
×2975 25000

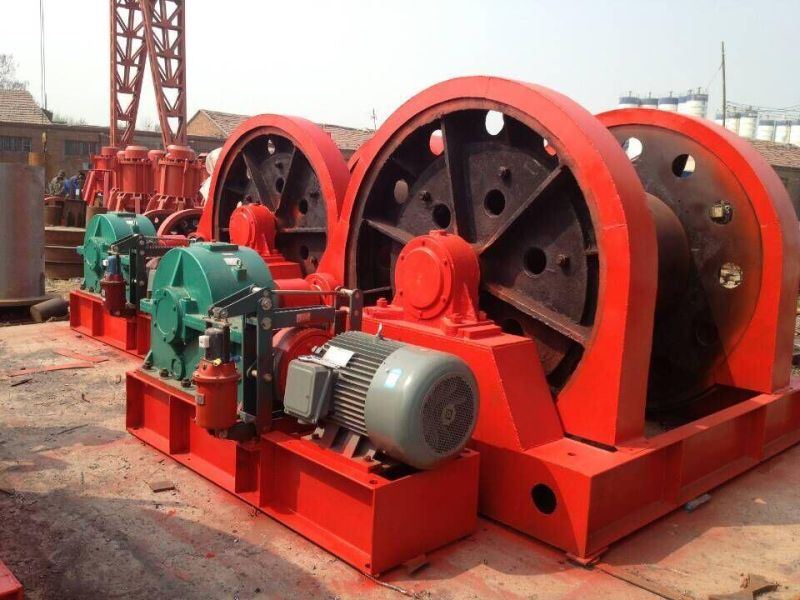

Pictures of JZ Electric Shaft Sinking Winch
