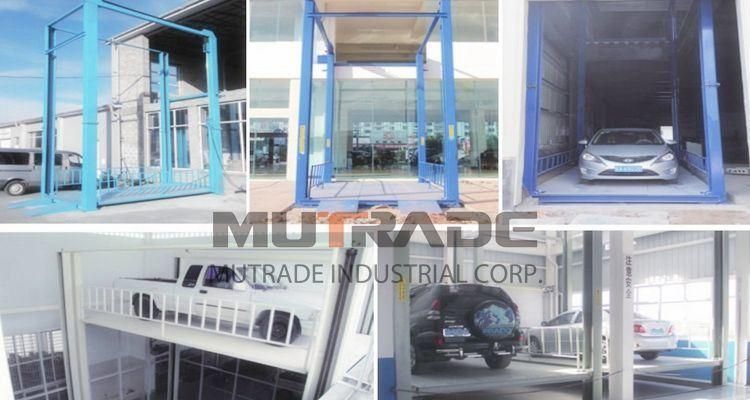

Economical Four Post Car Lift (FP-VRC)
Qingdao Mutrade Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Car Lift
- Lift Mechanism：Four Post Vertical Reciprocating Conveyor
- Carrying Capacity：Weight Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：FP-VRC

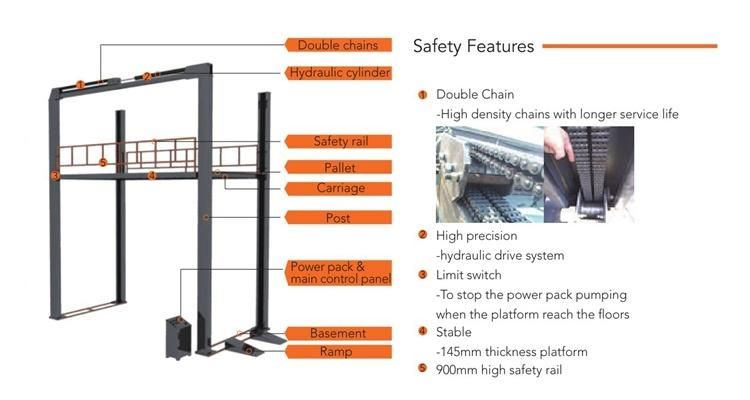

- Feature：Mechanical Anti-Falling Lock
- Certification：GS, CE, RoHS, ISO 9001
- Height (mm：4000 - 6000
- Width (mm)：2000 - 3500
- Length of Platfrom：4000-6000 mm (on Request)
- Width of Platform：2000 - 3500 mm (on Request)
- Lifting Height：2500 - 5000 mm (on Request)
- Capacity：2000 - 10000 Kg (on Request)
- Power Supply：380V 60Hz 3p
- Finished Treatment：Spray Paint
- Production Time：28 Days
- Warranty：5 Years Structure and 1 Year Part
- Transport Package：Standard Exporting Package
- Specification：CE,ISO9001
- Trademark：Muparking,OEM
- Origin：Qingdao, China
- HS Code：84289020
- Production Capacity：1000 Units,Month
Description
Packaging

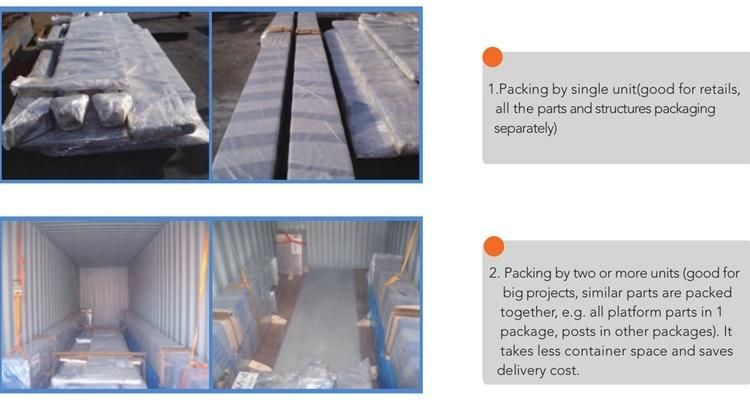

At MUTRADE, we offer professional steel frame packaging for easy and stable container load. There are 2 types of different packaging:
Q & A
1. Is this product can be used indoor or outdoor?
FP-VRC can be installed both indoor and outdoor as long as the site dimensions are enough.
2. What is the surface fnishing for this product?
It's paint spray as standard treatment, and optional aluminum steel sheet can be covered above for better water-proof and
looking.
3. What is the power requirements? Is single phase acceptable?
Generally speaking, a 3-phase power supply is a must for our 4Kw motor. If the usage frequency is low (less than one
movement per hour), a single phase power supply can be used, otherwise it may lead to motor burnt out.
4. Can this product still operate if electricity failure happens?
Without electricity the FP-VRC cannot work, so a back-up generator may be needed if electricity failure happens often in
your city.
5. What is the warranty?
It's fve years for main structure and one year for moving parts.
6. What is the production time?
It's 30 days after prepayment and fnal drawing confrmed.
7. What is the shipping size? Is LCL acceptable, or it must be FCL?
As FP-VRC is a fully customized product, the shipping size depends on the specifcations you need.
As there are some electrical parts and hydraulic parts, and the packages for components are in different shapes, LCL cannot
be used. 20 feet or 40 feet container is necessary as per the lifting height.
Our Company
Qingdao Mutrade Co., Ltd. is one of the earliest professional mechanical parking equipment providers in China. We are committed to provide the most suitable and cost-effective parking equipment to our clients all over the world. We warmly welcome your visit.
Certifications
We have different certifcates for different markets.
Our Services
1. Three years guarantee for the whole machine and ten years for main structure.
2. Calling door to door service
3. Friendly English software, user manual or detailed drawing/CD.
4. To meet different user purposes, we provide customized service. Lifting capacity, lifting height, dimension of platform, color and so on is necessary. But, only quantities of order are available.
