• Model NO.：SJD
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Material：High Strength Steel
• Drive System：Hydraulic
• Control Method：Remote,Button Control
• Load Capacity：2500kg,Customized
• Lifting Height：1800mm
• Platform Size：5800*2800mm
• Lifting Speed：100mm,s
• Usage：Garage, Parking Lot
• Color：Pls Tell Us
• Warranty：12 Month
• Transport Package：Standard Plywood Packaging
• Specification：15CBM, 2000kg
• Trademark：MORAL
• Origin：Jinan, Shandong, China
• HS Code：842890
• Production Capacity：130set, Month

Basic Info.

Model NO. SJD Feature Explosion-Proof Certification CE, ISO 9001 Material High Strength Steel Drive System Hydraulic Control Method Remote/Button Control Load Capacity 2500kg/Customized Lifting Height 1800mm Platform Size 5800*2800mm Lifting Speed 100mm/s Usage Garage, Parking Lot Color Pls Tell Us Warranty 12 Month Transport Package Standard Plywood Packaging Specification 15CBM, 2000kg Trademark MORAL Origin Jinan, Shandong, China HS Code 842890 Production Capacity 130set/ Month

Product Description

Garage Parking System Four Post Car Lift


Four post vertical car lift platform is used for transfer car between different floors. Self-height is about 150-300mm. This platform can install on the ground directly or make one pit. Hydraulic driven, steady working and simple operate.  Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.This machine can be installed for through-floor, interior or exterior applications. The principle components of machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.




Parameters

Model	SJD5-4
Load capacity	5000KG
Platform size	5800*2800mm
Lifting height	4000mm
Speed	100mm/s
Power	5.5kw
Power supply	AC 220V/380V 50Hz/60Hz
Weight	2000KG

Specifications
1.verticle hydraulic car parking system can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof  lock valve to avoid a sudden drop if emergency occurs.
2.The limit switch system helps the lift to stop at accurate position.
3.The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car.
4.Emergency button is available on each control box, when emergency occurs, the immediate stop can be realized.
5.control system adopt elevator control system,very convenient and safety.
6.Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design a suitable lift for you soon.

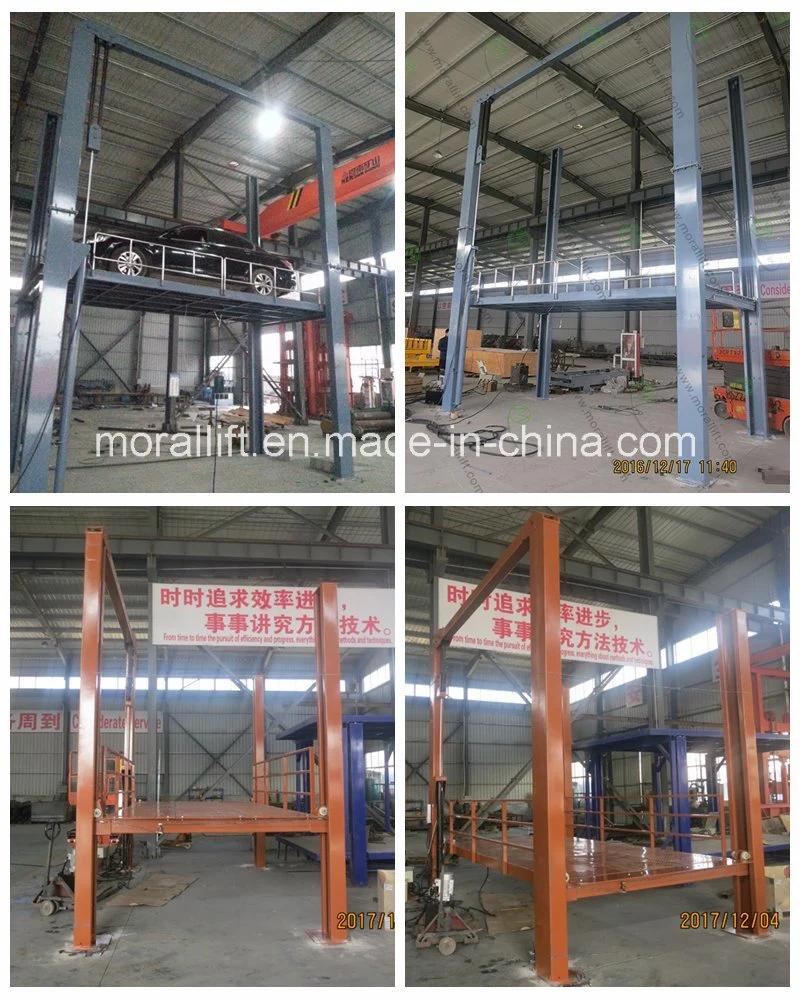

Product show

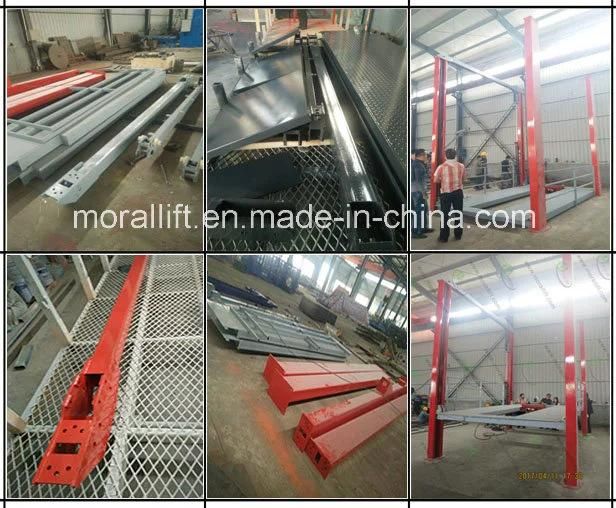

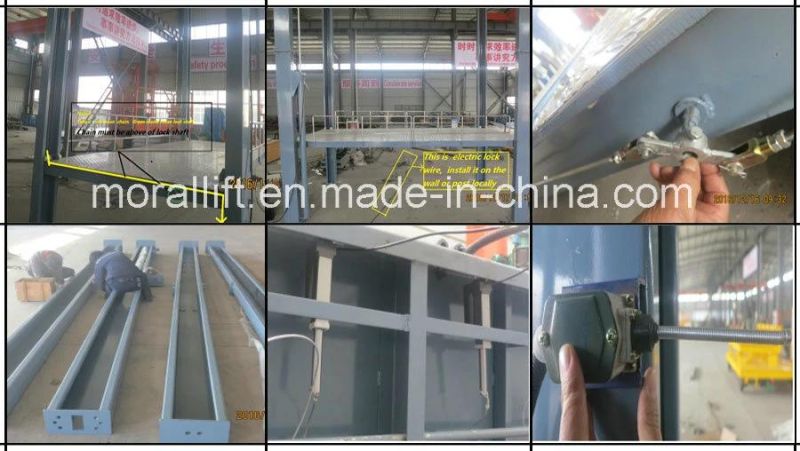

Details




After sales
1. User-friendly English manual for machine installation using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.

Our Services
1. All the machines will b full tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.

FAQ
1. MOQ?-1 set
2. Delievery time?-usually within 15-20 working days upon receipt of payment.
4. Trade term? ( FOB/CFR/CIF to your nearest seaport)
5. Working Height?-according to your need
6. Platform Size?-according to your need
7. load capacity?-according to your need
8. Demand power source?-electric or battery, per your need
9. OEM?-accepted

Company info
Welcome to Moral Lift, we are professional manufacturer of FOUR POST CAR LIFT with good quality and low price, our promise: Quality first, Customer above.

WHY CHOOSE US
1. Professional design drawing for the confirmation in case of any misunderstanding.
2. All products will be produced strictly according to CE quality management system.
3. Every lead rail lift must be tested before delivery,100% qualified.
4. Detailed rust-removing and powder painting process.
5. 5 years warranty for main structure and 1 year warranty for electrical parts.
