Lifting Equipment

Hydraulic Driven Scissor Lifting Table for Workshop

Jinan Moral International Co., Ltd.
  • Application:Workshop Crane, Warehouse Crane, Building Crane
  • Lift Mechanism:Scissor Lift
  • Carrying Capacity:Light Level
  • Moves:Stationary
  • Driven Type:Hydraulic
  • Running Mode:Stationary

Base Info

  • Model NO.:SJG
  • Feature:Explosion-Proof, Easy Operation Safety Convenient
  • Certification:CE, ISO 9001
  • Material:High Strength Steel
  • Control Method:Button,Remote Control
  • Load capacity:1000kg,customized
  • Lifting height:1000mm,customized
  • Platform size:3000*2000mm,customized
  • Lifting Speed:80-100mm,s
  • Warranty:5 years for main structure, 1 year for parts
  • Power:3.0kw
  • Colour:Blue,Yellow etc
  • Usage:Indoor & Outdoor
  • Transport Package:Standard Export Package
  • Specification:6CBM
  • Trademark:MORAL
  • Origin:Shandong, China
  • HS Code:842890
  • Production Capacity:200set,Month

Description

Basic Info.

Model NO. SJG Feature Explosion-Proof, Easy Operation Safety Convenient Certification CE, ISO 9001 Material High Strength Steel Control Method Button/Remote Control Load capacity 1000kg/customized Lifting height 1000mm/customized Platform size 3000*2000mm/customized Lifting Speed 80-100mm/s Warranty 5 years for main structure, 1 year for parts Power 3.0kw Colour Blue/Yellow etc Usage Indoor & Outdoor Transport Package Standard Export Package Specification 6CBM Trademark MORAL Origin Shandong, China HS Code 842890 Production Capacity 200set/Month

Product Description

Hydraulic Driven Scissor Lifting Table for Workshop

Main Features
Load capacity:1000kg/customized
Platform size:3000*2000mm/customized, Diamond steel sheet metal
Lifting height:1000mm/customized
Hydraulic drive system
Elevator controls system
Structure: high-strength Mn steel
Power supply:220 VAC, 3 Phases 60 Hz/ local power
Total capacity: 2000 kilograms
Stops with limit switch control system


Hydraulic Driven Scissor Lifting Table for Workshop


Safety
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs;
2) The safe rails to guarantee safety of the car above platform;
3) The limit switch system helps the car lift to stop at accurate position;
4) Electricity leakage protection device is equipped on, all electric components are CE certified;
5) All the Hydraulic scissor car lift are passed 1.2 times loading test before leaving factory.


Parameters
ModelSJG
Load capacity1000KG/customized
Platform size3000*2000mm/customized
Lifting height1000mm/customized
Speed80-100mm/s
Power3.0kw
Power supplyAC220V
Weight2000KG

Specifications
1)The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden  drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car.
2) the handrail to guarantee safety of car.
3) equipped with 4 guide rails to ensure safety and steady.
4) the limit switch system ensure lifts stop at accurate position.
5) overload protection facility is equipped on, the lift will not work when goods is overloaded.
6) Electric control system adopt elevator system from Japan Mitsubishi ensure safety.
7) guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.

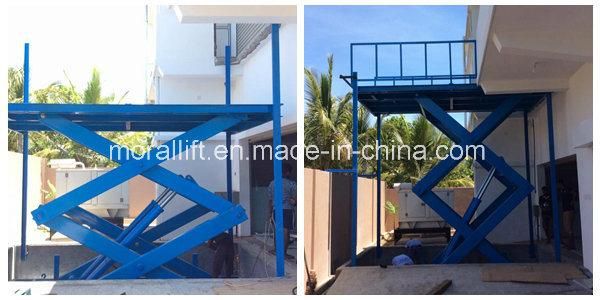

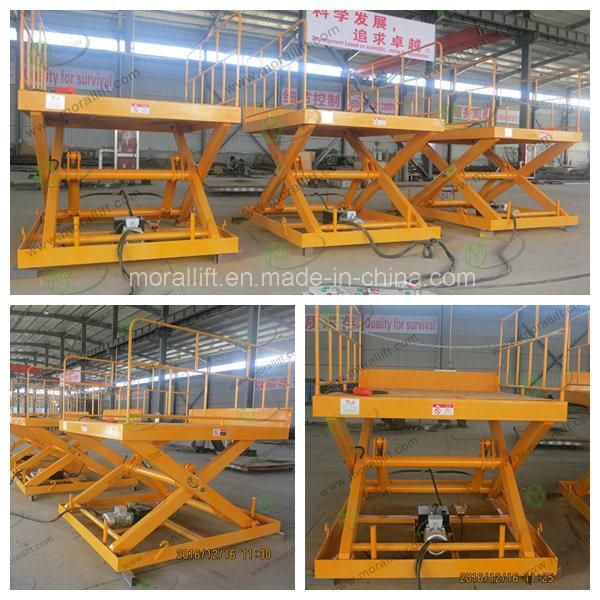

Product show


Hydraulic Driven Scissor Lifting Table for Workshop

Hydraulic Driven Scissor Lifting Table for Workshop

Hydraulic Driven Scissor Lifting Table for Workshop

After sales
1. User-friendly English manual for machine installation using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.


Our Services
1. All the machines will b full tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.


FAQ
1. MOQ?-1 set
2. Delievery time?-usually within 15-20 working days upon receipt of payment.
4. Trade term? ( FOB/CFR/CIF to your nearest seaport)
5. Working Height?-according to your need
6. Platform Size?-according to your need
7. load capacity?-according to your need
8. Demand power source?-electric or battery, per your need
9. OEM?-accepted


Company info
Welcome to Moral Lift, We are professional manufacturer of SCISSOR LIFT TABLE with good quality and reasonable price. our promise, quality first, customer above. we have fine equipment, advanced technology and complete testing equipment. pls tell us the load capacity, lifting height, platform size you need, we can customize for you.

Hydraulic Driven Scissor Lifting Table for Workshop
