• Model NO.：SJG
• Feature：Explosion-Proof
• Certification：CE
• Material：High Strength Steel
• Drive System：Hydraulic
• Control Method：Button,Remote Control
• Load Capacity：2000kg,Customized
• Platform Size：2500*4000mm,Customized
• Lifting Height：3600mm,customized
• Lifting Speed：100mm,s
• Power：11kw
• Usage：Factory, Institution, Shopping etc
• Color：Pls tell us
• Transport Package：Standard Export Package
• Specification：10CBM
• Trademark：MORAL
• Origin：Jinan, Shandong, China
• HS Code：842890
• Production Capacity：35set,Week

Basic Info.

Model NO. SJG Feature Explosion-Proof Certification CE Material High Strength Steel Drive System Hydraulic Control Method Button/Remote Control Load Capacity 2000kg/Customized Platform Size 2500*4000mm/Customized Lifting Height 3600mm/customized Lifting Speed 100mm/s Power 11kw Usage Factory, Institution, Shopping etc Color Pls tell us Transport Package Standard Export Package Specification 10CBM Trademark MORAL Origin Jinan, Shandong, China HS Code 842890 Production Capacity 35set/Week

Product Description

Hot Sale Hydraulic Motorcycle Lift Table

The scissor lift tables are very versatile, mainly features: Electrical hydraulic drive, cost-efficient, rugged and safe. And can be used for
• compensating differences in height
• loading and unloading
• material delivery

MAIN FEATURE
Load capacity: 2000KG/customized
Platform size: 2500*4000mm/customized
Lifting height: 3600mm/customized
Hydraulic drive system
Elevator controls system
Structure: High-strength Mn steel
Power supply: 220/380V, AC, 3 Phases 60 Hz/ local power
Total capacity: 1800kilograms
Diamond steel sheet metal
Stops with limit switch control system

Scissor lift tables are industrially manufactured. They can be designed and built to customer specification. A sturdy frame ensures good stability. The scissors are made of high-grade steel (rods, plates and hollow section profiles).

The lift table are equipped with maintenance-free journal bearings. The travel range is restricted both by electrical control (limit switch) and a mechanical stop on the cylinder. Self-aligning ("floating") journal bearings. Cylinder with long piston bearings, hard chrome-plated piston rod; End position damping on request.

Operating voltage options: 230/400 V, 50 Hz. Hydraulic pump with spherical seat valve, pressure limiting valve, oil flow limiting valve (hose rupture protection). Controller with dead man's circuit, push button switch, control and power cables approx. 3 m long, with limit switch; Control switch or special control system on request.

PARAMETERS

Model	SJG2-3.6
Load capacity	2000KG/customized
Platform size	2500*4000mm
Lifting height	3600mm
Speed	80-100mm/s
Power	2.2kw
Power supply	AC 380V/220V/local power
Weight	1800KG

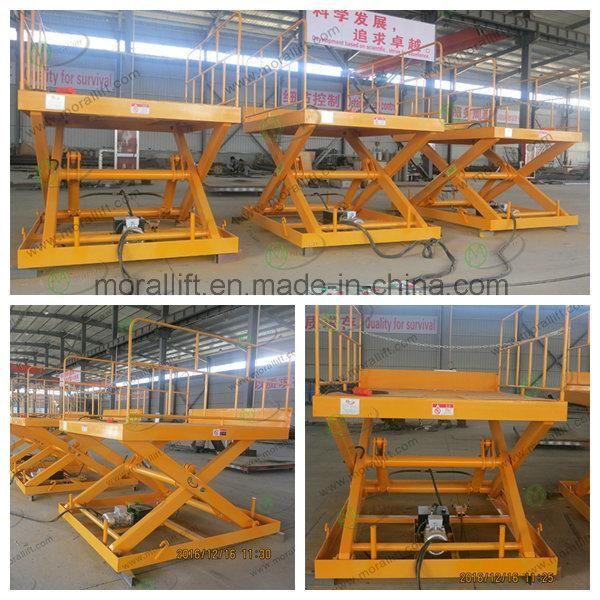

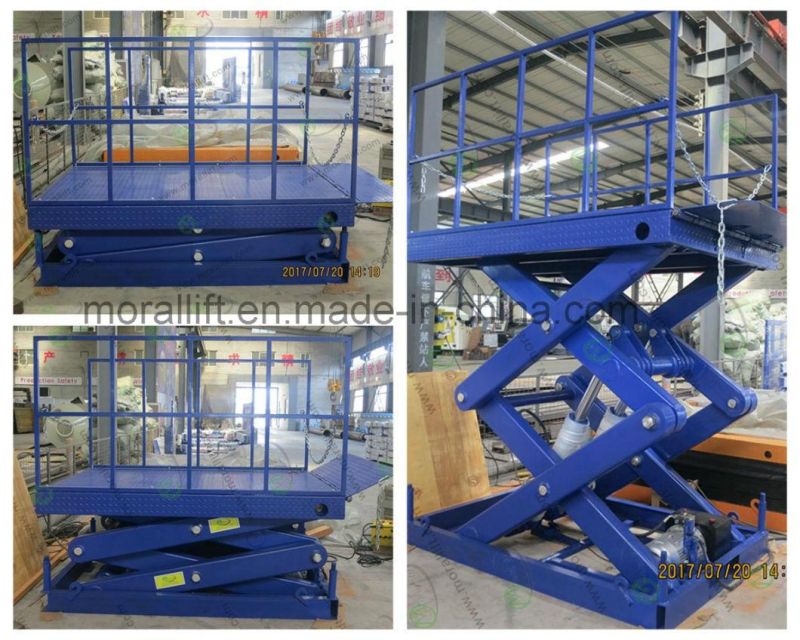

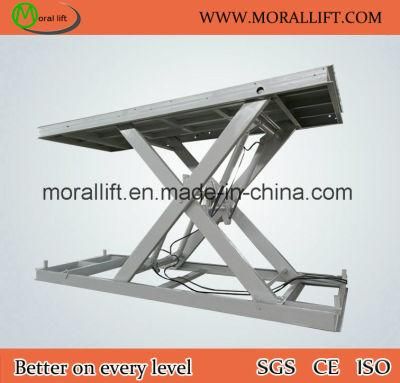

PRODUCT SHOW




AFTER SALES
1. User-friendly English manual for machine installation using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4.24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.

FAQ
1. MOQ? -1 set
2. Delievery time? -usually within 15-20 working days upon receipt of payment.
4. Trade term? ( FOB/CFR/CIF to your nearest seaport)
5. Working Height? -according to your need
6. Platform Size? -according to your need
7. Load capacity? -according to your need
8. Demand power source? -electric or battery, per your need
9. OEM? -accepted

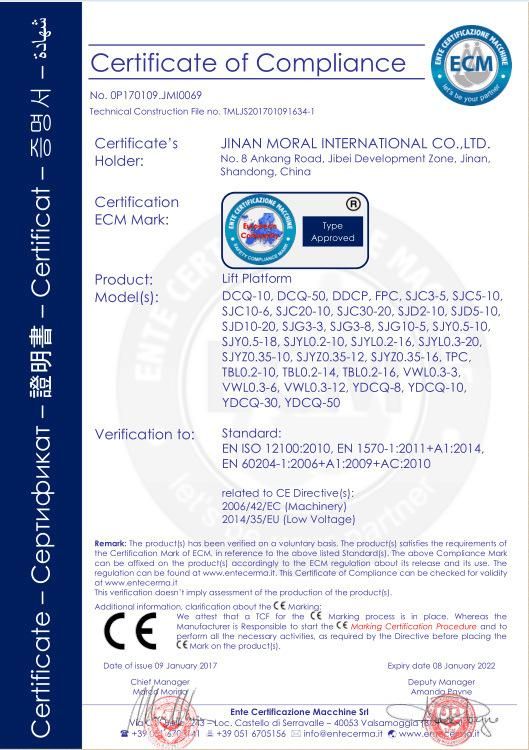

CE CERTIFICATION


OUR SERVICE
1. All the machines will b full tested before shipment.
2. The total machine guarantee for 12 months.
3.24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.

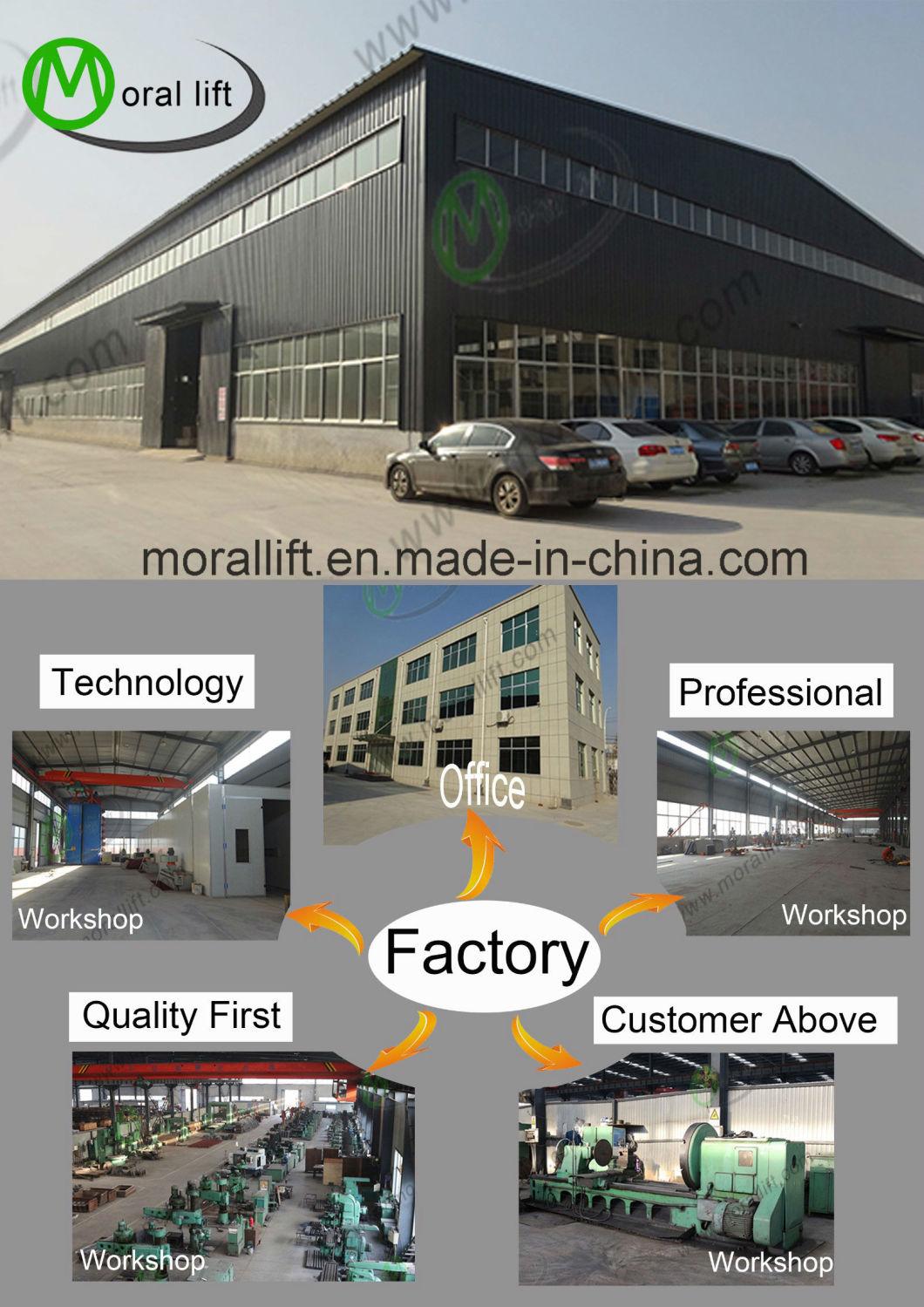

COMPANY INFO
Welcome to Moral Lift, we are professional manufacturer of LIFT TABLE with good quality and low price, our promise: Quality first, Customer above. we often export to Europe, America, Australia etc, we provide the best quality for every customer. Our products can be customized according to clients' requirements, we will do better on every level!




Pls tell us the load capacity, lifting height, platform size you need, we can customize for you.

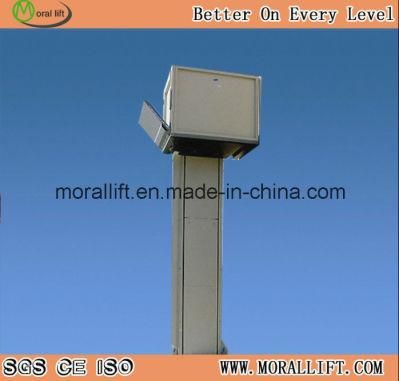

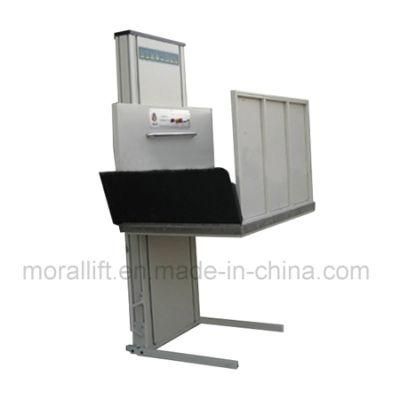

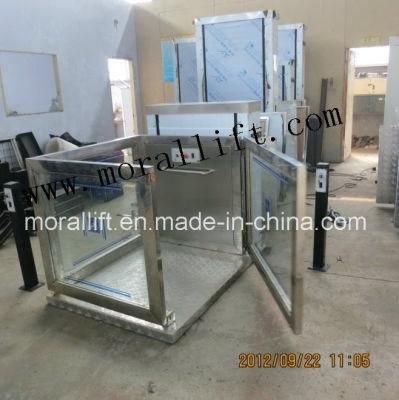

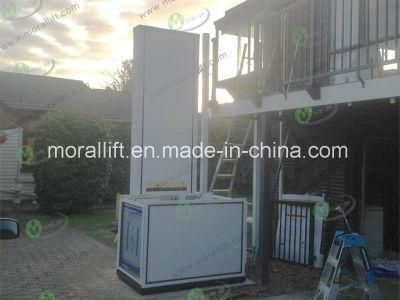

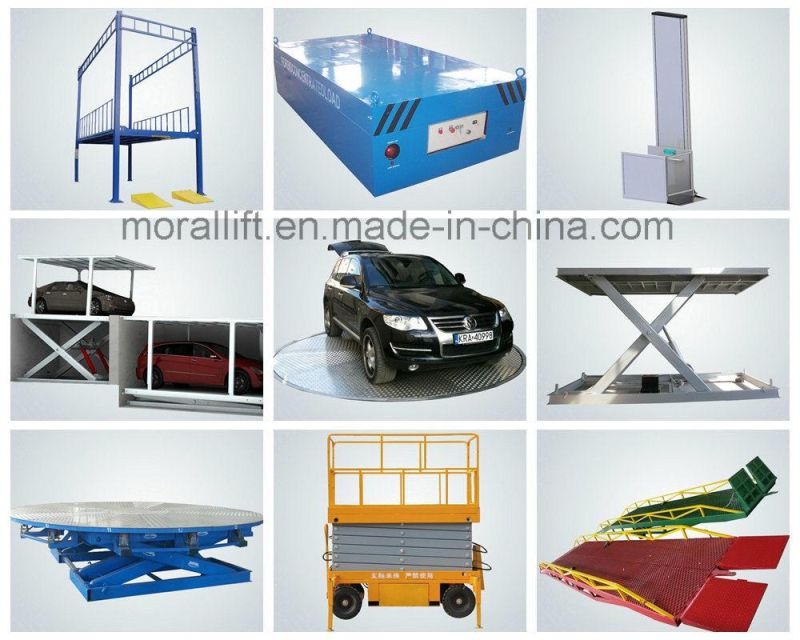

OTHER PRODUCTS YOU MAY LIKE
