Hydraulic Scissor Lifter Cargo Lift for Factory
Jinan Moral International Co., Ltd.- Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Shopping, Factory
- Lift Mechanism:Scissor Lift
- Carrying Capacity:Middle-Level
- Moves:Stationary
- Driven Type:Hydraulic
- Running Mode:Stationary
Base Info
- Model NO.:SJG
- Feature:Explosion-Proof
- Certification:CE
- Control Method:Button,Remote Control
- Material:High Strength Steel
- Drive System:Hydraulic
- Lifting Speed:100mm,s
- Platform Size:3600*2000mm,Customized
- Lifting Height:4800mm,customized
- Load Capacity:2000kg,Customized
- Power:5.5kw
- Usage:Factory, Institution, Shopping etc
- Color:Pls tell us
- Transport Package:Standard Export Package
- Specification:10CBM
- Trademark:MORAL
- Origin:Jinan, Shandong, China
- HS Code:842890
- Production Capacity:105set,Month
Description
Basic Info.
Model NO. SJG Feature Explosion-Proof Certification CE Control Method Button/Remote Control Material High Strength Steel Drive System Hydraulic Lifting Speed 100mm/s Platform Size 3600*2000mm/Customized Lifting Height 4800mm/customized Load Capacity 2000kg/Customized Power 5.5kw Usage Factory, Institution, Shopping etc Color Pls tell us Transport Package Standard Export Package Specification 10CBM Trademark MORAL Origin Jinan, Shandong, China HS Code 842890 Production Capacity 105set/MonthProduct Description
Hydraulic Scissor Lifter Cargo Lift for FactoryMain feature
1. The stationary scissor lift platform is generally used for lifting cargo and people to working place. Loading and unloading goods from ground to underground or to other floors.
2. It is characterized by great loading capacity.
3. Hydraulic lift system steady ascending and descending.
4. Electric or manual drive.
5. The scissor lift is heavy-carrying.
6. Lift tables are suitable for factory, institutions, shopping, garages, warehouse and other industries.
Parameter
Type | Mix height (mm) | Rises height (mm) | Raise weight (kg) | Platform size (mm) | Power (KW) | Weight (KG) |
SJG4.5-3.5 | 760 | 3500 | 4500 | 4000*2000 | 5.5 | 4500 |
SJG2-4.8 | 700 | 4800 | 2000 | 3600*2000 | 5.5 | 3800 |
SJG5-5.4 | 950 | 5400 | 5000 | 5000*1600 | 7.5 | 6000 |
SJG3-7.2 | 860 | 7200 | 3000 | 5500*3000 | 11 | 8870 |
SJG0.5-5 | 850 | 5000 | 500 | 2000*1000 | 2.2 | 1200 |
SJG1-3.3 | 840 | 3300 | 1000 | 1900*1500 | 3 | 1300 |
SJG1-4.3 | 860 | 4300 | 1000 | 2500*2500 | 1.5 | 2500 |
SJG1-6 | 1230 | 6000 | 1000 | 2200*1500 | 2.2 | 2500 |
SJG2-3.5 | 1000 | 3500 | 2000 | 2200*1500 | 2.2 | 1800 |
SJG2-4.5 | 1070 | 4500 | 2000 | 1600*1600 | 4 | 2500 |
SJG2-6.8 | 1400 | 6800 | 2000 | 2550*2200 | 4 | 3300 |
Specification
1)The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety.
2) the handrail to guarantee safety .
3) equipped with 4 guide rails to ensure safety and steady.
4) the limit switch system ensure lifts stop at accurate position.
5) overload protection facility is equipped on, the lift will not work when goods is overloaded.
6) Electric control system adopt elevator system from Japan Mitsubishi ensure safety.
7) guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.

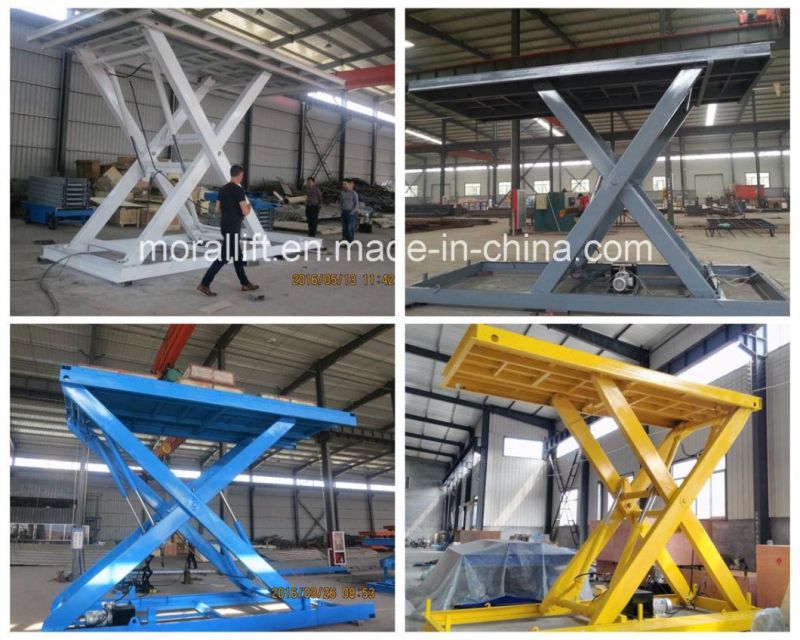

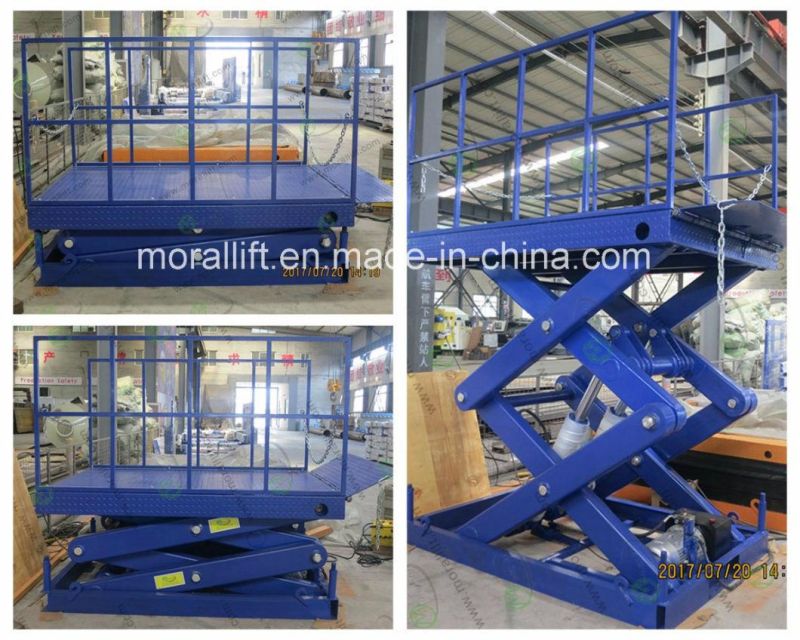

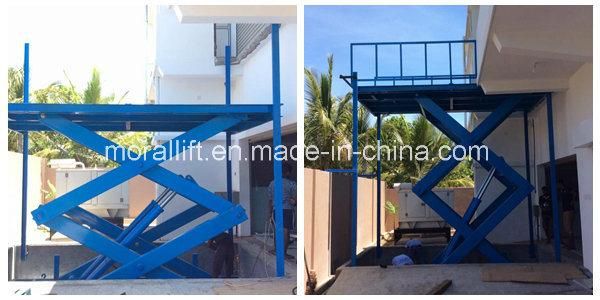

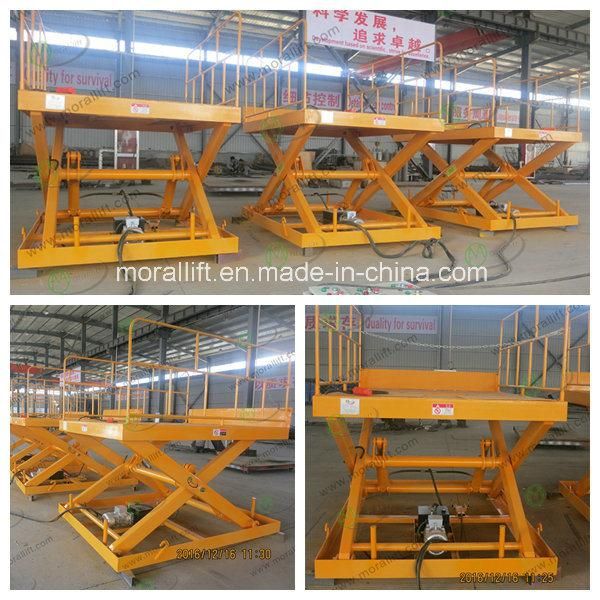

Product show
After sales
1. User-friendly English manual for machine installation using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.
Our Services
1. All the machines will b full tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.
FAQ
1. MOQ?-1 set
2. Delivery time?-usually within 15-20 working days upon receipt of payment.
4. Trade term? ( FOB/CFR/CIF to your nearest seaport)
5. Working Height?-according to your need
6. Platform Size?-according to your need
7. load capacity?-according to your need
8. Demand power source?-electric or battery, per your need
9. OEM?-accepted
Company info
Welcome to Moral Lift, we are professional manufacturer of SCISSOR LIFTER with good quality and low price.Our promise: Quality first, Customer above. we have fine equipment, advanced technology and complete testing equipment.
You may like
Pls tell us the load capacity, lifting height and platform size you need, we can customize for you!!
We are looking forward to establishing friendly relationship with you from all over the world!!
Contact us with no hesitation!!
